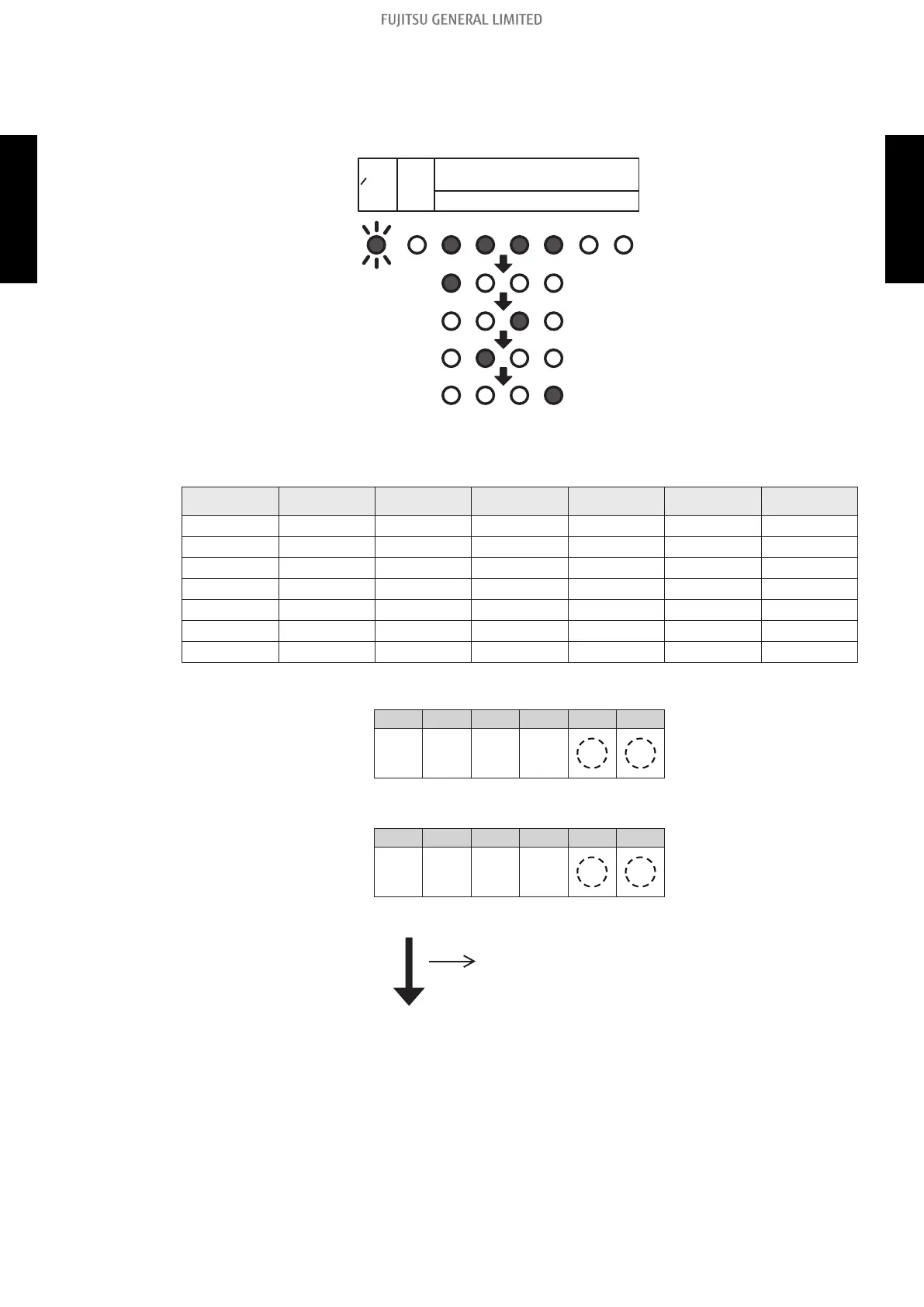

[How to record the contents]
• Fill the displayed results according to the following example.
Example: When piping A to D is connected but the wires for B and C are connected in reverse.
<Displayed results>
The LEDs will light up in 7 second intervals in the following order.
FEDC
MONITOR
ERROR
BA
POWER
MODE
(2-blink)
(7 sec.)
(7 sec.)
(7 sec.)
(7 sec.)
<Example of result table>
a. Please write a ● where the LEDs light up in the order that they light up.
A B C D E F
1 ● ● ● ● ◌ ◌
2 ● ◌ ◌ ◌ ◌ ◌
3 ◌ ◌ ● ◌ ◌ ◌
4 ◌ ● ◌ ◌ ◌ ◌
5 ◌ ◌ ◌ ● ◌ ◌
6 ◌ ◌ ◌ ◌ ◌ ◌
7 ◌ ◌ ◌ ◌ ◌ ◌
b. Based on the results of step (a), please record as follows.
• Trace the dotted circle with a pen if multiple places light up.
A B C D E F
   
• Write the order from A to D in which the LEDs lit up inside the circle.
A B C D E F
   
A
B
C
D
c. Select the correction method.
Correct the wiring manually.*2
Proceed to step 6.
Use the Automatic wiring correction function.*1
Proceed to step 5.
Write down the same results in the label on the reverse side of the service panel.
The results recorded are needed at the time of servicing.
- 310 -
14-1. Check run 14. Check and test
OUTDOOR UNIT AOU45RLXFZ OUTDOOR UNIT AOU45RLXFZ
