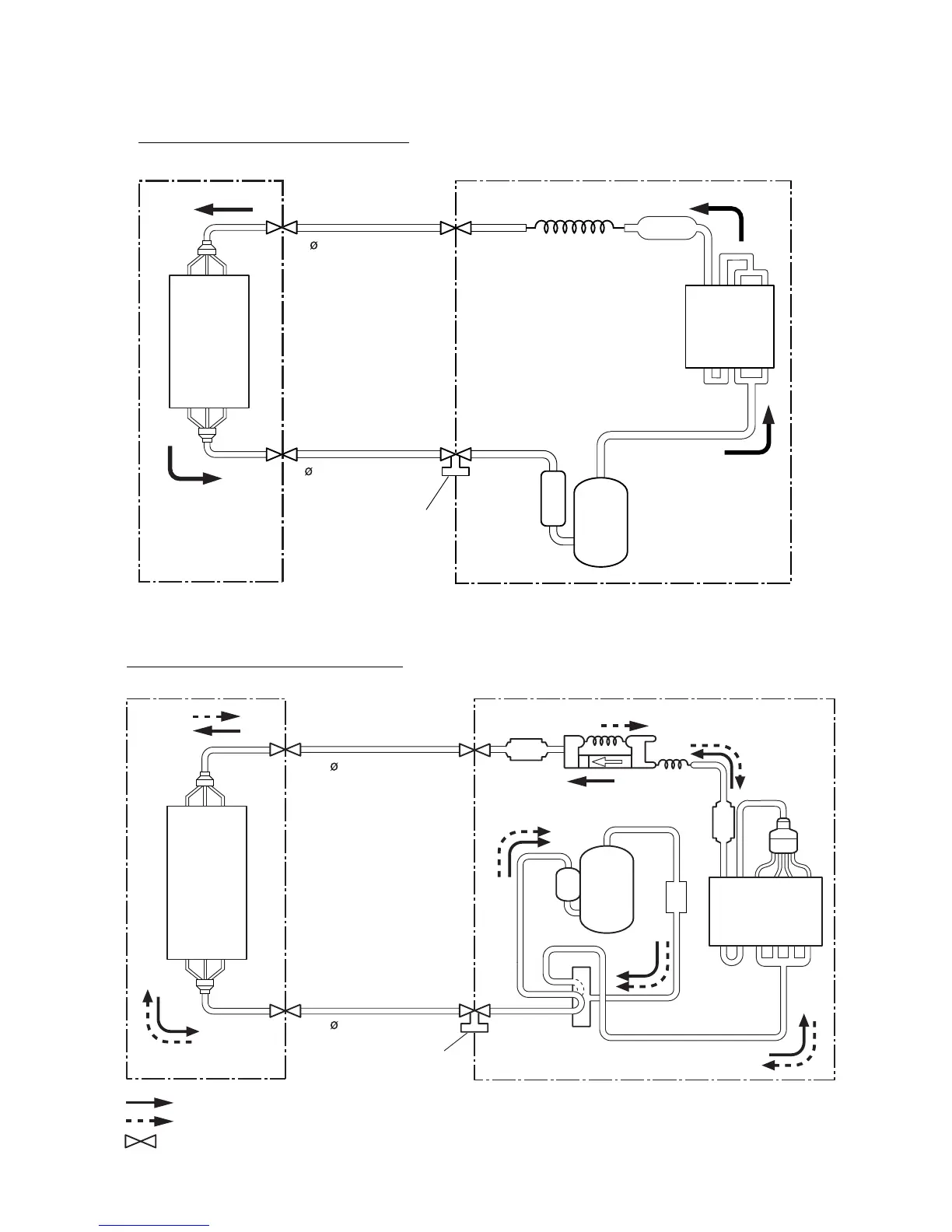

REFRIGERANT SYSTEM DIAGRAM
ASY17FSCQ / AOY17FNBN
Models : ASY17FSBQ / AOY17FNBK
Refrigerant pipe
12.70 mm (1/2")
Refrigerant pipe
6.35 mm (1/4")
Charging valve
Distributor
Distributor
Distributor
Distributor
INDOOR UNIT
Evaporator
Capillary tube
Compressor
Strainer
OUTDOOR UNIT
ASY17USCQ / AOY17UNBN
Models : ASY17USBQ / AOY17UNBK
Cooling
Heating
Flare coupling
Refrigerant pipe
12.70mm(1/2")
Refrigerant pipe
6.35mm(1/4")
INDOOR UNIT
Strainer
Strainer
Charging valve
4-Way
valve
Compressor
Capillary
tube
OUTDOOR UNIT
Condenser
Distributor
Muffler
Condenser
Evaporator
32005.02.16
