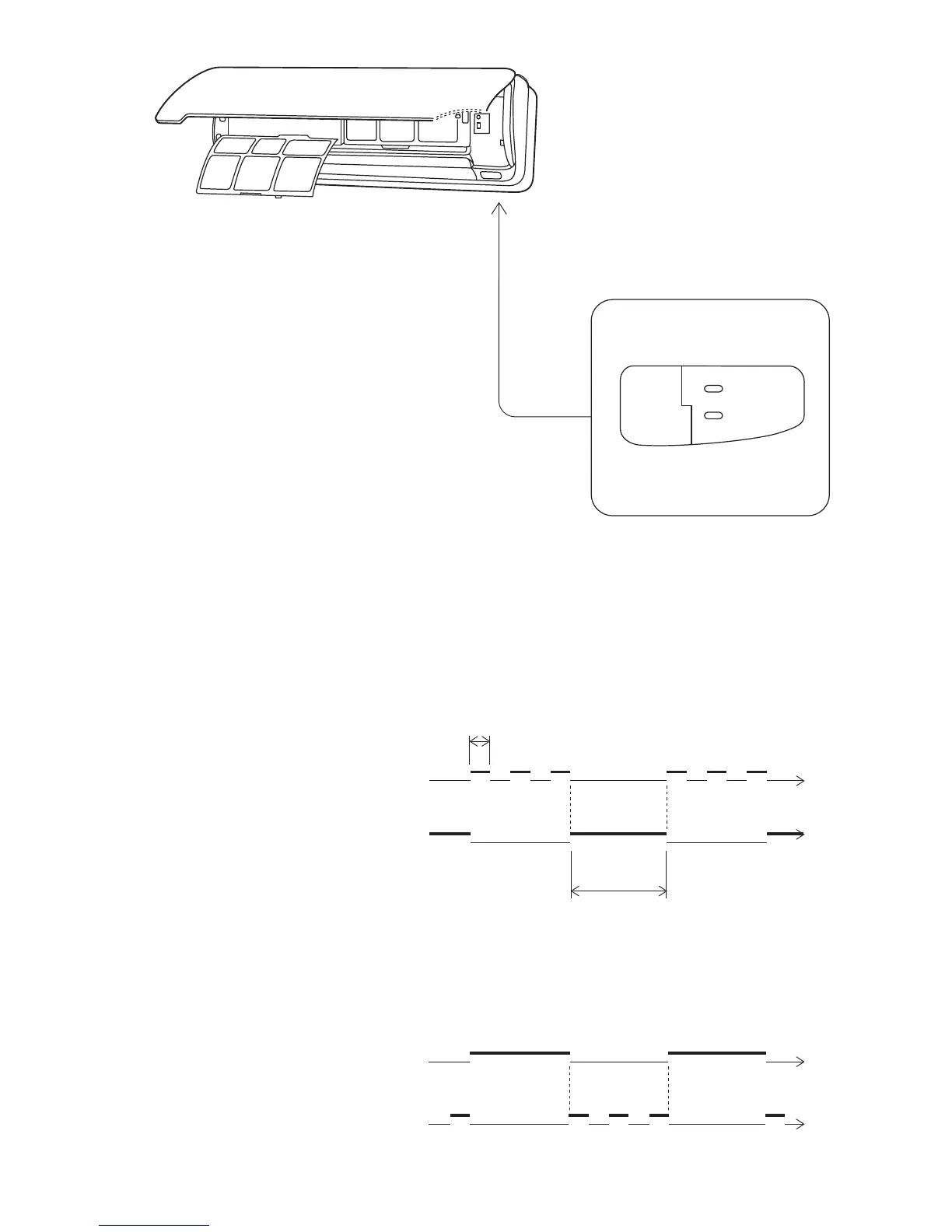

FAILURE DETECTION
Room thermistor failure
Indoor unit
heat exchanger thermistor failure
Operation lamp
Timer lamp
Operation lamp
Timer lamp
Room thermistor failure
Indoor unit
heat exchanger thermistor failure
Operation lamp : 3 flash
Timer lamp : 3 flash
on
on
on
off
off
on
off
0.5 sec
0.1 sec
off
TIMER
OPERATION
8
10
Table of Contents
Table of Contents
1
Wall Mounted
1
Specifications
2
Outline and Dimensions
3
Refrigerant System Diagram
4
Circuit Diagram
5
Pcb Circuit Diagram
7
Failure Detection
9
Disassembly Illustration
10
Parts List
16
Standard Accessories
18
