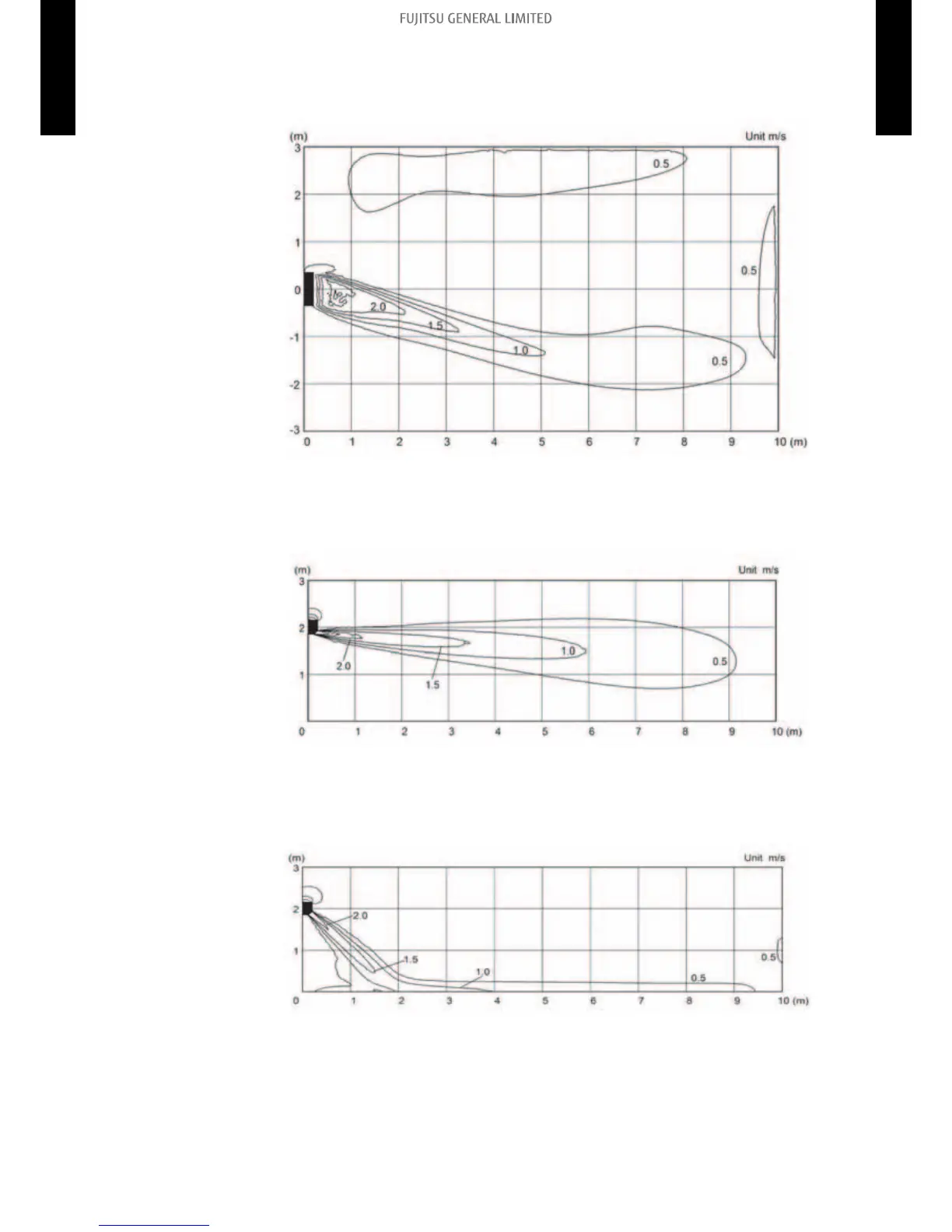

Top view
ertical airflow direction louver: Up
Horizontal airflow direction louver: Right
Side view
ertical airflow direction louver: Up
Horizontal airflow direction louver: Center
Side view
ertical airflow direction louver: Up
Horizontal airflow direction louver: Center
- 11 -
5-1. Air velocity distributions 5. Fan performance
WALL MOUNTED
ASYA09-12KLWA
WALL MOUNTED
ASYA09-12KLWA
