Fujitsu ASYA09KLWA User Manual

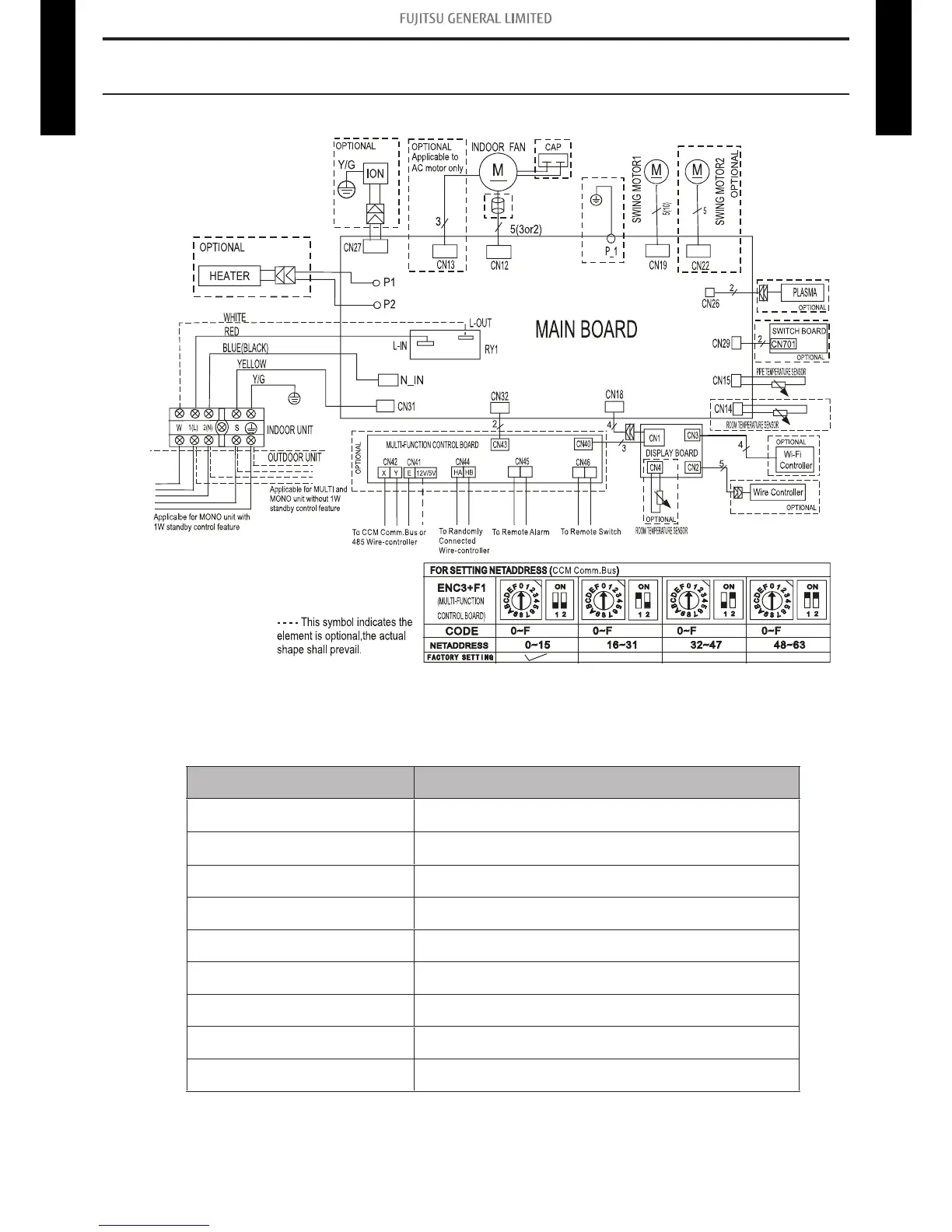

3. Wiring diagrams
3-1. Models: ASYA09KLWA and ASYA12KLWA
Abbreviation Paraphrase
Y/G Ground Connection
ION Positive and Negative Ion Generator
CAP Capacitor
PLASMA Electronic Dust Collector
L LIVE
N NEUTRAL
Heater The Electric Heating Belt of Indoor Unit
T1 Indoor Room Temperature
T2 Coil Temperature of Evaporator
- 5 -
3-1. Models: ASYA09KLWA and ASYA12KLWA 3. Wiring diagrams
WALL MOUNTED ASYA09-12KLWA WALL MOUNTED ASYA09-12KLWA
