8. Remote controller
8-1. Wireless remote controller
¢

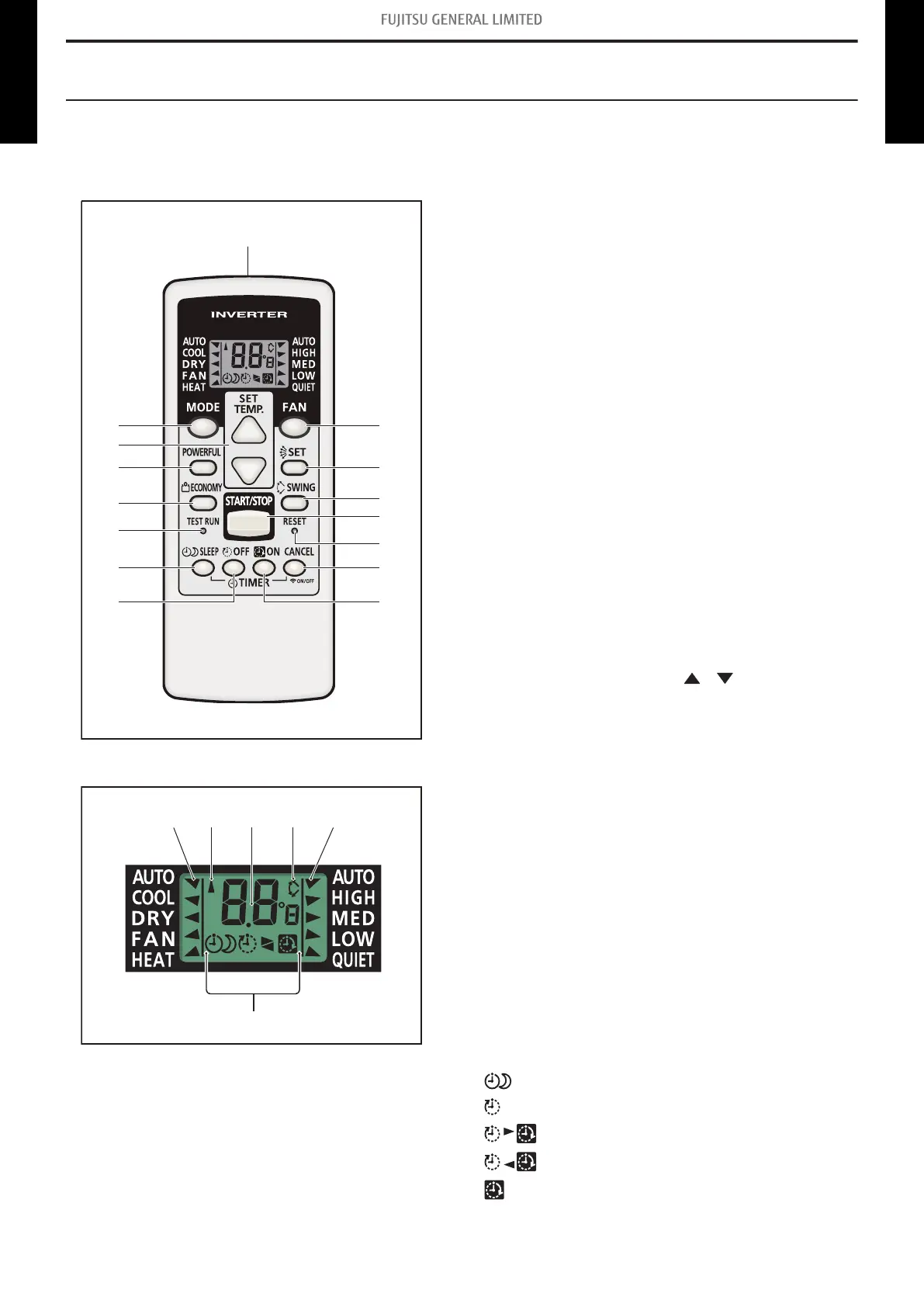

Overview
o
b
d
e
f
a
c
g
i
j
k
l
n
m
h
Display panel
u
r s
p tq
NOTE:
Functions may differ by type of the in-
door unit. For details, refer to the op-
eration manual.
a
FAN button
b SET button
c SWING button
d START/STOP button
e RESET button
f TIMER CANCEL/W-LAN ON/OFF button
g ON TIMER/W-LAN SET button
h OFF TIMER button
i SLEEP TIMER button
j TEST RUN button
• Used only when installing the air conditioner, and should
not be used under normal conditions, as it will cause the in-
door unit’s thermostat malfunction.
• If this button is pressed during normal operation, the indoor
unit will switch to test operation mode, and the operation in-
dicator lamp and the timer indicator lamp on the indoor unit
will begin to flash simultaneously.
• To stop the test operation mode, press the START/STOP
button. Then, the air conditioner stops the operation.
k ECONOMY button
l POWERFUL button
m
SET TEMP. (temperature) (
/ ) button
• Sets desired temperature.
• Sets remote controller custom code.
n MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN, and
HEAT).
• Starts/ends the remote controller custom code (max. 4
types) change.
o Signal transmitter
p Operating mode indicator
q Signal transmit indicator
r Temperature and time indicator
• Displays set temperature.
• In timer setting, it displays the timer time. After finishing the
timer setting, set temperature will reappear.
s Swing indicator
t Fan speed indicator
u Timer mode indicator
•
Sleep timer
•
OFF timer
•
OFF-ON timer
• ON-OFF timer
• ON timer
- 16 -
8-1. Wireless remote controller 8. Remote controller
WALL MOUNTED ASYG07-12KPCA WALL MOUNTED ASYG07-12KPCA
