5. CONTROL SYSTEM

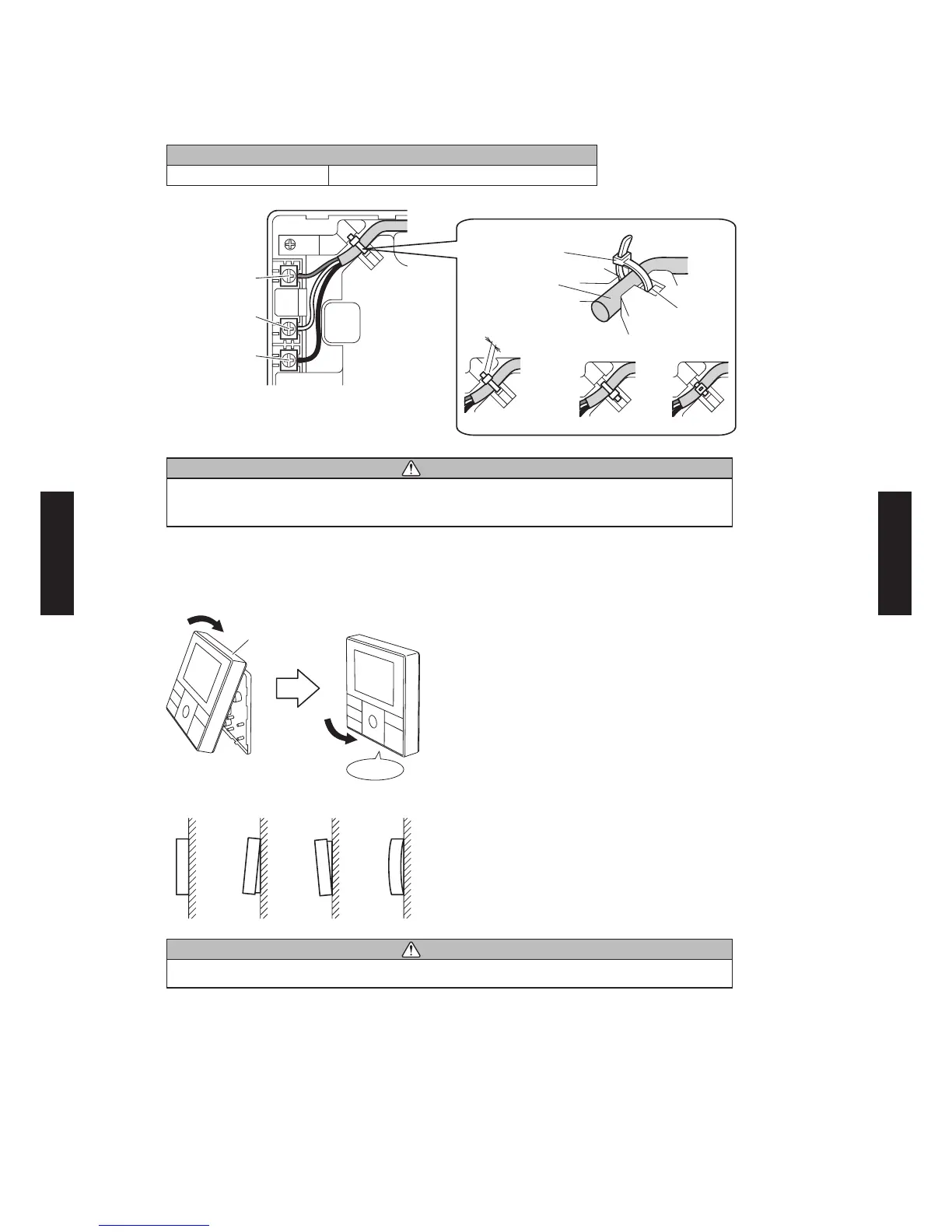

5) Connect the cable to the terminals on the front case. Fix the cable together with the sheath
with the cable tie. Cut off the excess cable tie.
Tightening torque
Terminal screw . to .
1. 12V (Red)
2. Signal (White)
3. COM (Black)
Cable tie
Hole for cable tie
Remote controller
cable (sheath)
2 mm
(3/32 in.)
No good
Good
No good
CAUTION
Be careful to avoid breaking the cable by over-tightening the cable tie.
When connecting the remote controller cables, do not over-tighten the screws.
6) Attach the front case.
Insert after adjusting upper part of front case.
When inserting the front case, do not pinch the cable.
Front case
Good
Click!
No good No good No good
CAUTION
Insert the upper case firmly. If improperly attached, it will cause the upper case to fall off.
- (05 - 11) -
