5. CONTROL SYSTEM
FUNCTIONS (AR-RAH1E)

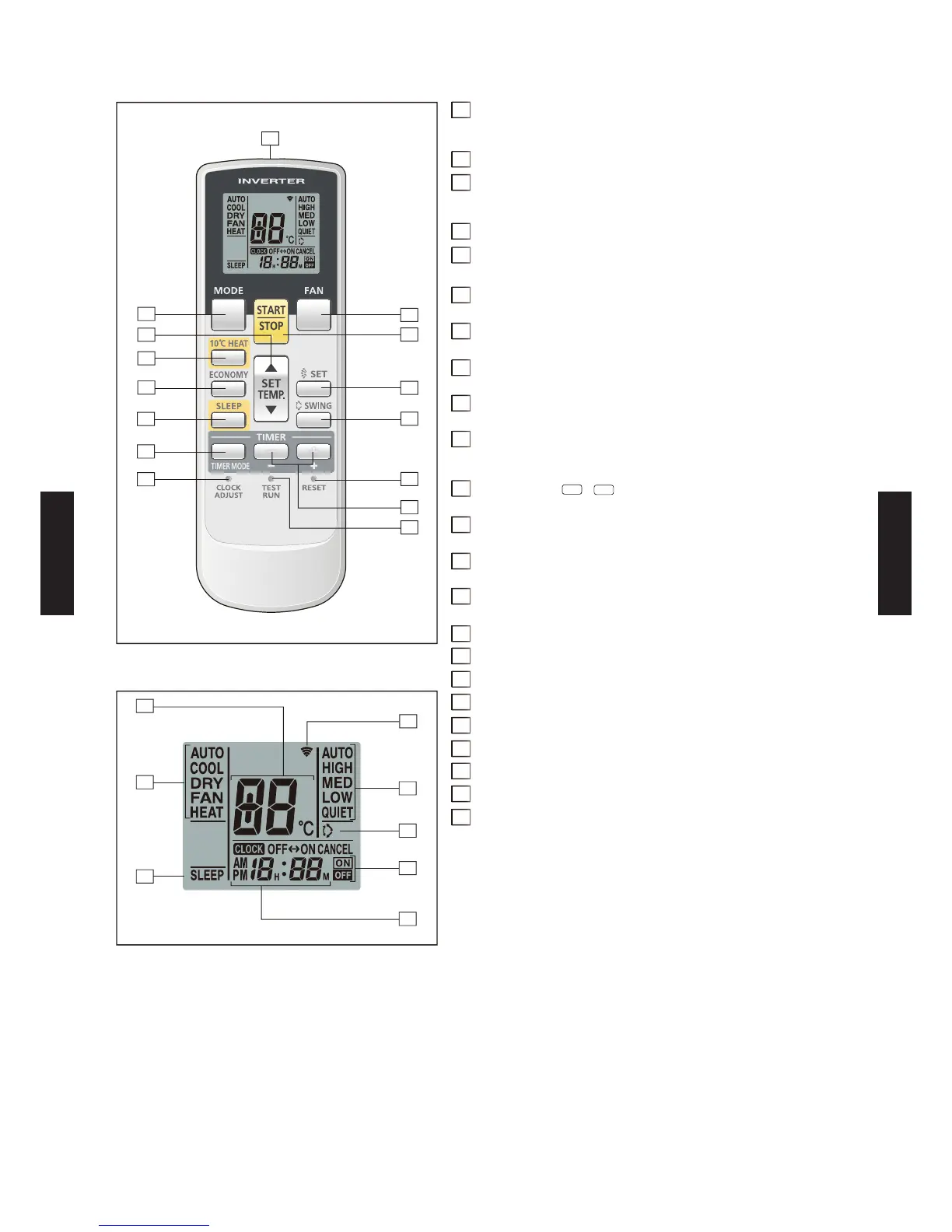

Display panel
MODE button1
Selects the operating mode (AUTO, COOL, DRY, FAN, HEAT).
/Start / end R.C. custom code change. (Max. 4 custom codes)
10°C2 HEAT button
P. button 3
Sets the indoor temp./ Sets R.C. custom code.
ECONOMY button4
SLEEP button5
Pressed to select sleep timer.
FAN button6
Selects the fan speed (AUTO, HIGH, MED, LOW, QUIET).
START/STOP button7
Pressed to start and stop operation.
SET button (Vertical)8
irow direction ertica set button.
SWING button9
irow direction swing button.
TIMER MODE button10
Pressed to select the timer mode. (OFF TIMER, ON TIMER,
PROGRAM TIMER, TIMER RESET)
TIMER Set ( / ) button11
Sets the current time and on-off time.
CLOCK ADJUST button12
Sets the current time.
RESET button13
Used when replacing batteries.
TEST RUN button14
Used when testing the air conditioner after installation.
Signal transmitter15
Temperature set indicator16
Operating mode indicator17
Sleep indicator18
Transmit indicator19
Fan speed indicator20
Swing indicator21
Timer mode indicator22
Clock indicator23
Note: Some button operations may not be available for all units or
systems. For details, please see operation manual.
