5. CONTROL SYSTEM

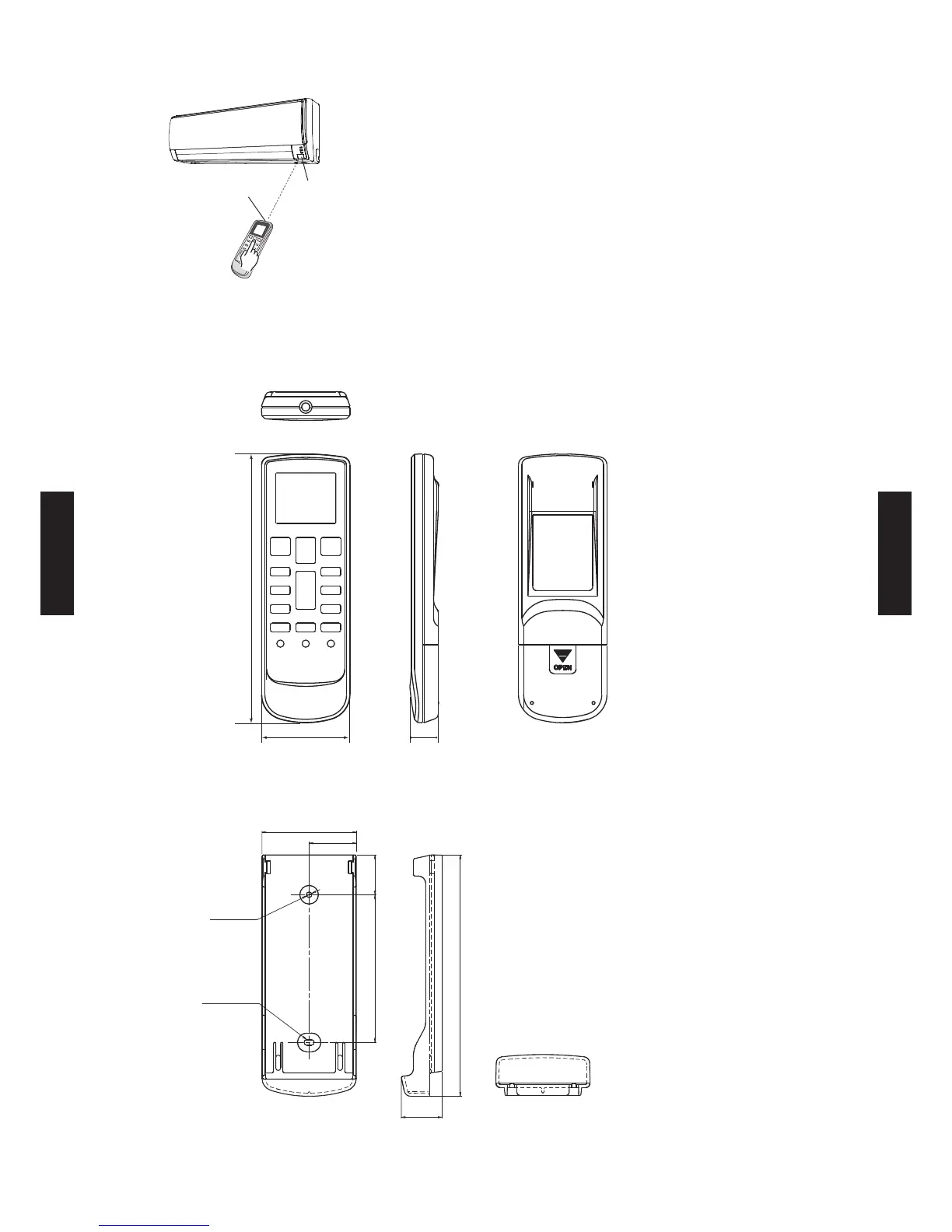

SYSTEM DIAGRAM

Signal transmitter
Signal receiver
window
Control signal may not be recognized in following cases:
(i) A curtain or a wall, etc. exists between transmitter and receiver.
ii here is an instantstart tpe inerter tpe etc. uorescent ap
in the room.
Air conditioner may not work correctly when strong light hits the signal 
receiver window. Shut off direct sunlight and also place illuminator far
away from the receiver window.
DIMENSIONS

Controller

170
56
19
Front View Rear View
Top View
Side View
[Unit : mm]
Holder

Front View Side View Bottom View
60.4
30.2
Ø3.5
3.5 x 6.5
(HOLE)
(HOLE)
26.2
25.5
95
154.7
- (05 - 40) -
