6. SYSTEM DESIGN
STOP OPERATION MODE

It is possible to switch to Batch stop or Emergency stop and Normal operation by using external 
input.

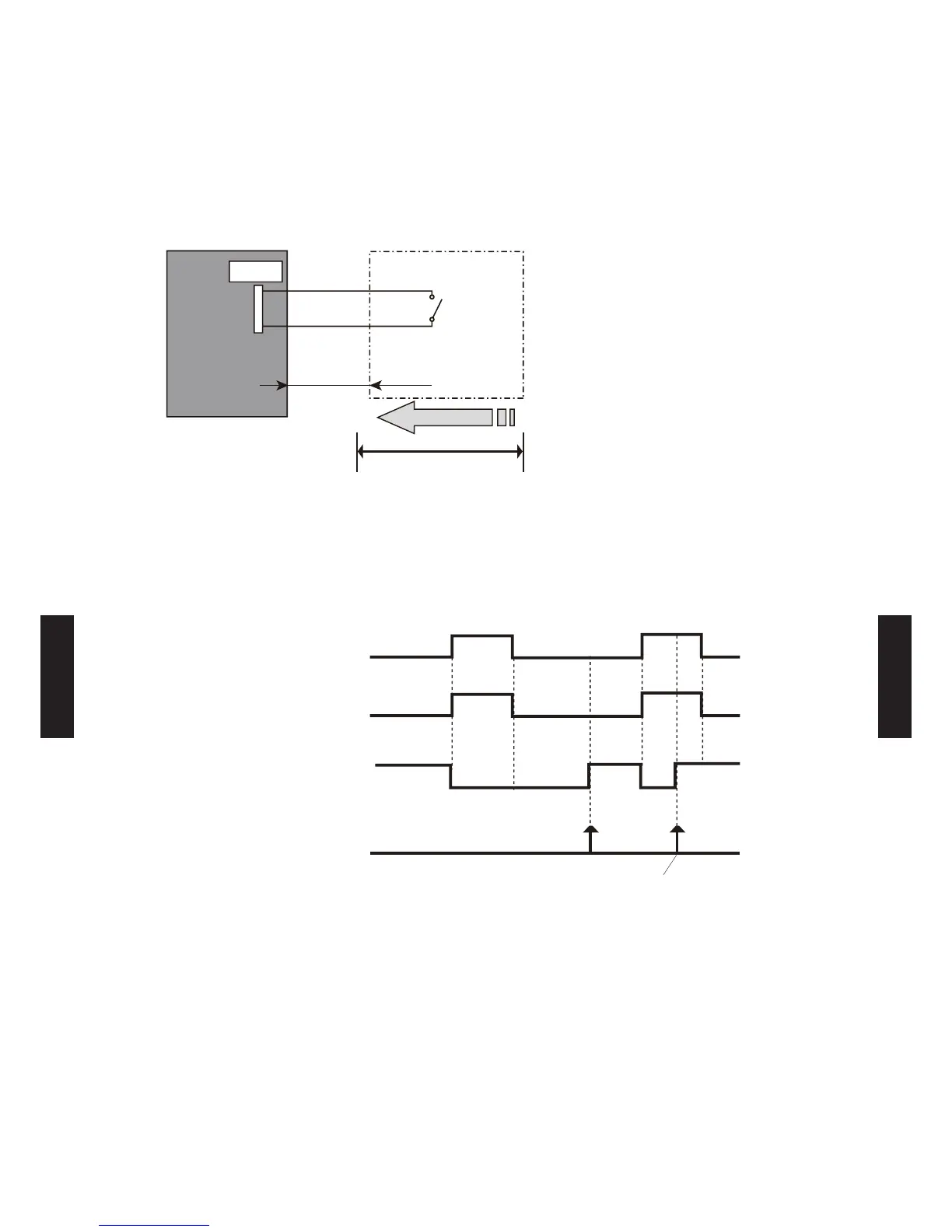

Circuit diagram example

* Make the distance from the PC board to the connected unit within 10 m.
Contact capacity: DC 24 V or more, 10 mA or more.
Use the following parts and construct a circuit as shown above.
* Set the "Batch stop" or "Emergency stop" pattern, refer to "5. FUNCTION SETTING"
When function setting is in "Batch stop" mode

Remote controller
Input signal
ON
OFF
Air conditioner
Operation
Stop
Command
Batch stop
Normal
ON ON
Remote control
operation validity
Outdoor unit
control PC board
Connector
1
2
Signal
Field supply
*10 m
Connected unit
Ex.) Switch
- (06 - 108) -
SYSTEM DESIGN SYSTEM DESIGN
