Fujitsu ASYG07LMCE User Manual

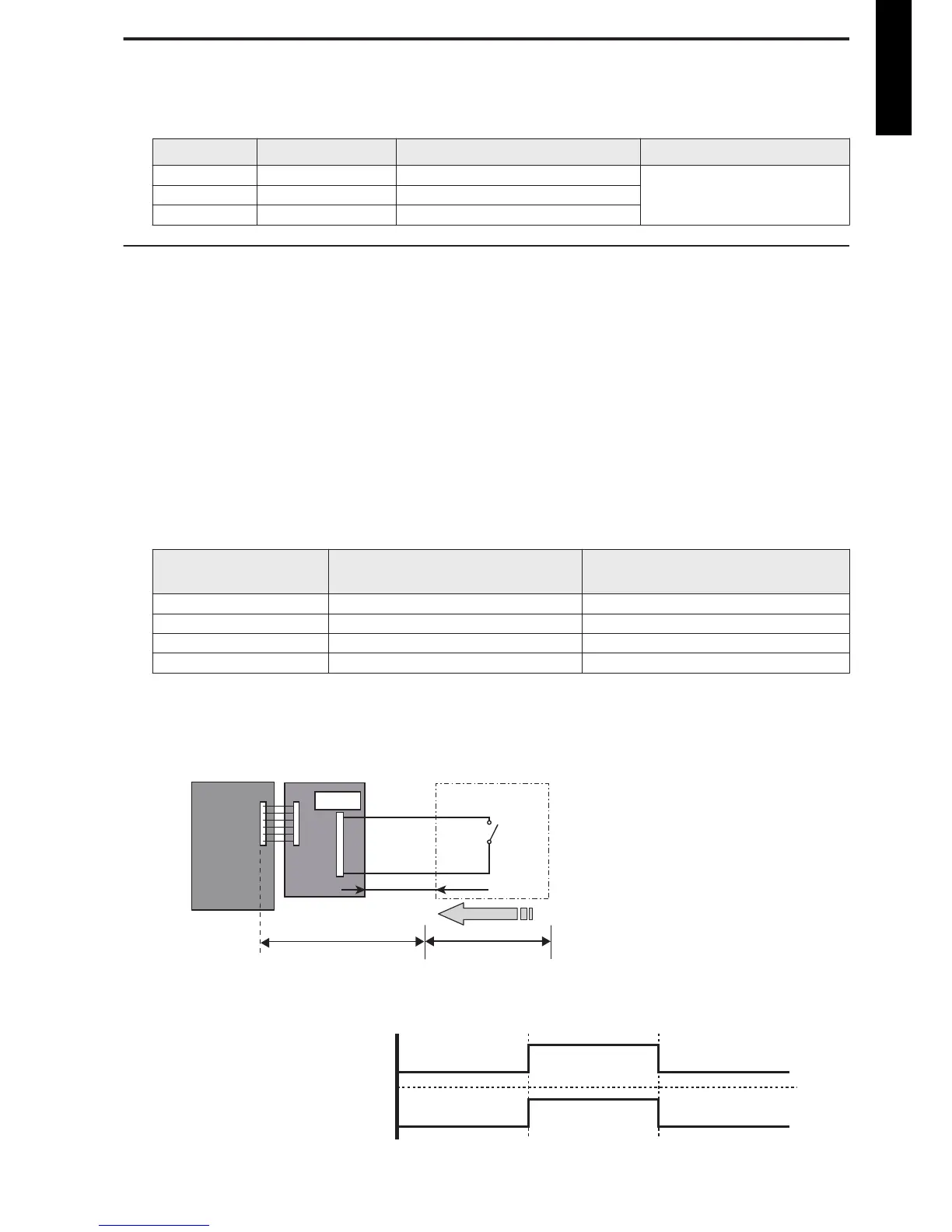

9. External input and output
With using external input and output functions, this product can be operated inter-connectedly
with an external device.
Connector Input Output Remarks
CNA01 Control input —
See external input/output
settings for details.
CNB01 — Operation status output
CNB02 — Error status output
9-1. External input
With using external input function, some functions on this product can be controlled from an exter-
nal device.
• “Operation/Stop” mode or "Forced stop" mode can be selected with function setting of indoor
unit.
• A twisted pair cable (22AWG) should be used. Maximum length of cable is 150 m.
• The wire connection should be separate from the power cable line.
¢
Control input (Operation/Stop or Forced stop)
The air conditioner can be remotely operated by means of the following on-site work.
Unit operation is started at the following contents by adding the contact input of a commercial
on/off switch to a connector on the external control PCB and turning it on.
Unit operation Initial setting after power is on
Starting mode other than initial
setting
Operation mode Auto changeover Mode at previous operation
Set temperature 24 °C Temperature at previous operation
Airflow mode AUTO Mode at previous operation
Air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
 Circuit diagram example
Signal
Locally purchased
Indoor unit
control PCB
Communication kit
Optional parts
Connector
1
3
10 m*
Connected unit
Example: Switch
• Contact capacity: DC 24 V or
more, 10 mA or more.
• *: Make the distance from the PCB
to the connected unit within 10 m.
• Use non-polar relays and switches.
 When function setting is "Operation/Stop" mode
Operation
Stop
On
Off
Input signal
Indoor unit
- 19 -
WALL MOUNTED ASYG07-14LMCE

Fujitsu ASYG07LMCE Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Ionizer	-
Multi-split	No
Hose diameter	6.35 mm
Product color	White
Gas hose diameter	9.52 mm
Drain hose diameter	13.8 mm
Dehumidifying capacity	1 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	3000 W
Cooling capacity in watts (min)	500 W
Heating capacity in watts (max)	3400 W
Cooling capacity in watts (nominal)	2000 W
Heating capacity in watts (nominal) (Warmer heating season)	- W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.1
Current	7.5 A
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	2 kW
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.3 kW
Indoor unit type	Wall-mountable
Indoor unit depth	204 mm
Indoor unit width	870 mm
Indoor unit height	270 mm
Indoor unit weight	8500 g
Indoor units quantity	1
Heating airflow (indoor unit)	750 m³/h
Indoor unit sound power level	40 dB
Indoor unit noise level (low speed)	32 dB
Indoor unit noise level (high speed)	43 dB
Outdoor unit noise level	- dB
