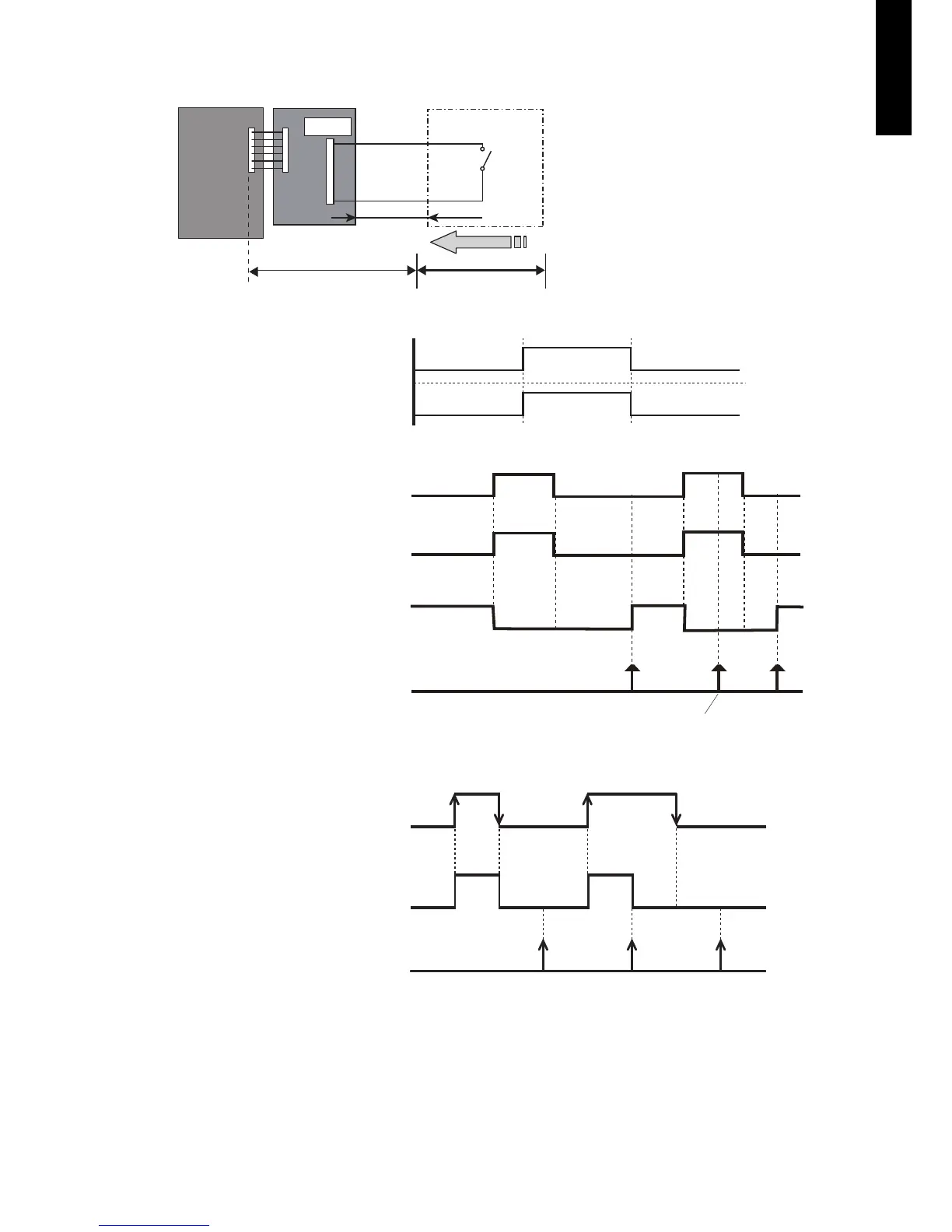

Circuit diagram example
Signal
Locally purchased
Indoor unit
control PCB
Communication kit
Optional parts
Connector
1
3
10 m*
Connected unit
Example: Switch
Contact capacity: DC 24 V or more,
10 mA or more.
*: Make the distance from the PCB
to the connected unit within 10 m.
Use non-polar relays and switches.
When function setting is “Operation/Stop” mode
Operation
Stop
On
Off
Input signal
Indoor unit
When function setting is “Forced stop” mode
Remote controller
On On On
Input signal
Indoor unit
Command
Remote control
operation invalidity
On
Off
Operation
Stop
Forced stop
Normal
When function setting is "Operation/Stop" mode 2
On
Input
Off
Operation
Indoor unit
Stop
(R.C. disabled)
Remote controller
On OnOff
NOTE:
When "Operation/Stop" mode 2 function is used with forming a remote controller
group, connect the same equipment to each indoor unit within the group.
- 21 -
