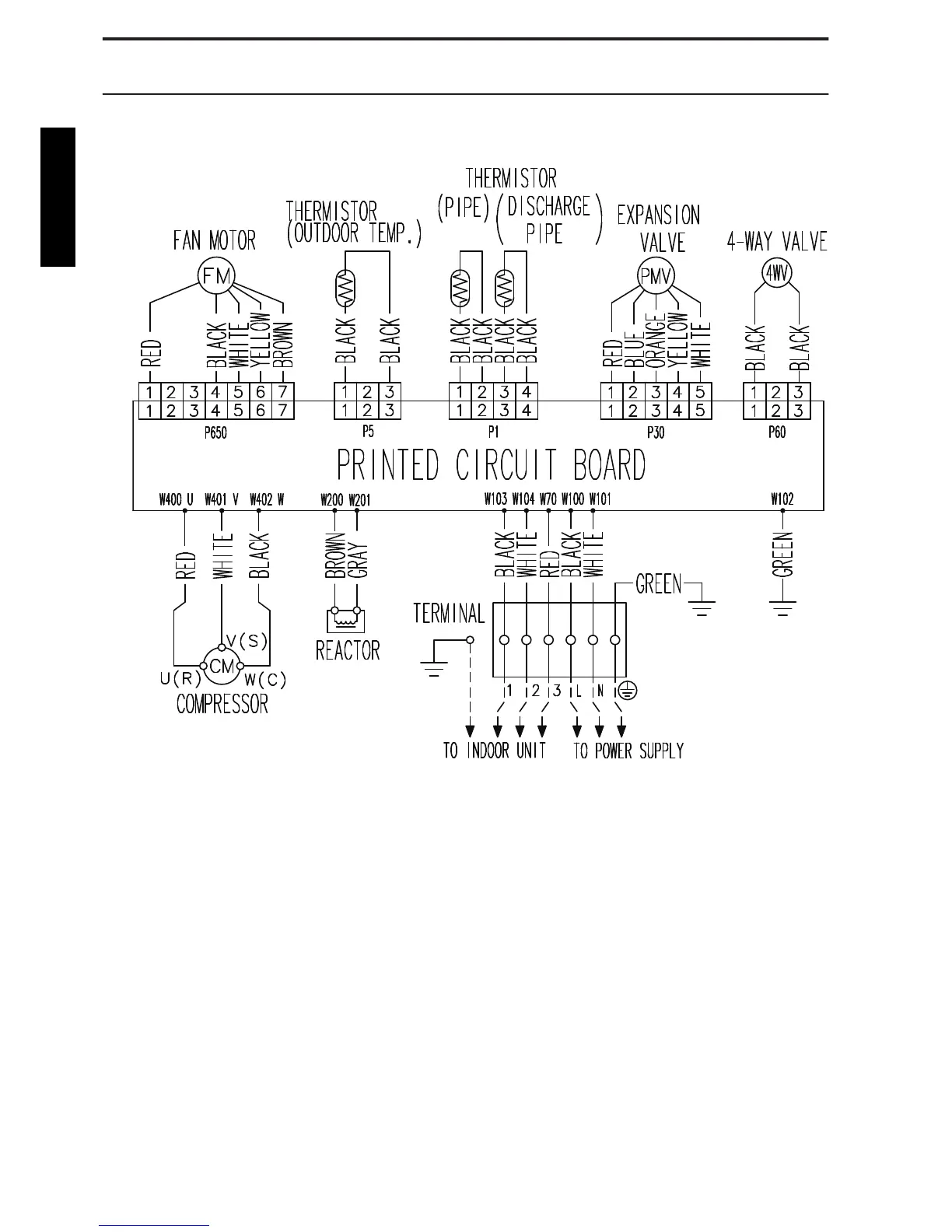

5. Wiring diagrams
5-1. Models: AOYG07KMTA, AOYG09KMTA, AOYG12KMTA,
and AOYG14KMTA
DESIGN & TECHNICAL MANUAL
- 48 -
OUTDOOR UNIT
AOYG07-14KMTA
