9. Group connection
Wiring regulation on the remote controllers in the multi split models are reviewed and allowed for
group connection.
Outdoor unit Outdoor unit
Indoor unit

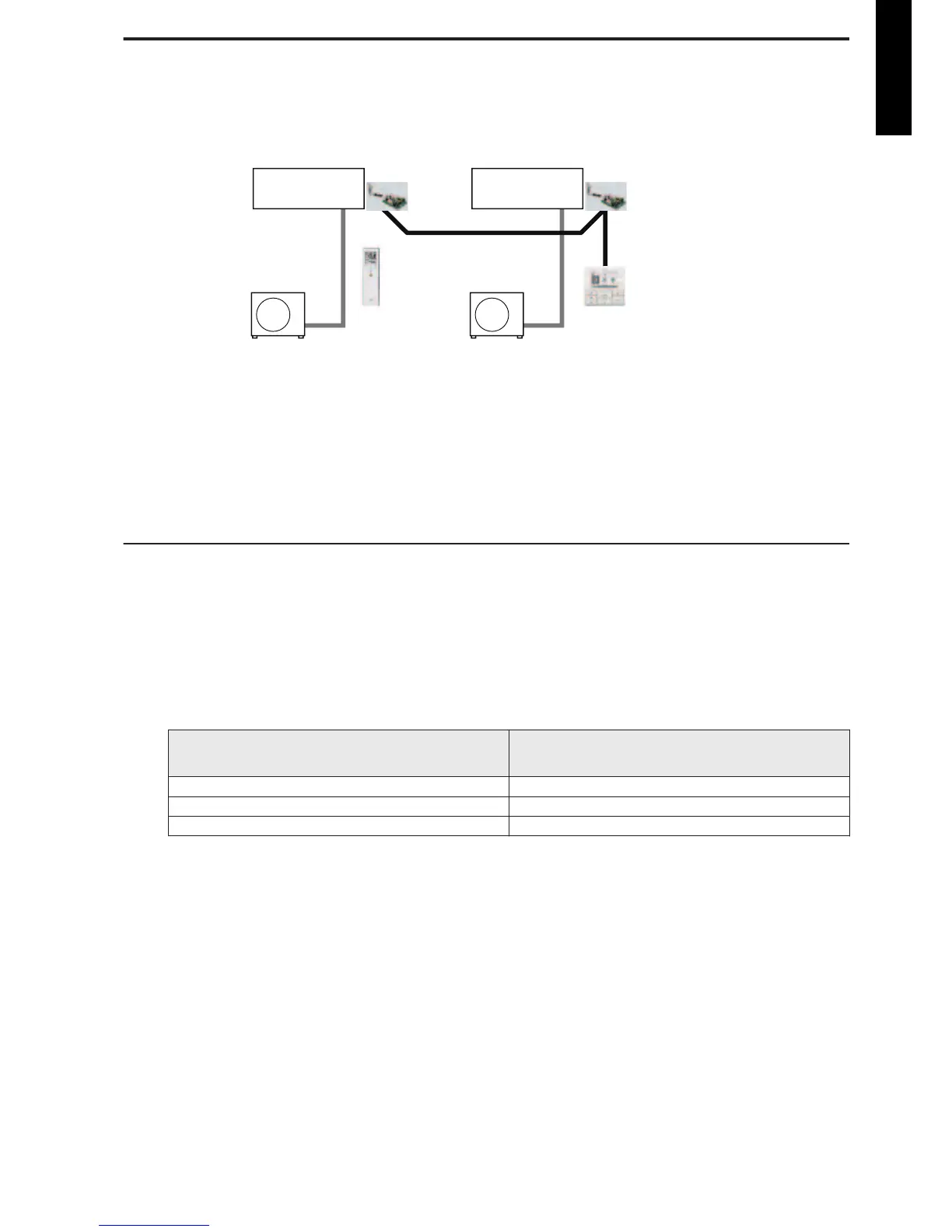

Example of group connection
Indoor unit
*Exterior of each device shown above might be different from the actual one.
NOTES:
Group connection is applicable for models that are produced in 2013 or later in following
products:
KM/KG/LT/LU/LM/LF series in wall mounted type
Floor type
Up to 16 indoor units can be controlled by using one wired remote controller.
9-1. Precautions on creating a group connection
Take precautions on items described in this section when creating a group connection.
Maximum wiring length of the remote controller cable: 300 m
Even if the maximum wiring length of the product itself is specified as longer than 300 m, the
maximum length of the remote controller cable will be 300 m if the system is group-connected.
When total wiring length is longer than 100 m, the cable diameter needs to be changed as fol-
lows:
Total wiring length of remote controller cable
Unit: m
Cross section of cable
Unit: mm
2
100 or less 0.3—0.8
100—200 0.5—0.8
200—300 0.8
- 25 -
WALL MOUNTED
ASYG07-14KMTA

Table of Contents

Other manuals for Fujitsu ASYG09KMTA

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fujitsu ASYG09KMTA and is the answer not in the manual?

Fujitsu ASYG09KMTA Specifications

General IconGeneral
TypeAir conditioner indoor unit
Multi-splitNo
Product colorWhite
Gas hose diameter9.5 mm
Hose length (max)15 m
Inverter technology-
Liquid hose diameter6.35 mm
Comfort sleeping modeYes
Dehumidifying capacity1.3 l/h
Air conditioner functionsCooling, Heating
Cooling capacity in watts (max)3200 W
Cooling capacity in watts (min)900 W
Heating capacity in watts (max)4000 W
Cooling capacity in watts (nominal)2500 W
Cooling energy efficiency (EER, W/W)3.97
Heating energy efficiency (COP, W/W)4.52
Seasonal efficiency rating (cooling) (SEER)7.4
Heating capacity in watts (nominal) (Warmer heating season)- W
Heating capacity in watts (nominal) (Average heating season)2800 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)4.1
AC input voltage230 V
Current (cooling)6.5 A
Current (heating)9 A
AC input frequency50 Hz
Design load (cooling)2.5 kW
Energy efficiency class (cooling)A++
Hourly energy consumption (cooling)- kWh
Design load (heating) (Warmer heating season)- kW
Design load (heating) (Average heating season)2.4 kW
Energy efficiency class (heating) (Average heating season)A+
Indoor unit typeWall-mountable
Indoor unit depth222 mm
Indoor unit width834 mm
Indoor unit height270 mm
Indoor unit weight10000 g
Indoor units quantity1
Cooling airflow (indoor unit)700 m³/h
Indoor unit sound power level40 dB
Indoor unit noise level (low speed)29 dB
Indoor unit noise level (high speed)46 dB
Outdoor unit noise level- dB
