Fujitsu ASYG09KMTA Design & Technical Manual

11-2. Custom code setting for wireless remote controller
To interconnect the air conditioner and the wireless remote controller, assignment of the custom
code for the wireless remote controller is required.
NOTE:
Air conditioner cannot receive a signal if the air conditioner has not been set for the cus-
tom code.
When 2 or more air conditioners are installed in a room, and the remote controller is operating an
air conditioner other than the one you wish to set, change the custom code of the remote con-
troller to operate only the air conditioner you wish to set. (4 selections possible.)
Confirm the setting of the remote controller custom code and the function setting. If these do not
match, the remote controller cannot be used to operate for the air conditioner.

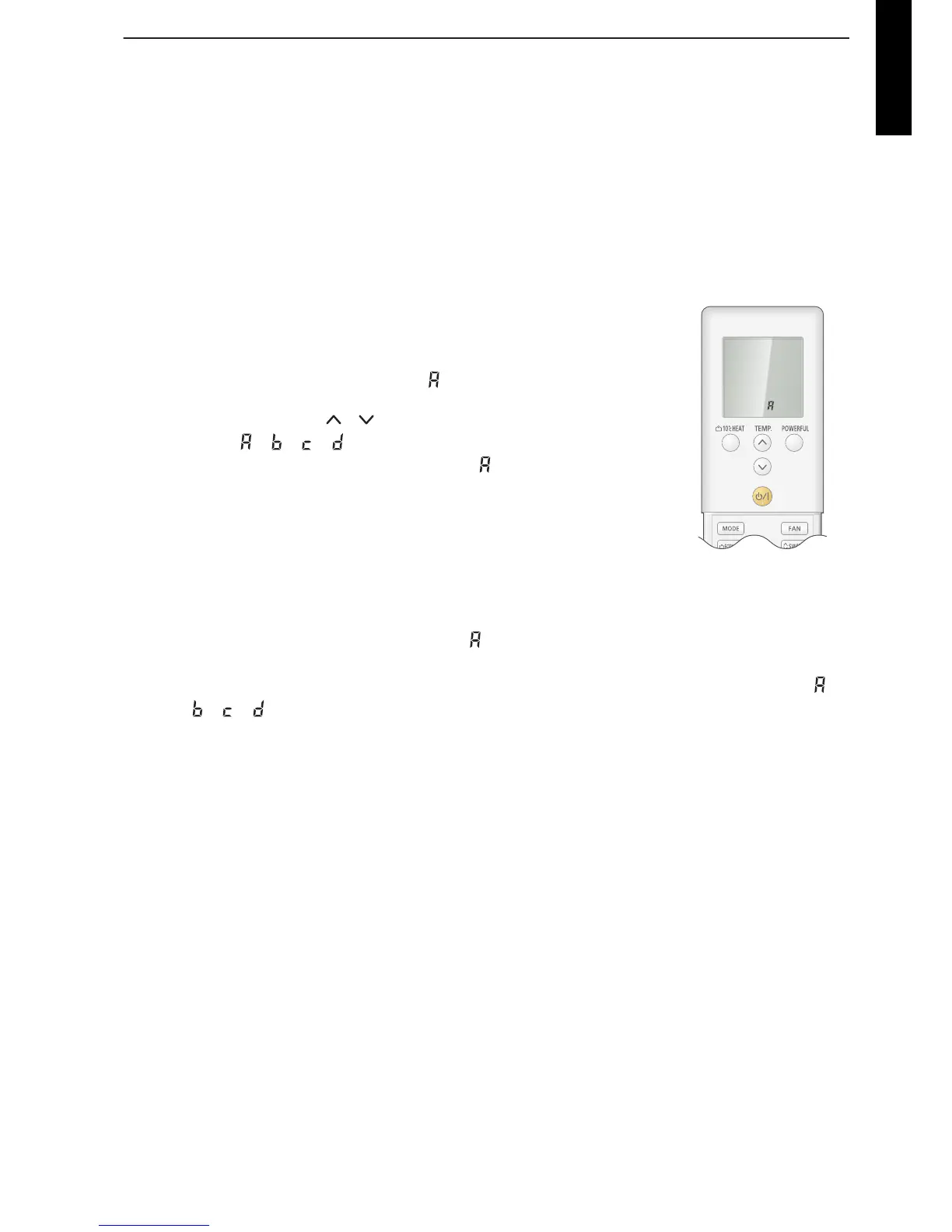

1. Press the START/STOP button until only the clock is displayed on
the remote controller display.
2. Press the MODE button for at least 5 seconds to display the cur-
rent custom code. (Initially set to
.)
3. Press the TEMP. ( ) ( ) buttons to change the custom code be-
tween → → → . Match the code on the display to the air
conditioner custom code. (Initially set to .)
4. Press the MODE button again to return to the clock display. The
custom code will be changed.
NOTES:
• If no button is pressed within 30 seconds after the custom code is displayed, the system re-
turns to the original clock indicator. In this case, start again from step 1.
•
The air conditioner custom code is set to prior to shipment. To change the custom code,
contact your retailer.
•
If you do not know the assigned code for the air conditioner, try each of the custom code (
→ → → ) until you find the code which operates the air conditioner.
- 35 -
WALL MOUNTED ASYG07-14KMTA

Fujitsu ASYG09KMTA Specifications

General

Type	Air conditioner indoor unit
Multi-split	No
Product color	White
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Comfort sleeping mode	Yes
Dehumidifying capacity	1.3 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	3200 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	4000 W
Cooling capacity in watts (nominal)	2500 W
Cooling energy efficiency (EER, W/W)	3.97
Heating energy efficiency (COP, W/W)	4.52
Seasonal efficiency rating (cooling) (SEER)	7.4
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	2800 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.1
AC input voltage	230 V
Current (cooling)	6.5 A
Current (heating)	9 A
AC input frequency	50 Hz
Design load (cooling)	2.5 kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency class (heating) (Average heating season)	A+
Indoor unit type	Wall-mountable
Indoor unit depth	222 mm
Indoor unit width	834 mm
Indoor unit height	270 mm
Indoor unit weight	10000 g
Indoor units quantity	1
Cooling airflow (indoor unit)	700 m³/h
Indoor unit sound power level	40 dB
Indoor unit noise level (low speed)	29 dB
Indoor unit noise level (high speed)	46 dB
Outdoor unit noise level	- dB
