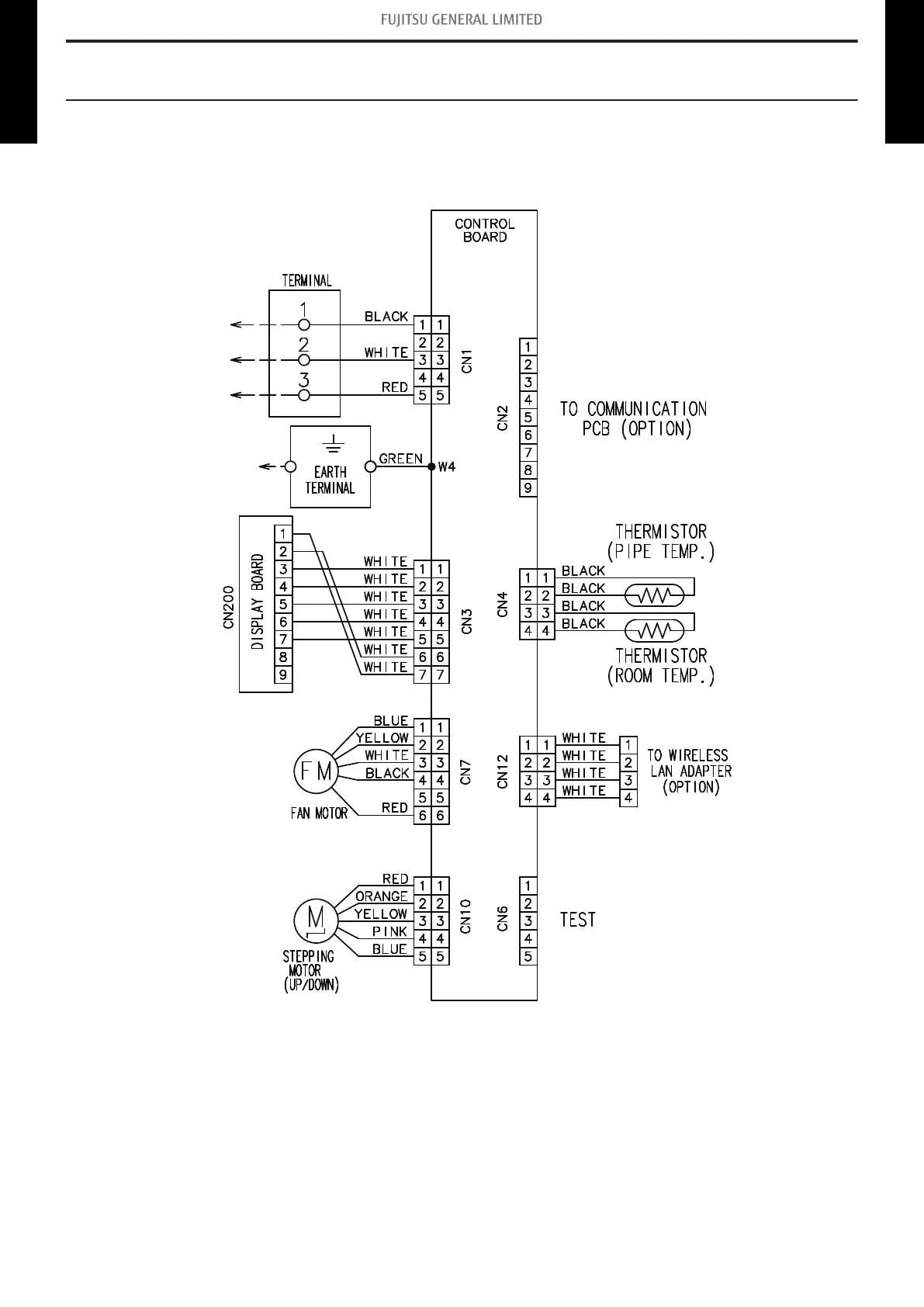

3. Wiring diagrams
3-1. Models: ASYG07KMTA, ASYG07KMTB, ASYG09KMTA,
ASYG09KMTB, ASYG12KMTA, ASYG12KMTB,
ASYG14KMTA, and ASYG14KMTB
- 6 -
3-1. Models: ASYG07KMTA, ASYG07KMTB, ASYG09KMTA, ASYG09KMTB,
ASYG12KMTA, ASYG12KMTB, ASYG14KMTA, and ASYG14KMTB
3. Wiring diagrams
WALL MOUNTED
ASYG07-14KMT
WALL MOUNTED
ASYG07-14KMT
