5. Wiring diagrams
5-1. Models: AOYG07KMTA, AOYG09KMTA, AOYG12KMTA,
and AOYG14KMTA
- 48 -

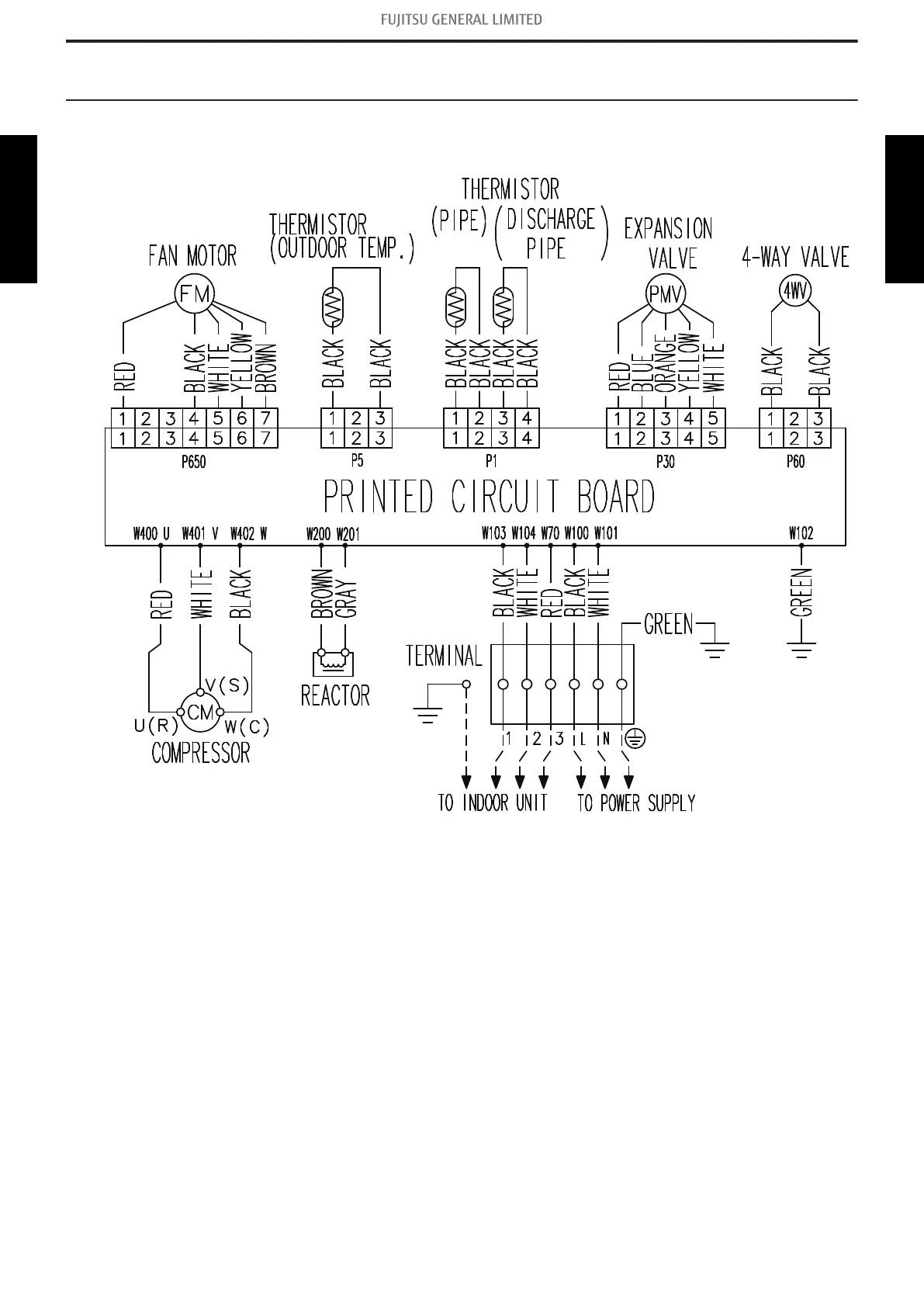

5-1. Models: AOYG07KMTA, AOYG09KMTA, AOYG12KMTA, and AOYG14KMTA 5. Wiring diagrams
OUTDOOR UNIT
AOYG07-14KMTA
OUTDOOR UNIT
AOYG07-14KMTA
