Fujitsu ASYG09KMTB User Manual

2. Dimensions
2-1. Models: ASYG07KMTA, ASYG07KMTB, ASYG09KMTA,
ASYG09KMTB, ASYG12KMTA, ASYG12KMTB,
ASYG14KMTA, and ASYG14KMTB
Unit: mm
(834)

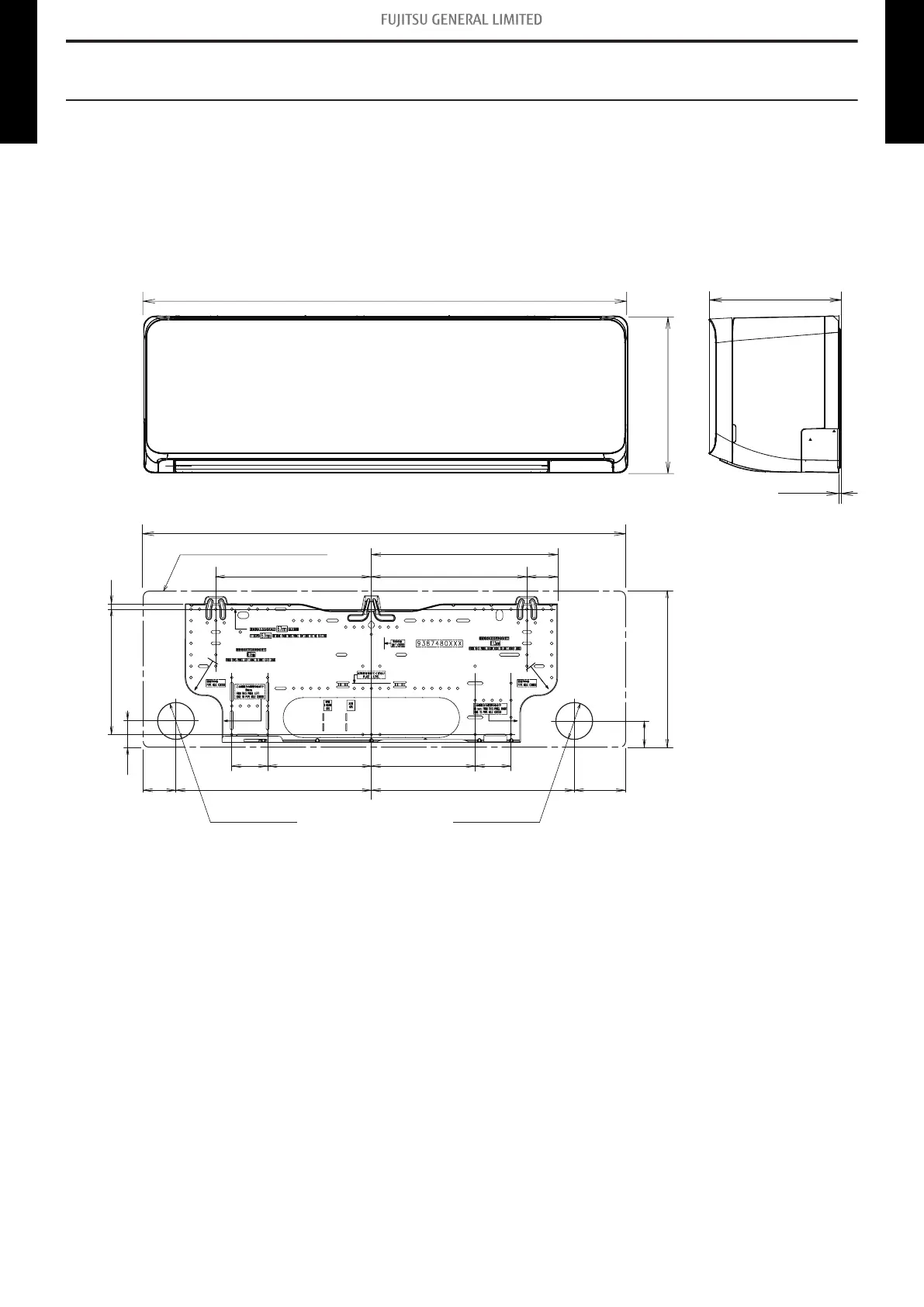

Outline of indoor unit
327
273273 54
(270)
43
43
9.5220
for pipe inlet Ø65 for pipe inlet Ø65
182 182
35634648 84
63 63
834
270
222
3.0
- 4 -
2-1. Models: ASYG07KMTA, ASYG07KMTB, ASYG09KMTA, ASYG09KMTB,
ASYG12KMTA, ASYG12KMTB, ASYG14KMTA, and ASYG14KMTB
2. Dimensions
WALL MOUNTED ASYG07-14KMT WALL MOUNTED ASYG07-14KMT

Fujitsu ASYG09KMTB Specifications

General

Brand	Fujitsu
Model	ASYG09KMTB
Category	Air Conditioner
Language	English
