Fujitsu ASYG09LLCE Service Instruction

Settings will not be changed if invalid numbers or setting values are selected.
After the power is turned on, perform the "FUNCTION SETTING" according to
the installation conditions using the remote controller.
This procedure changes to the function settings used to control the indoor unit
according to the installation conditions.
Incorrect settings can cause the indoor unit malfunction.

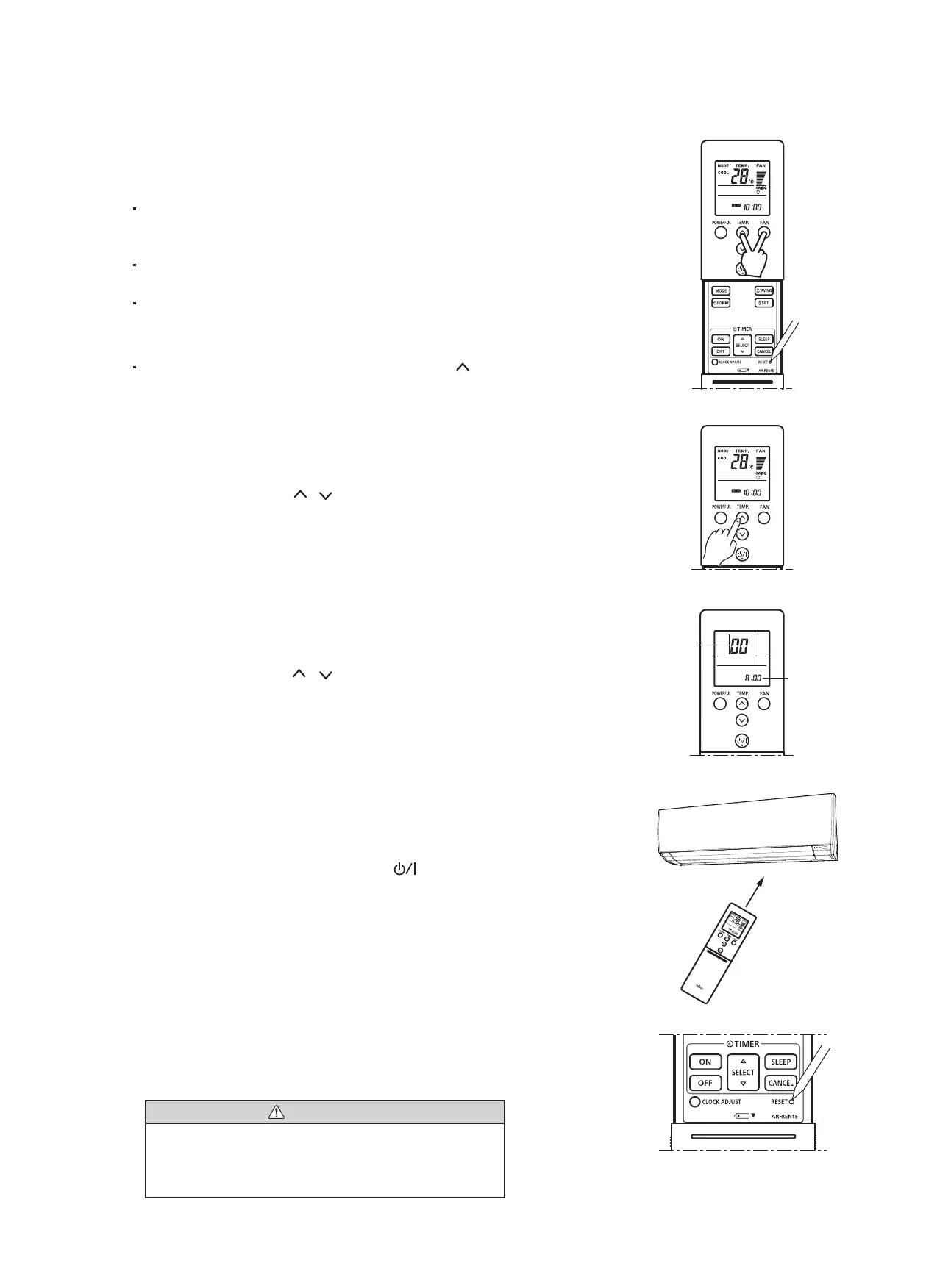

Entering the Function Setting Mode
MODEL : ASYG07LLCD, ASYG09LLCD, ASYG12LLCD
While pressing the FAN button and SET TEMP.( ) button simultaneously,
press the RESET button to enter the function setting mode.
(2) Press the FAN button to proceed to setting the value.
(Press the FAN button again to return to the function number
selection.)
Selecting the Function Number and Setting Value
(5) Next, please press the START/STOP( ) button.
Please confirm that the beep sounds.
(6) Press the RESET button to cancel the function setting mode.
(7) After completing the FUNCTION SETTING, be sure to turn off the
power and turn it on again.
CAUTION
After turning off the power, wait 10 seconds or more
before turning on it again.
The FUNCTION SETTING doesn't become active unless
the power is turned off then on again.
(3) Press the SET TEMP.( ) ( ) buttons to select the setting value.
(Press the POWERFUL button to switch between the left and right digits.)
Function
Number
(1) Press the SET TEMP.( ) ( ) buttons to select the function number.
(Press the POWERFUL button to switch between the left and right digits.)
(4) Press the MODE button, in the order listed to confirm the setting.
Please confirm that the beep sounds.
Setting Value
03-06

Fujitsu ASYG09LLCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	650 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Heating capacity in watts (nominal) (Average heating season)	3000 W
Airflow	1670 m³/h
Outdoor unit noise level	- dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	127 kWh
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	206 mm
Indoor unit width	820 mm
Indoor unit height	262 mm
Indoor unit weight	7000 g
Indoor unit noise level (high speed)	720 dB
