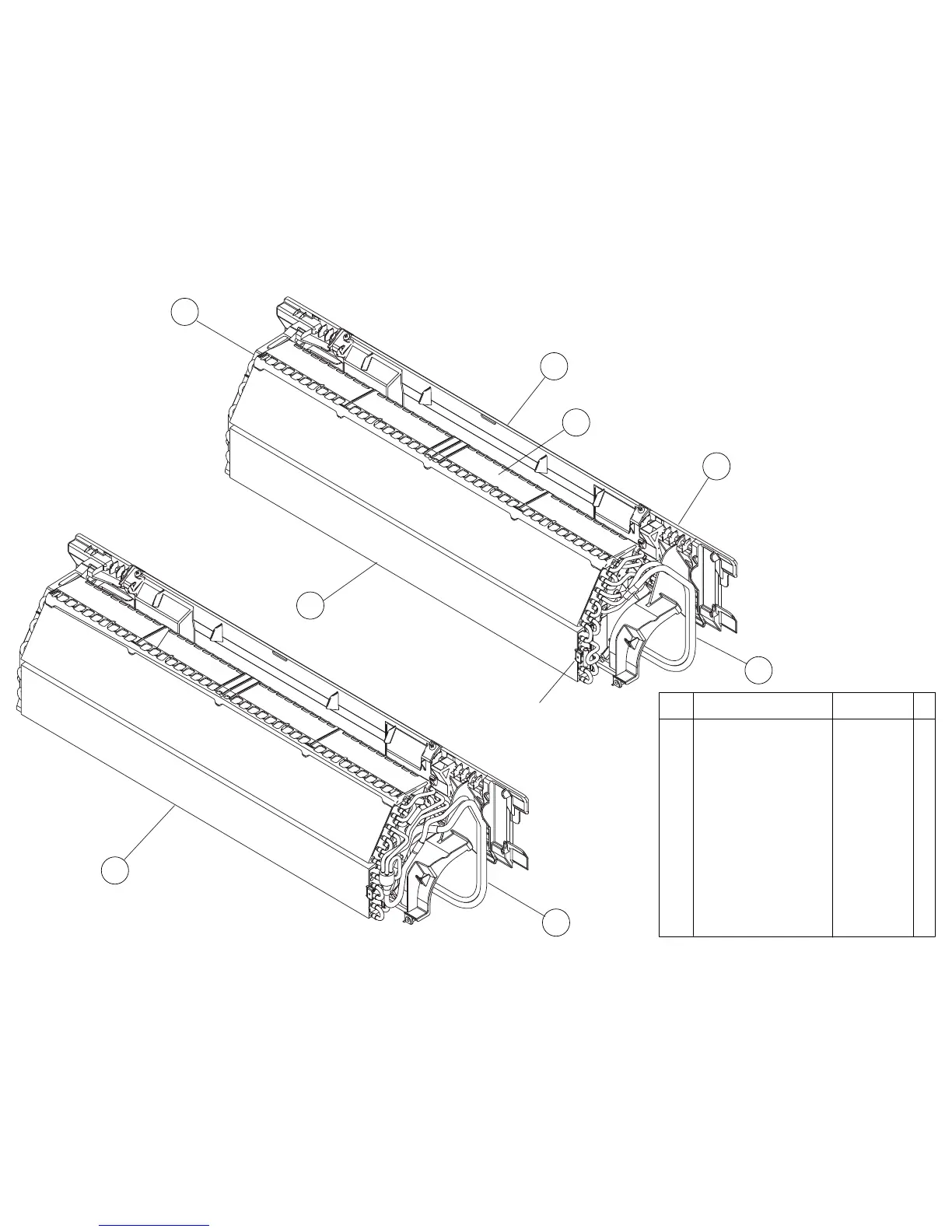

Evaporator Total Assy (09)
9316893160
42
Evaporator Total Assy (12)
9316893177
47 Rear Bracket 9332540017
45
43
9332538007
46 Evaporator Holder L
Evaporator Holder R
9332539004
Joint Pipe Assy (09)
Earth terminal
9332609011
44 Joint Pipe Assy (12) 9332608007
48 Filter Guide 9332541007
Ref. Description Part number
2014.02.24
41
42
INDOOR UNIT
Evaporator
ASYG09LLTB-T
ASYG12LLTB-T
45
43
44
46
48
