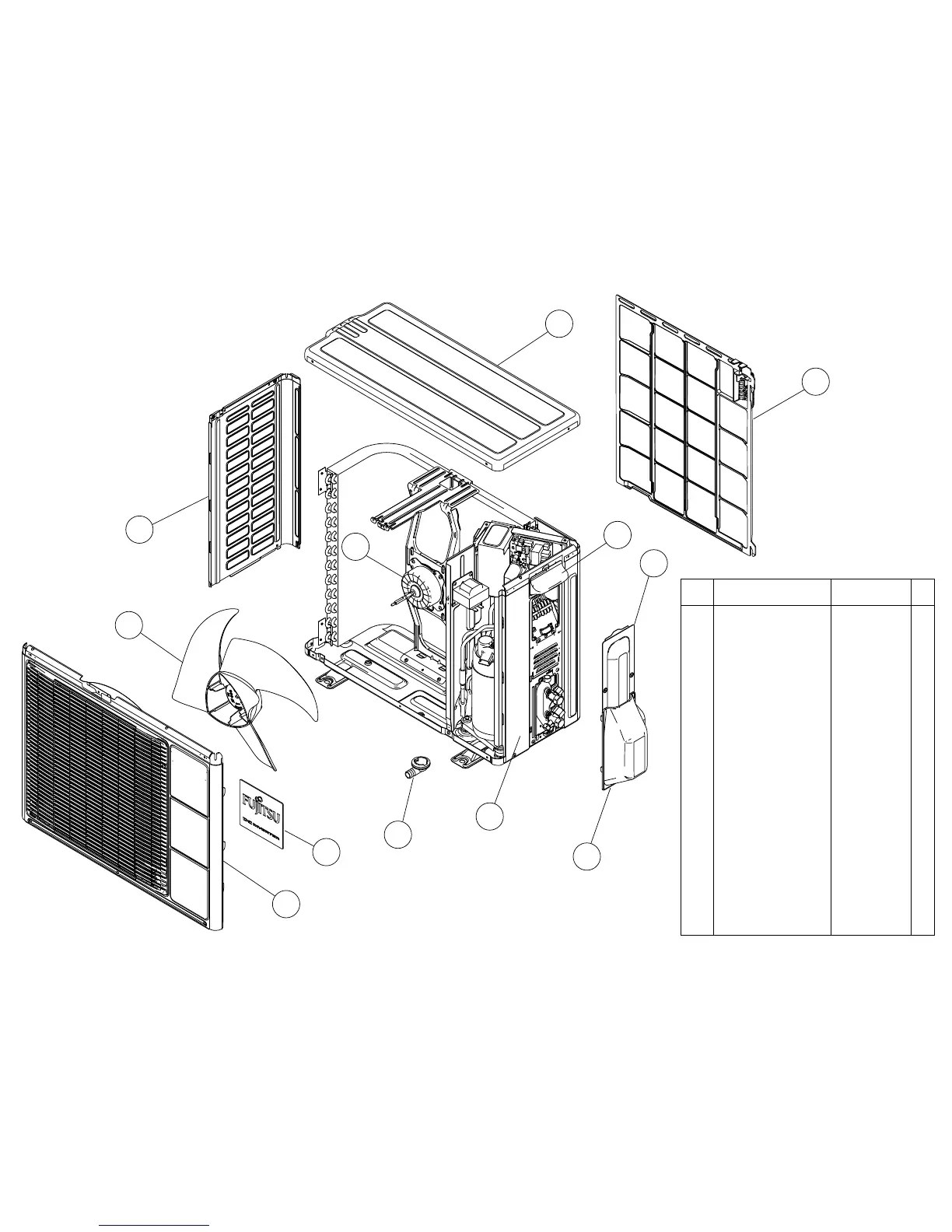

PARTS
OUTDOOR UNIT
2014.02.24 16
3 Front Panel Assy 9317789073
2 Top Panel Assy 9317939072
5 Cabinet Left Assy 9317813006
4 Emblem 9319151007
12 Drain Assy 9303029015
1 Protective Net 9331262019
6 Cabinet Right Assy 9317788120
8 Switch Cover A Assy 9317795029
7 Grip 9317588003
9 Switch Cover B 9317582001
Ref. Description Part number
11 Propeller Fan 9309909014
10 Fan Motor 9603074012
1
8
2
9
7
6
5
3
4
12
11
10
