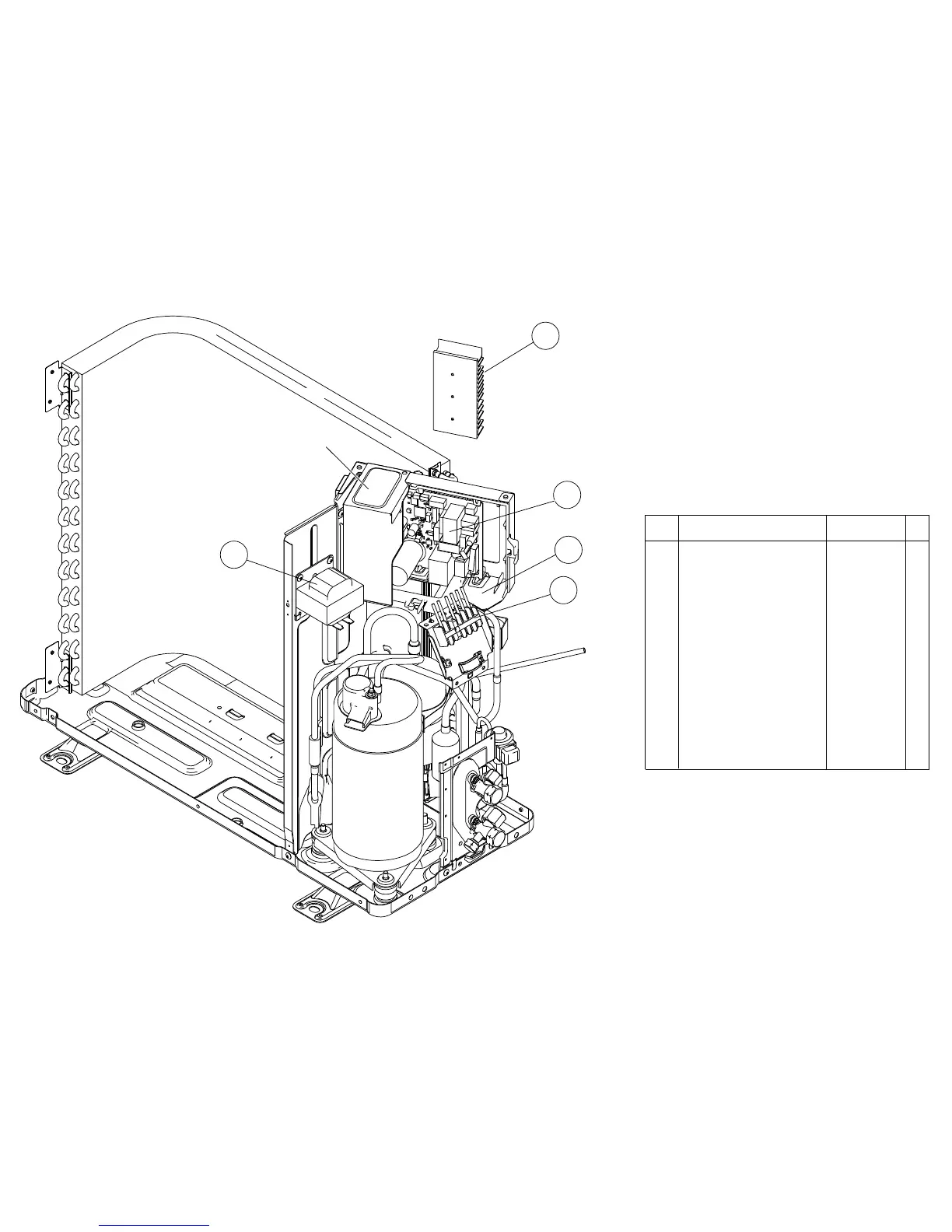

OUTDOOR UNIT
2014.02.24 17
21 Reactor Assy 9900787028
22 PCB Holder
Inverter cover
9332506006
23
Main PCB with Terminal (09)
9709434093
23
Main PCB with Terminal (12)
9709434109
-- Thermistor Assy 9900849009
-- Outdoor Thermistor 9900850005
24 Heat Sink B 9332522006
Ref. Description Part number
23
22
23
21
24
