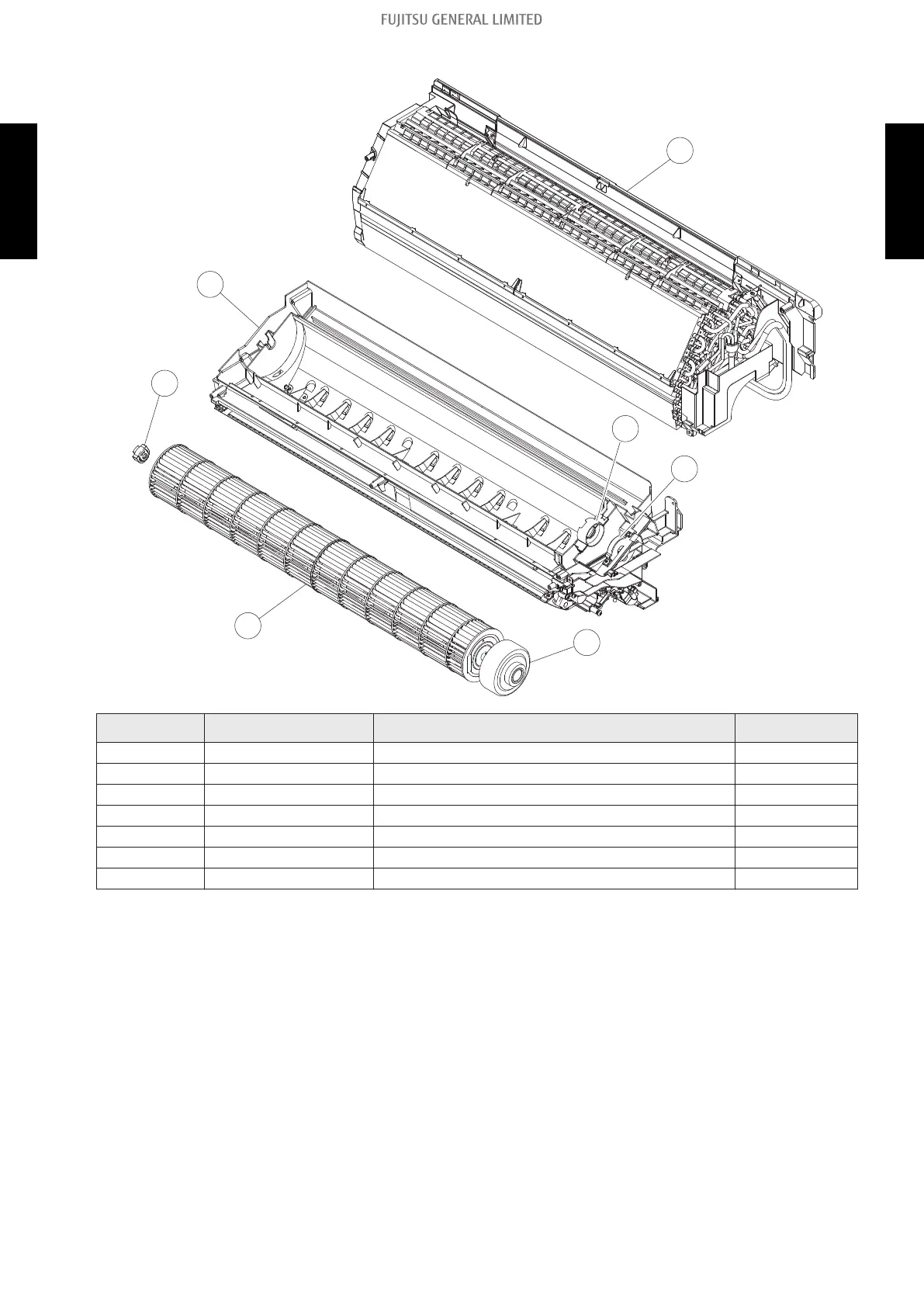

¢ Evaporator and fan
106
103
102
100
101
104
105
Item no. Part no. Part name Service part
100 9323532120 Evaporator total assy ♦
101 9603253066 Fan motor ♦
102 9315024060 Crossflow fan assy ♦
103 9306628024 Bearing C assy ♦
104 9316568006 Motor cover ♦
105 9316601000 Motor cover ♦
106 9319171180 Casing total assy ♦
2-1. Models: ASYG09KHCA, ASYG12KHCA, and ASYG14KHCA - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA
AND PARTS LIST
TECHNICAL DATA
AND PARTS LIST
