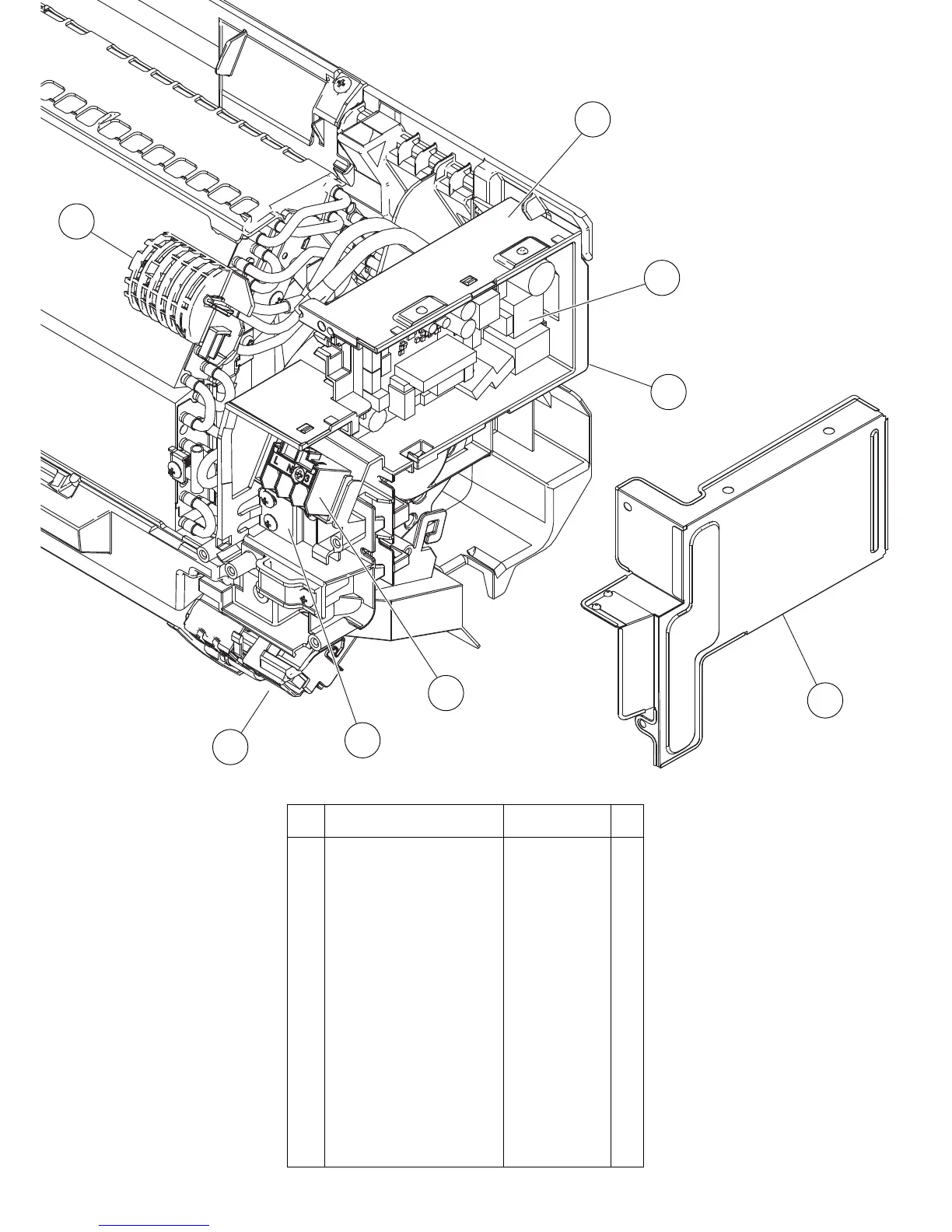

Fujitsu ASYG12LLCA - Indoor Unit Control Box and PCB

14
12
11
18
INDOOR UNIT
Control box
15
16
Terminal 9900720001
Main PCB (09) 9709170014
15
Earth Terminal 9332553017
11
Control Box
9332554007
12
Cover Shield
9332542004
13 Box Shield Assy 9332561005
14
Main PCB (12) 970917002114
18 Room Thermistor Holder 9316895003
Ref. Description Part number
17
-- Thermistor Assy 9900714017
Display Assy 9709173015
2012.02.14
