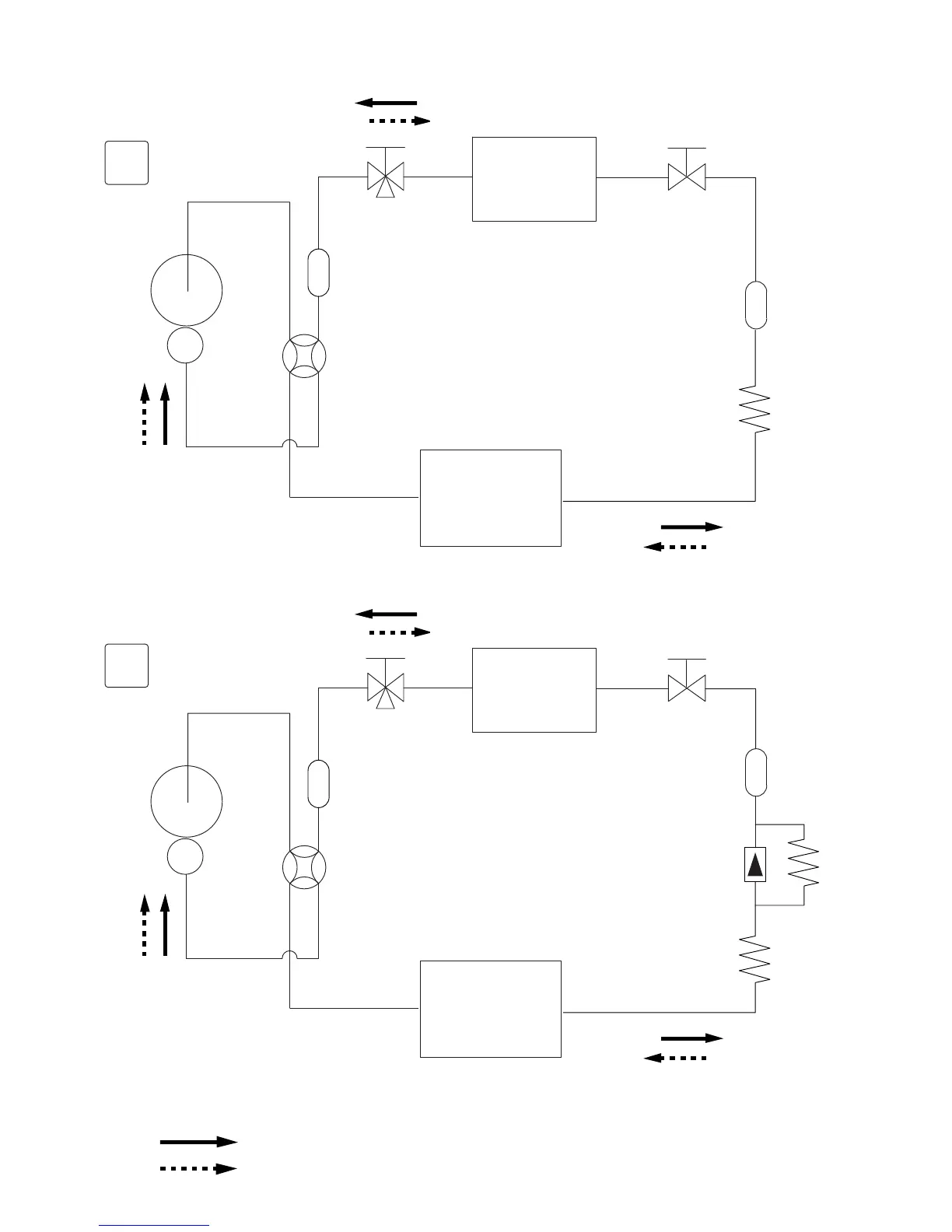

REFRIGERANT
SYSTEM DIAGRAM
2-way valve
Strainer
3-way valve
Muffler
4-way valve
Capillary
Heat
capillary
Refrigerant direction
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Compressor
09
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2-way valve
Strainer
Cool & heat
capillary
3-way valve
Muffler
4-way valve
Check valve
Heat exchanger
(indoor unit)
Heat exchanger
(outdoor unit)
Compressor
2012.02.14 3
12
