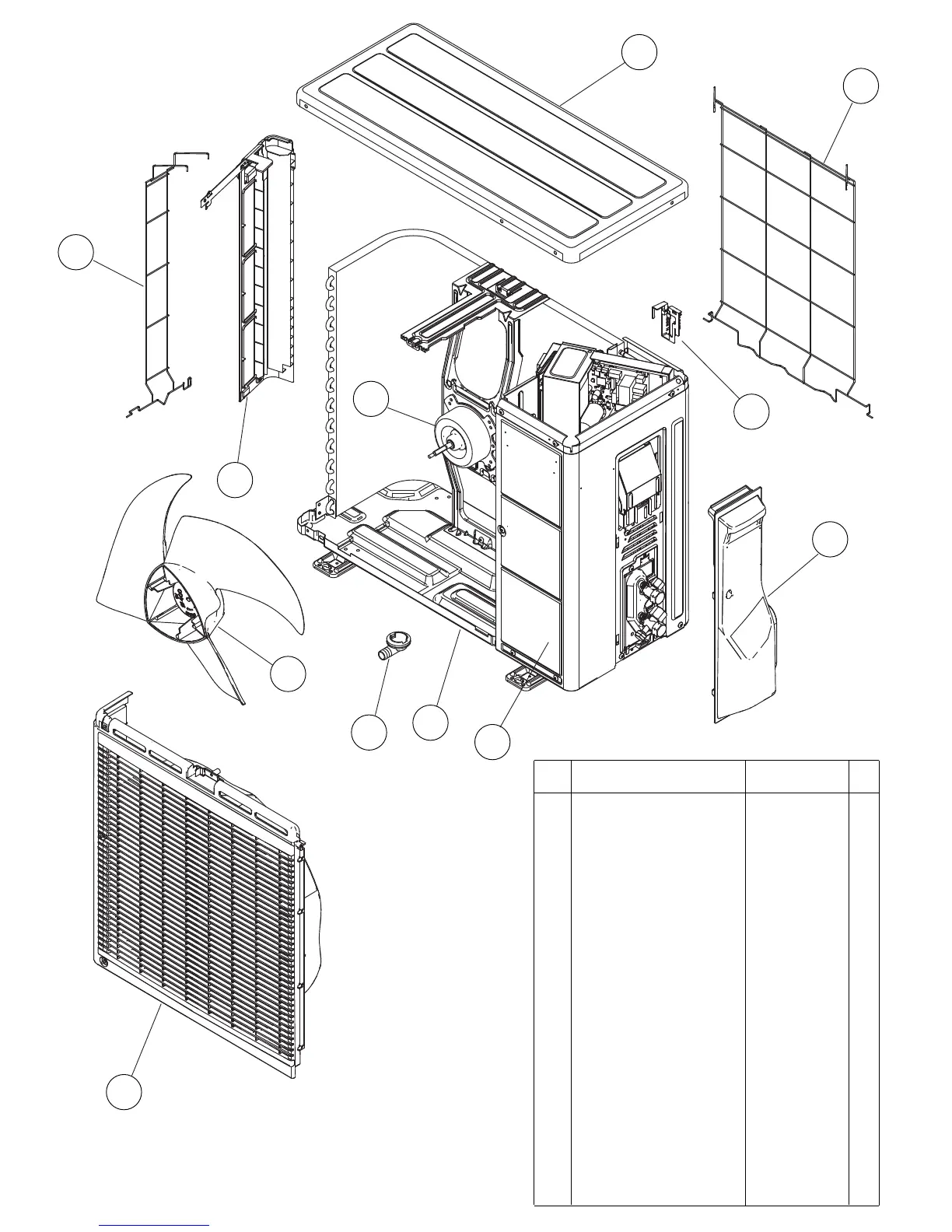

PARTS
OUTDOOR UNIT
2012.03.05 19
2
5 Front Panel Assy 9332580006
4 Top Panel Assy 9332582000
3 Thermistor Holder 9332505009
1
Protective Net A (Option)
9332737004
Protective Net B (Option)
9332738001
6 Cabinet Left Assy 9332576009
-- Emblem 9319396019
12 Drain Assy 9332574005
11 Base Assy 9332526004
7 Cabinet Right Assy 9332577006
8 Switch Cover Assy 9332579000
Ref. Description Part number
10 Propeller Fan 9309909014
9 Fan Motor 9603181000
3
8
4
1
7
6
5
12
10
11
9
2
