Fujitsu ASYG12LLCE Design & Technical Manual

6. Operation noise (sound pressure)

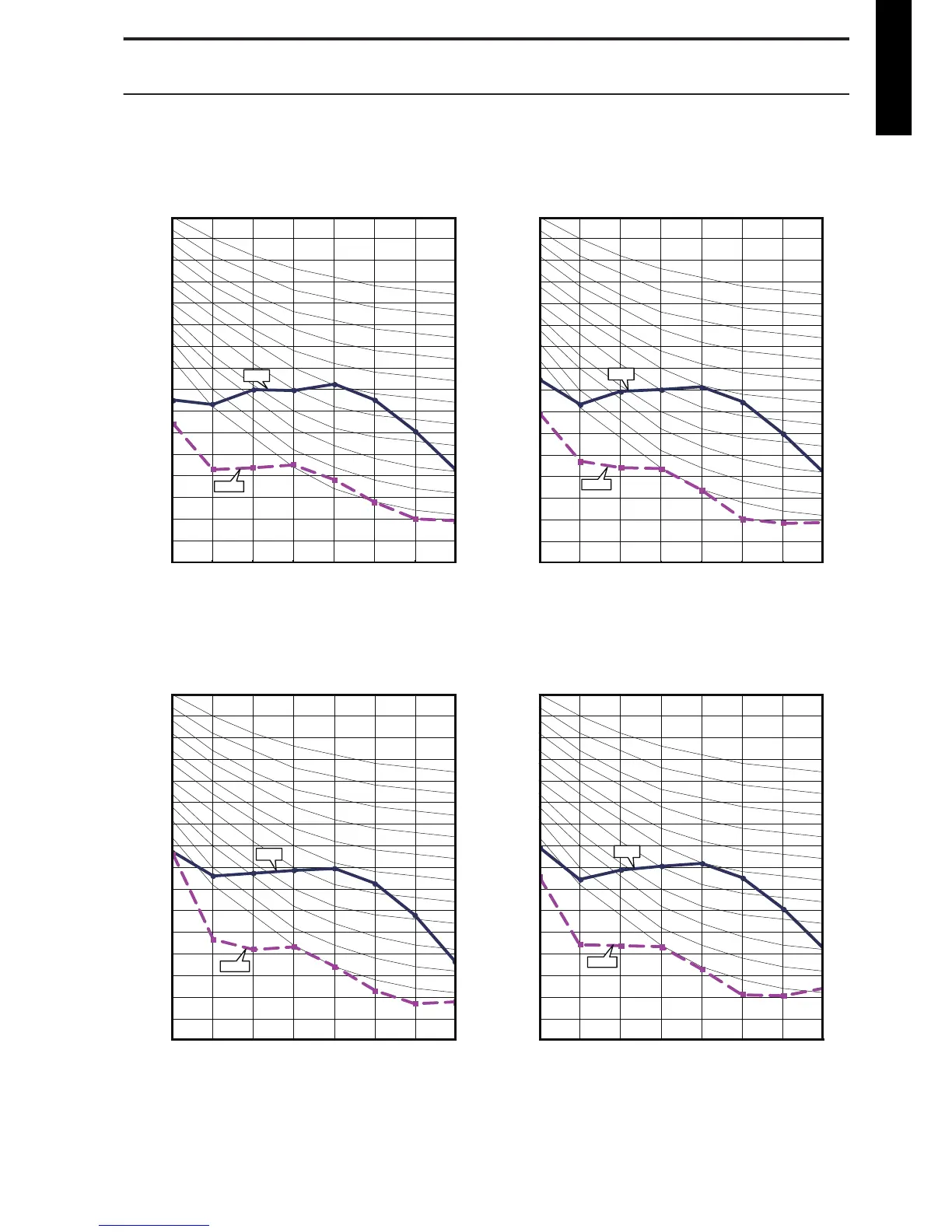

6-1. Noise level curve
¢
Models:ASYG07LLCE and ASYG09LLCE
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63
125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
¢
Model:ASYG12LLCE
 Cooling
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63
125 250 500 1,000 2,000 4,000 8,000
HIGH
QUIET
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
- 11 -
WALL MOUNTED ASYG07-12LLCE

Fujitsu ASYG12LLCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (nominal)	- W
Airflow	720 m³/h
Outdoor unit noise level	- dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	206 mm
Indoor unit width	820 mm
Indoor unit height	262 mm
Indoor unit weight	7000 g
Indoor unit noise level (high speed)	43 dB
