Fujitsu ASYG12LLCE Design & Technical Manual

3. Installation space
3-1. Models:AOYG07LLCE, AOYG09LLCE, and AOYG12LLCE
¢

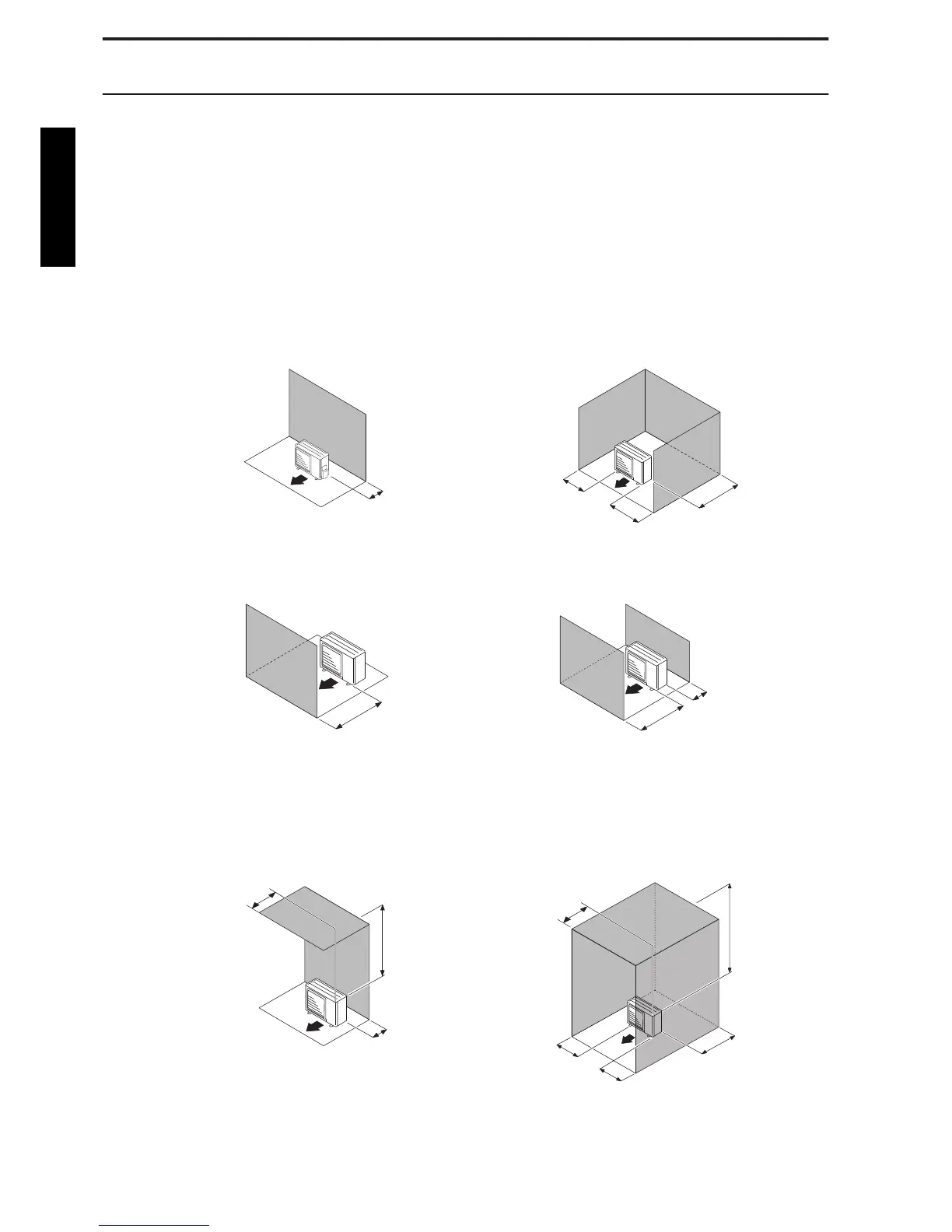

Space requirement
Provide sufficient installation space for product safety.
 Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
100 or more
250 or more
100 or more
100 or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
600 or more
600 or more
100 or more
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides,
and above.
100 or more
Max. 200
600 or more
600 or more
100 or more
250 or more
100 or more
Max. 200
DESIGN & TECHNICAL MANUAL
- 26 -
OUTDOOR UNIT AOYG07-12LLCE

Fujitsu ASYG12LLCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Air conditioner functions	Cooling, Dehumidifying, Heating
Cooling capacity in watts (nominal)	- W
Airflow	720 m³/h
Outdoor unit noise level	- dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	206 mm
Indoor unit width	820 mm
Indoor unit height	262 mm
Indoor unit weight	7000 g
Indoor unit noise level (high speed)	43 dB
