12. Group connection
Wiring regulation on the remote controllers in the multi split models are reviewed and allowed for
group connection.
Outdoor unit
Indoor unit

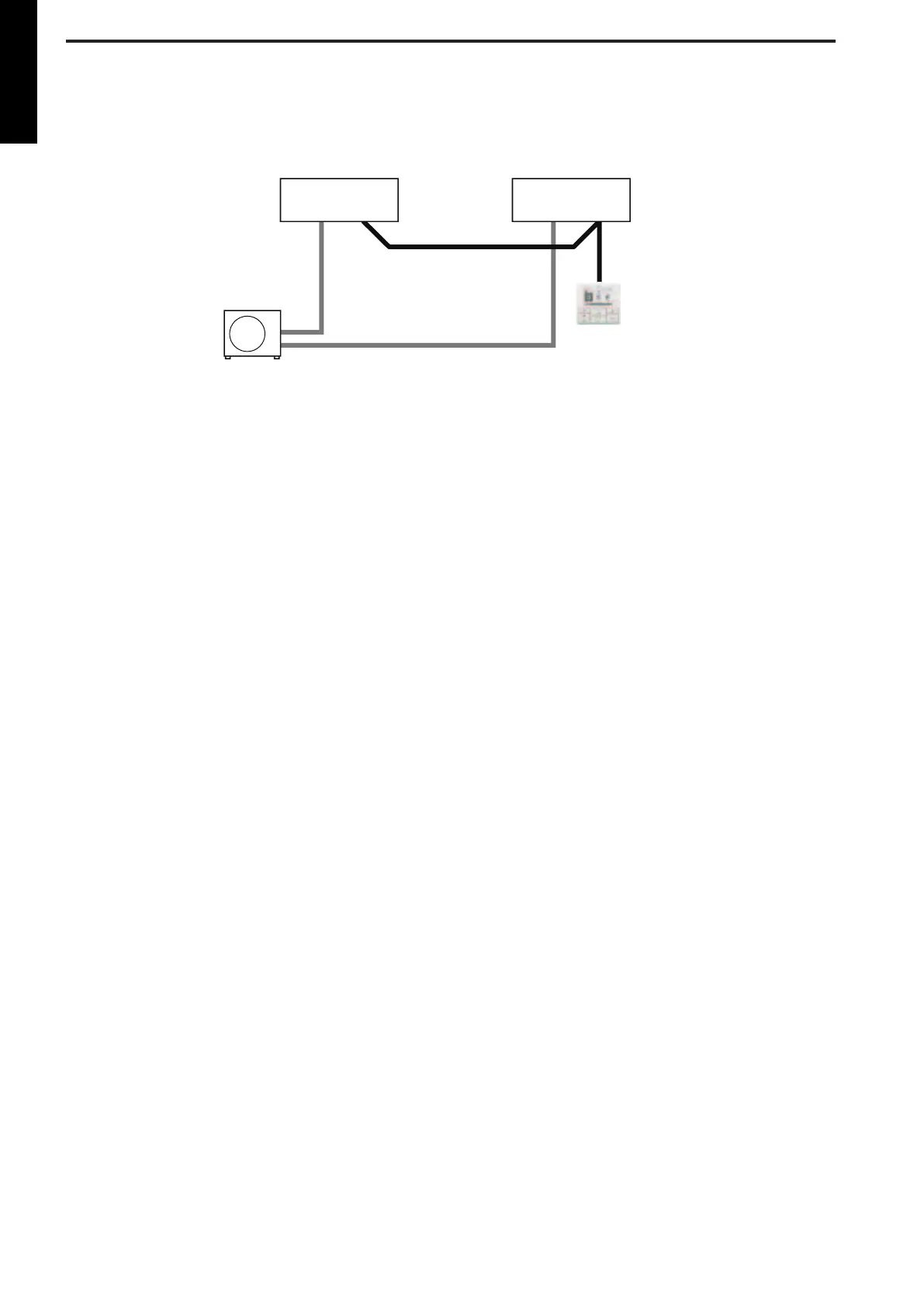

Example of group connection
Indoor unit
*Exterior of each device shown above might be different from the actual one.
NOTES:
• Group connection is applicable for multi system consists of following products that are pro-
duced in 2013 or later:
– LU/LM/LF series in wall mounted type
– Floor type
• Maximum number of connectable indoor units is depend on the outdoor unit.
• Non-polar 2-wired remote controller and Polar 3-wired remote controller cannot be connected
within same group connection.
DESIGN & TECHNICAL MANUAL
- 154 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu ASYG12LMCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	850 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Airflow	750 m³/h
Outdoor unit noise level	- dB
Indoor unit type	Wall-mountable
Indoor unit depth	204 mm
Indoor unit width	870 mm
Indoor unit height	270 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
