Fujitsu ASYG12LMCE User Manual

¢
UTY-RSNYM

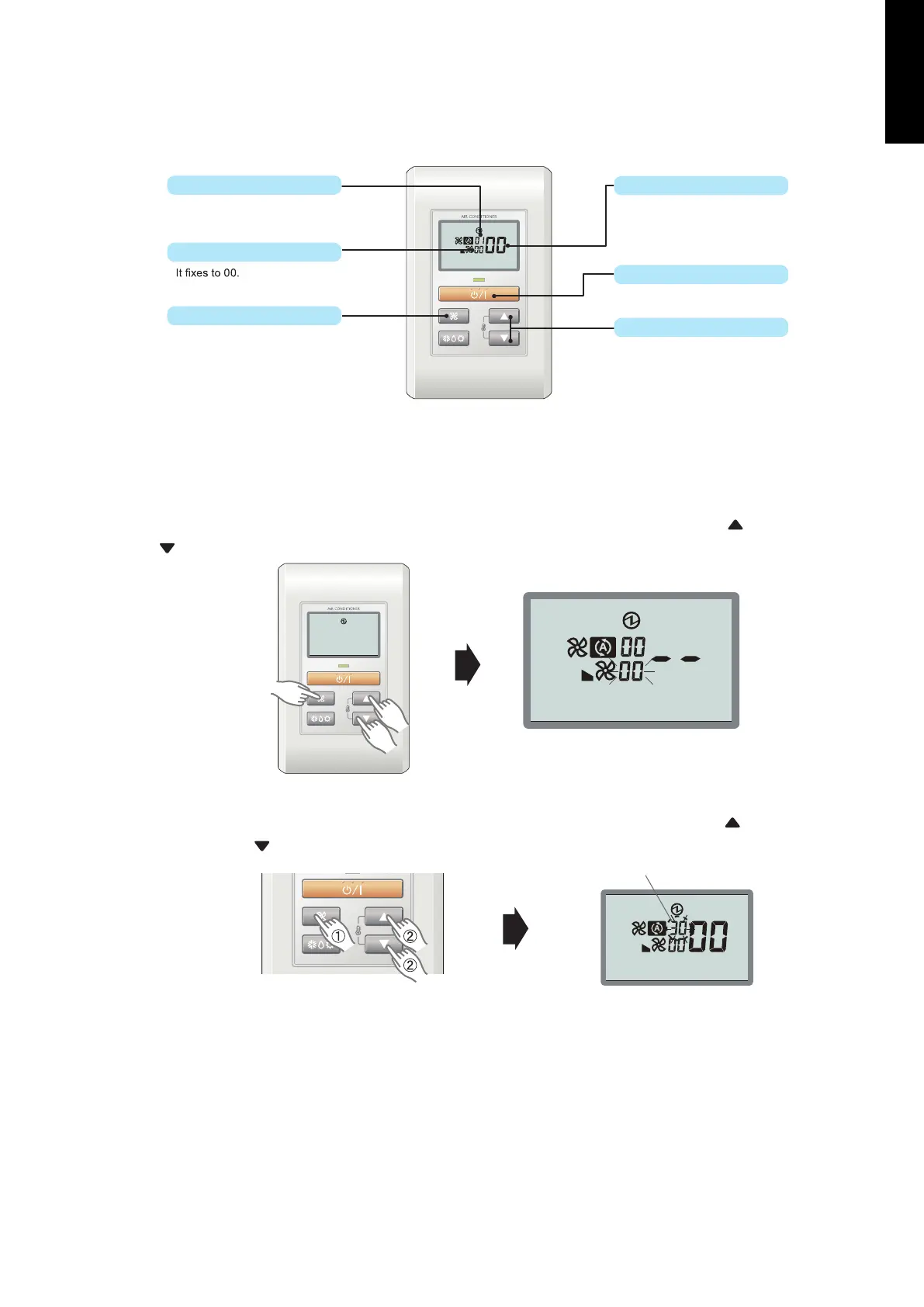

 Button name and function
During address setting mode, indoor unit reject the any operation command from remote con-
troller.
Function number
Refer to Function details
Remote controller address
FAN button
Each time this button is
pressed, the fan setting
changes among “Remote
controller address,” “Function
number” and “Setting number.”
Setting number
Refer to Function details
START/STOP button
Transmits function setting
SET TEMP. “

” and “

” button
Switches the various numbers.
 Function setting procedure
1. Connect the power supply of the outdoor unit.
2. Switch to the function setting mode.
To enter the function setting mode, hold down the 3 buttons of SET TEMP.
, SET TEMP.
and FAN at the same time for 5 seconds or longer.
Function setting mode initial display
3. Press the FAN button.
The Function number indicator flashes. Then, press either the SET TEMP. button or the
SET TEMP. button to set up the function number.
Function number
- 235 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu ASYG12LMCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	850 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Airflow	750 m³/h
Outdoor unit noise level	- dB
Indoor unit type	Wall-mountable
Indoor unit depth	204 mm
Indoor unit width	870 mm
Indoor unit height	270 mm
Indoor unit weight	8500 g
Indoor unit noise level (high speed)	43 dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Energy efficiency class (cooling)	A++
Hourly energy consumption (cooling)	- kWh
