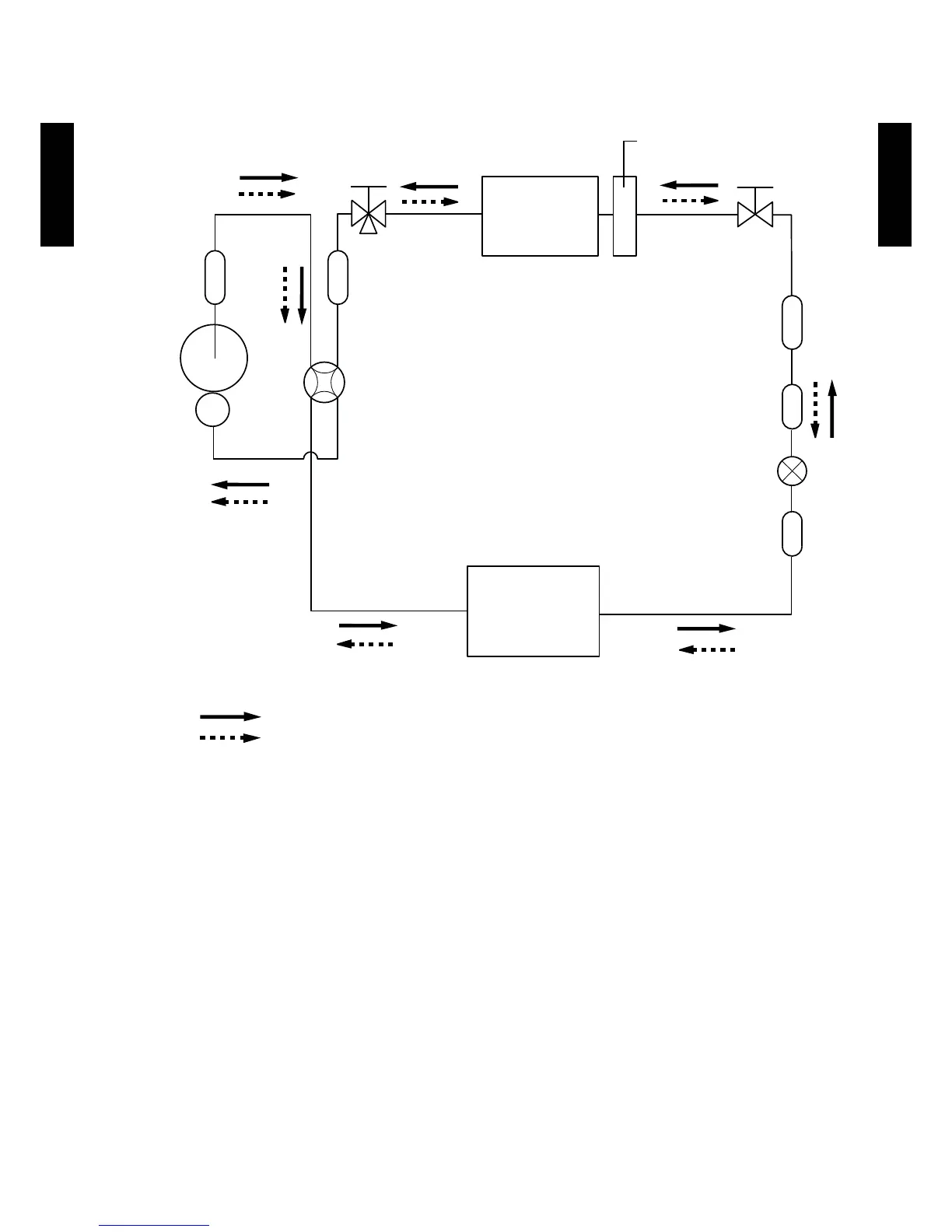

02 - 05
)
-
OUTDOOR UNIT
AO
G09-14LT
OUTDOOR UNIT
AO
G09-14LT
MODEL
:AO
G14LT
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 1/2" (12.70 mm)
Cooling
Heating
2-Way
valve
Strainer
Receiver tank
Strainer
3-Way
valve
Muffler
4-Way valve
Expansion valve
Heat exchanger Sub heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Compressor
Muffler
