02 - 04
)
-
OUTDOOR UNIT
AO
G09-14LT
OUTDOOR UNIT
AO
G09-14LT

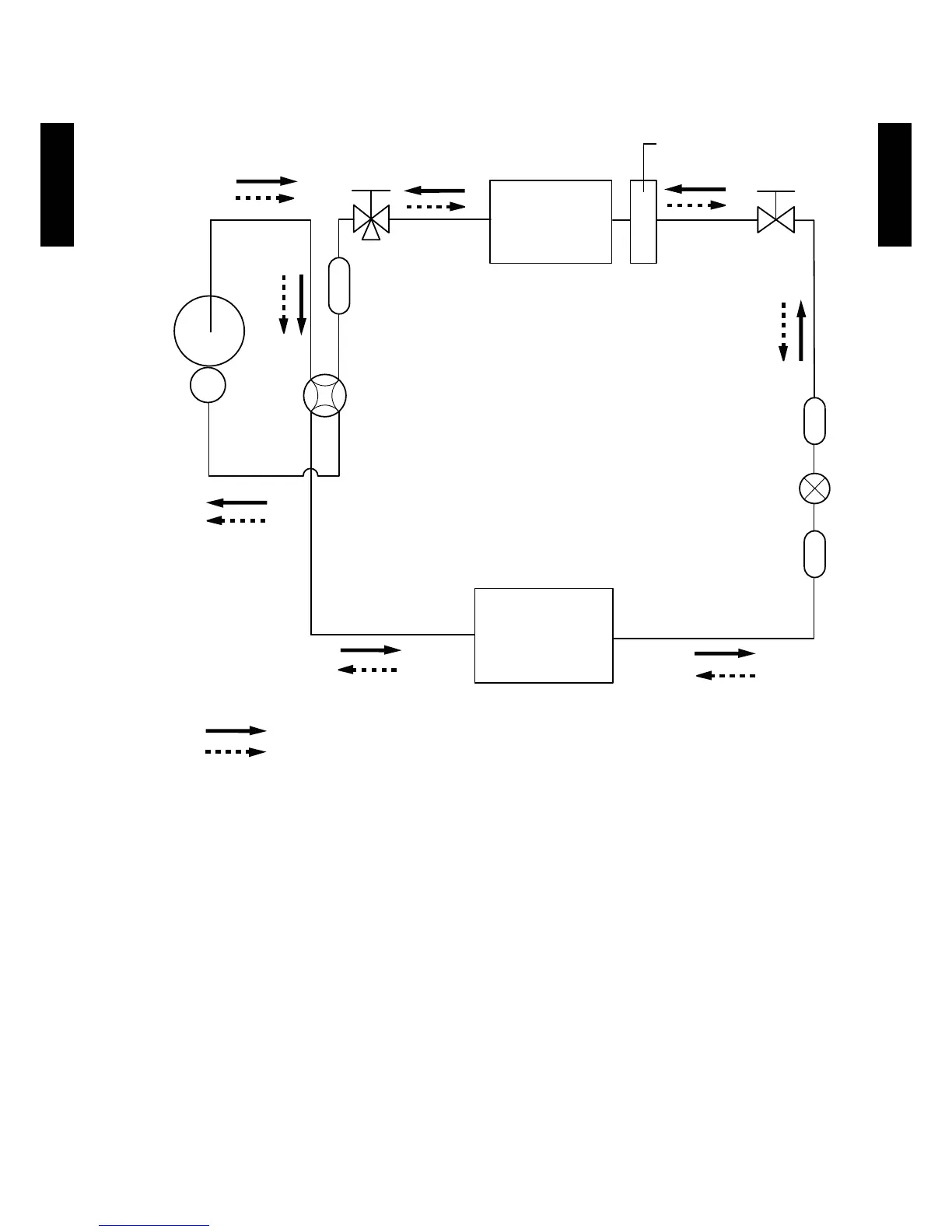

REFRIGERANT CIRCUIT3.
MODEL
:AO
G09LT, AO
G12LT
2-Way
valve
Strainer
Strainer
3-Way
valve
Muffler
4-Way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Compressor
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
Sub heat exchanger
