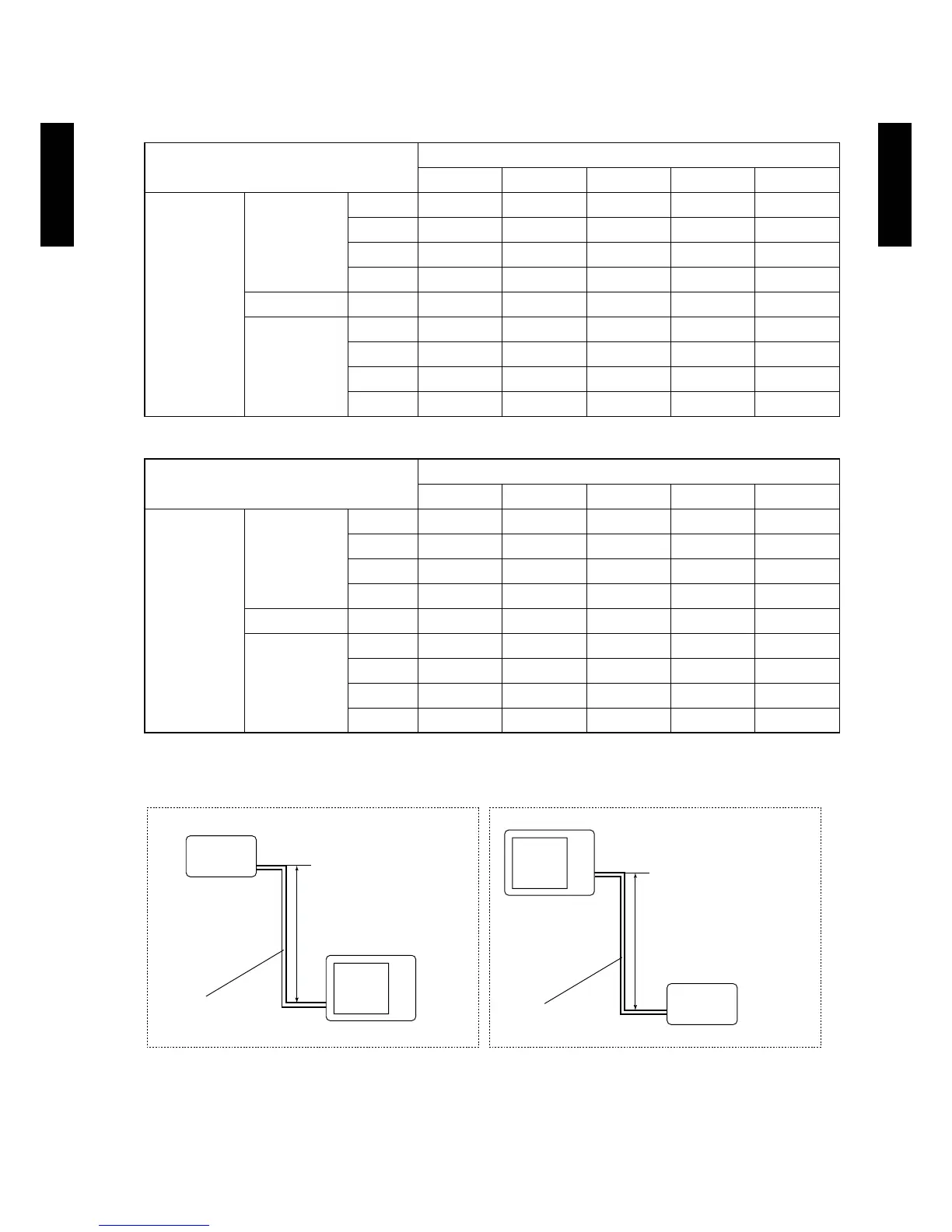

OUTDOOR UNIT AO

G09-14LT
OUTDOOR UNIT AO

G09-14LT
MODEL

:AO

G12LT
Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HEATING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
upper than
outdoor unit.
15 - - - 0.956 0.938
10 - - 1.004 0.956 0.938
7.5 - 1.013 1.004 0.956 0.938
5 1.000 1.013 1.004 0.956 0.938
0 1.000 1.013 1.004 0.956 0.938

2
Indoor unit is
under than
outdoor unit
-5 0.995 1.008 0.999 0.951 0.933
-7.5 - 1.005 0.997 0.948 0.931
-10 - - 0.994 0.946 0.929
-15 - - - 0.937 0.919
COOLING
Pipe length (m)
57.5101520
Height
difference H
(m)

1
Indoor unit is
upper than
outdoor unit.
15 - - - 0.893 0.909
10 - - 0.955 0.908 0.924
7.5 - 0.975 0.959 0.912 0.928
5 0.992 0.979 0.963 0.916 0.931
0 1.000 0.987 0.970 0.923 0.939

2
Indoor unit is
under than
outdoor unit
-5 1.000 0.987 0.970 0.923 0.939
-7.5 - 0.987 0.970 0.923 0.939
-10 - - 0.970 0.923 0.939
-15 - - - 0.923 0.939
