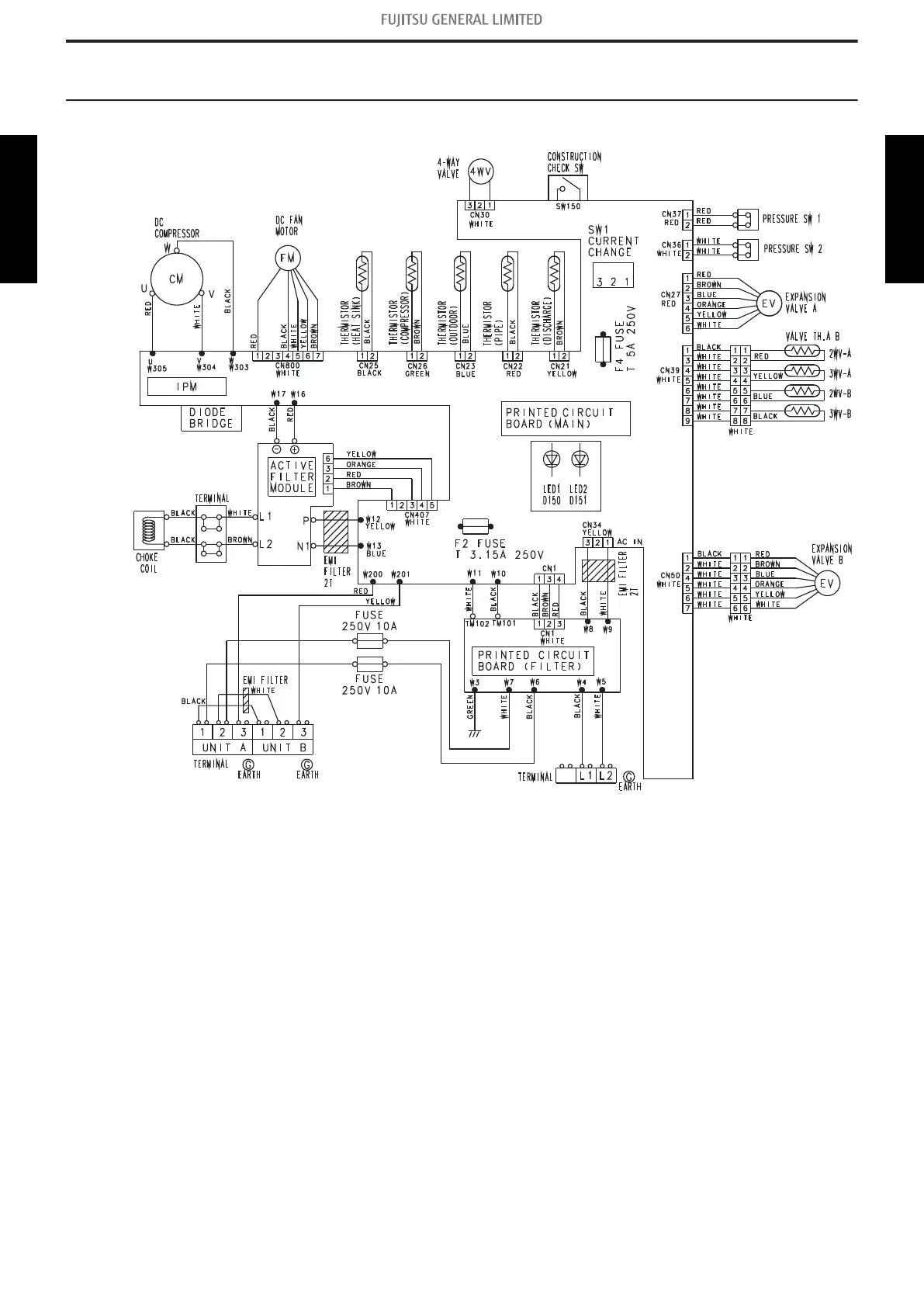

5. Wiring diagram

5-1. Model: AOU18RLXFZ

- 182 -

5-1. Model: AOU18RLXFZ 5. Wiring diagram

OUTDOOR UNIT

AOU18RLXFZ

OUTDOOR UNIT

AOU18RLXFZ
