Details of function


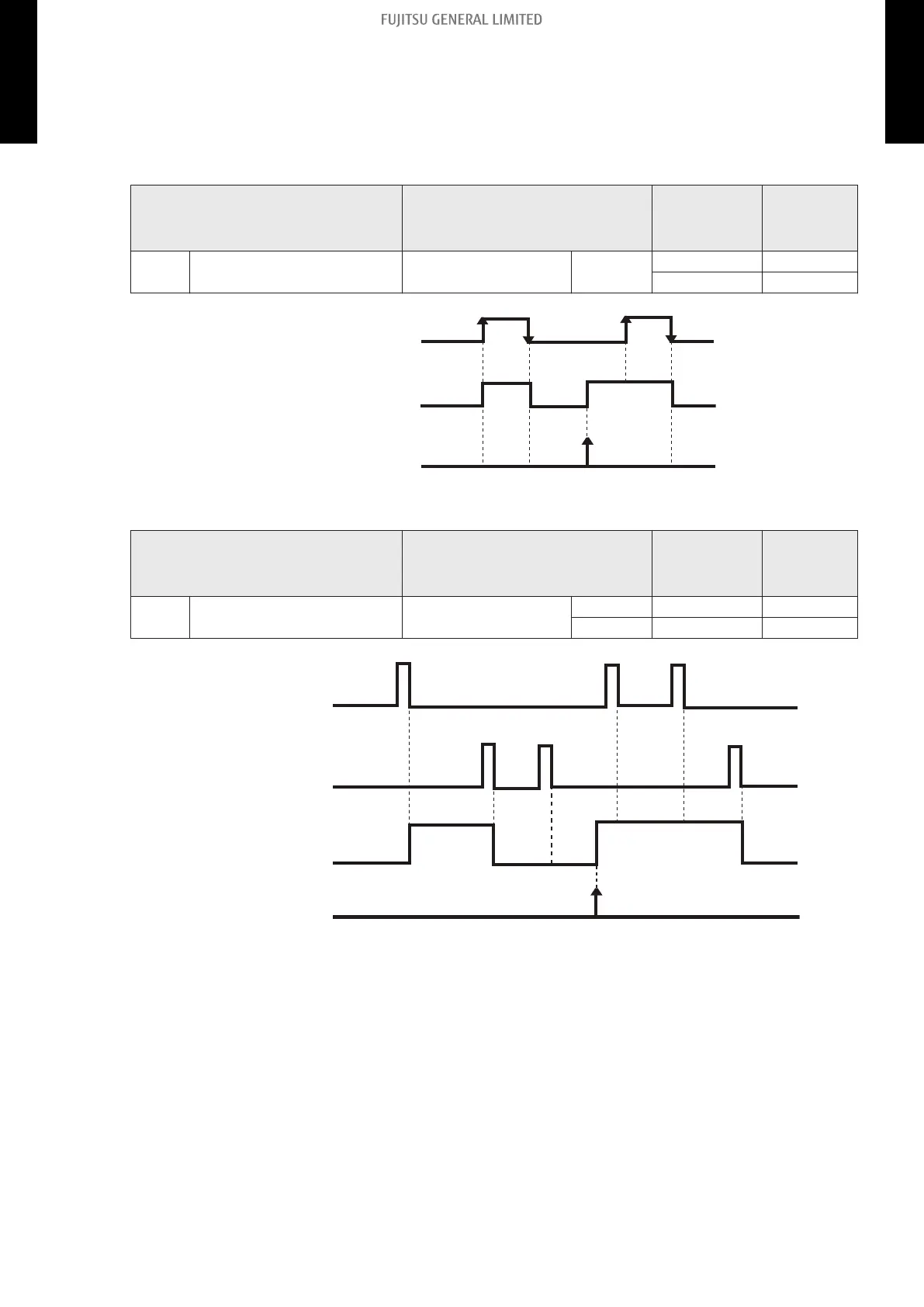

Control input function
• When function setting is "Operation/Stop" mode 1
– In the case of "Edge" input:
Function
setting /
Rotary SW on
External input and
output PCB
External input Input signal Command
46-00 60-00 / 1
External input and
output PCB
CN313
Off → On Operation
On → Off Stop
Operation
Stop
Remote controller
On
Off
Indoor unit
On
CN313
– In the case of "Pulse" input:
Function
setting /
Rotary SW on
External input and
output PCB
External input Input signal Command
46-00 60-00 / 1
External input and
output PCB
CN313 Pulse Operation
CN314 Pulse Stop
On
On
Off
Operation
Stop
Remote controller
On
Off
Indoor unit
CN313
CN314
NOTES:
• The last command has priority.
• The indoor units within the same remote controller group operates in the same mode.
- 110 -
11-2. Wall mounted type (Models: ASYG07KGTB, ASYG09KGTB, ASYG12KGTB,
ASYG14KGTB, ASYG07KETA, ASYG09KETA, ASYG12KETA, ASYG14KETA,
ASYG07KETA-B, ASYG09KETA-B, ASYG12KETA-B, and ASYG14KETA-B)
11. External input and output
