24 Thermistor holder
Wire holder
25
23
22
24
21
9375477011
23 Bellmouth 9375503017
25 Drain pan sub assy (22, 24) 9377765017
25 Drain pan sub assy (18) 9377765024
21 Wire cover 9375516017
22 Pipe cover 9375515010
Ref. Description Part number
27 Float switch sub assy 9375721046
26 Drain port sub assy 9375718015
28 Drain pump sub assy
9375717025
27
28
26

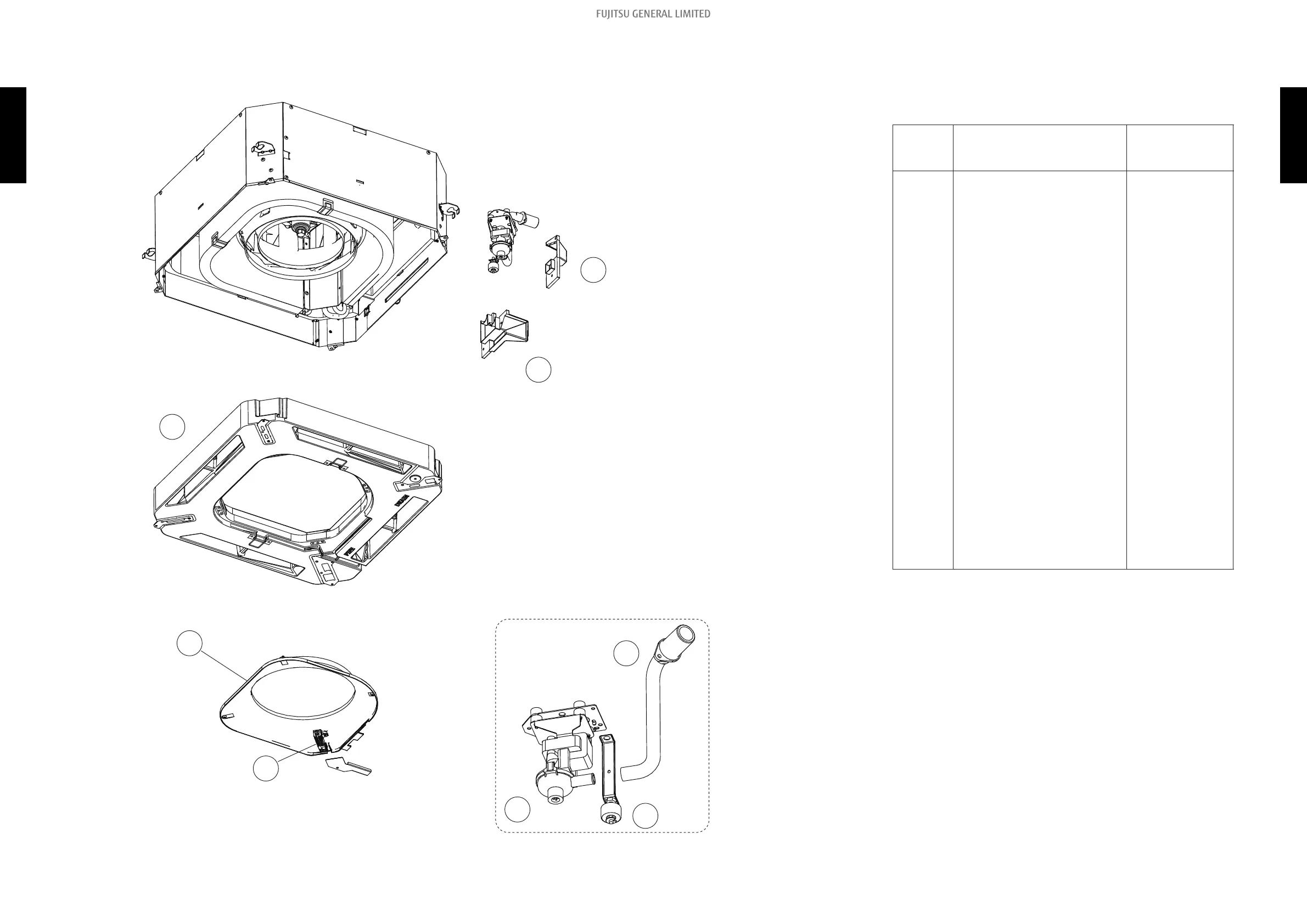

2-1. Models: AUXG09KVLA, AUXG12KVLA, AUXG14KVLA, AUXG18KVLA, and AUXG22KVLA - (02-4) - 2. Indoor unit parts list
