Brief descript ion of mainboard
Procedure
The processor socket is covered with a protective cap to protect the spring
contacts. In the event of a warranty claim, the mainboard can only be taken back
by Fujitsu Technology Solutions with the protective cap secured!
a
b
b
► Remove the h eat sink.
► Press down the lever and unhook it.
► Fold up the fra m e .

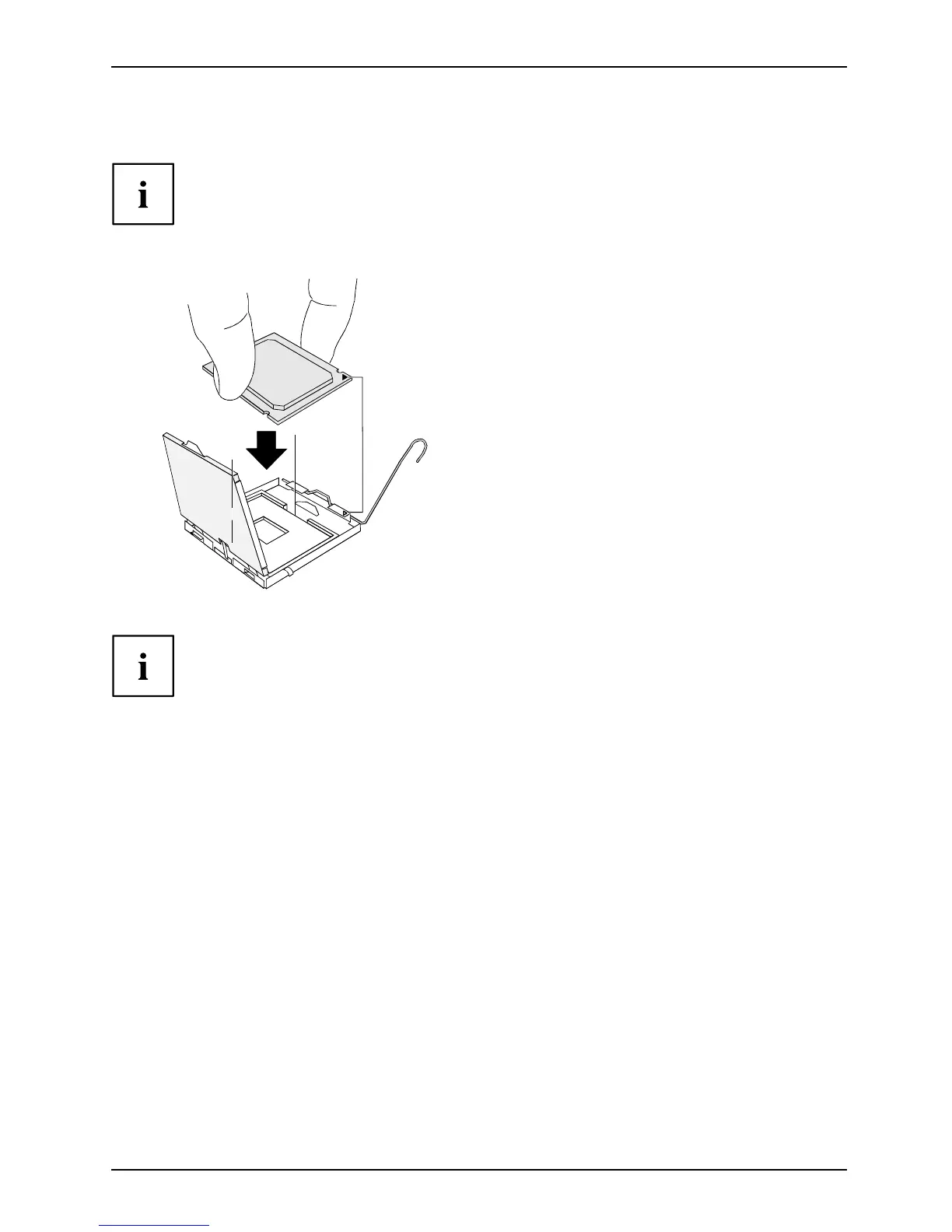

► Hold the processor between your thumb
and index finger and insert it into the socket
(b) so that the marking of the processor is
aligned with the marking on the socket (a).
► Press the lever dow nward until it is
hooked in again.
► Removetheprotectivecapandkeepit.
Please note that, depending on t he heat sink used, different heat sink
mounts are required on the mainboard.
► Depend ing on the con figuration variant, y ou must pull a prot ective foil off the h eat sink
or coat the heat sink with heat conducting paste before fitting it.
► Secu re the heat sink - depending on the m odel - with four screws or pu sh it into the mounts.
A26361-D2811-Z210-1-8N19, edition 1 English - 3
