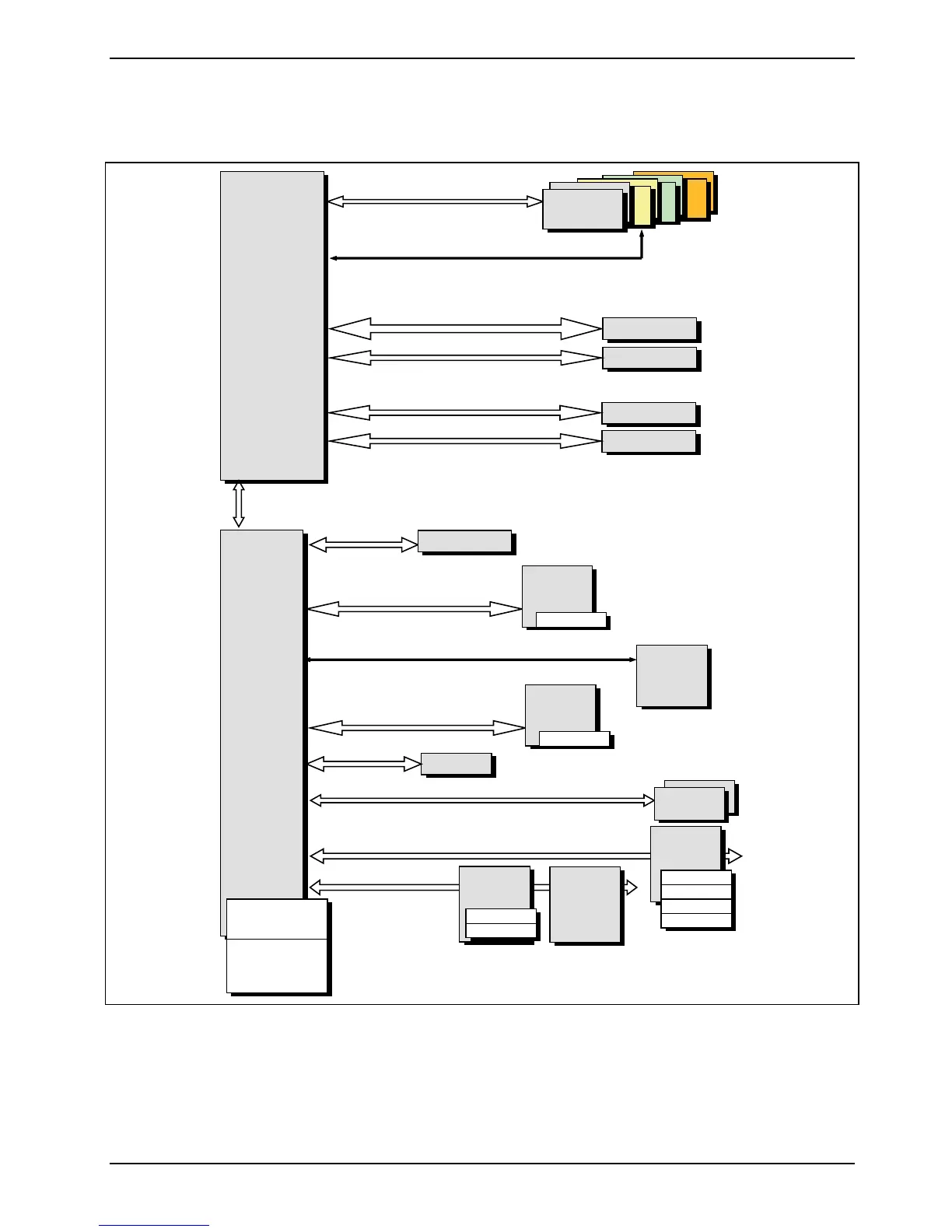

Block Diagram
SMBus
SMBus
CPU0
Socket R
Sandybridge
40xPCIe Gen3
PCH
Patsburg
14xUSB
X8 PCIe
Gen2
4xSAS3
6xSATA3
iTPM
AMT7
PCI
Gbe MAC
B: basic
D: 8xSAS
System
Thermal
Management
FTS Theseus
ESI
x4
Gen2
PCIE x16 Slot
Memory Bus
4 channels
2xSATA
4xSAS
6xUSB 2.0 rear
4xUSB 2.0 int. (2x2)
1xUSB2.0 int.
standard conn.
SPI
Flash
PCIE x1
GBit LAN0
Intel Lewisville
82579LM
RJ45
PCIE x4
PCIE x4
PCIE x 8S lot
PCIE x16
PCIE x16 Slot
PCIE x16 Slot
4x2 DDR3
1333/1600
HDA Link
HDA Audio
Conexant
CX20642
S
p
eaker
Mic in
Line in / out
Front Panel
PCIE x8 Slot
PCI-Bus
2 PCI Slot
32Bit / 33MHz
PCIE x4
PCIE x16
LPC-Bus Super I/O
SMSC
SCH5636
1 x Serial int.
2 x PS2
Trusted
Platform
Module
SLB9635
PCIE x1
USB 3.0
TI TUSB7320
Int. USB 3.0
The above picture is purely representative. Due to engineering updates and new board revisions,
certain components may change and or be repositioned. The picture above may or may not look
exactly like the board you received.
The following page includes details on the vital components of this motherboard.
