Interfaces and connectors
The location of the inte rfaces and connectors of your mainboard is specified
at the beginning of the manual.
The c omponents and con nectors marked are not necessarily presen t on the mainboard.
External p orts
The location of the external con nections of your mainboard is specified at the beginning of the manual.

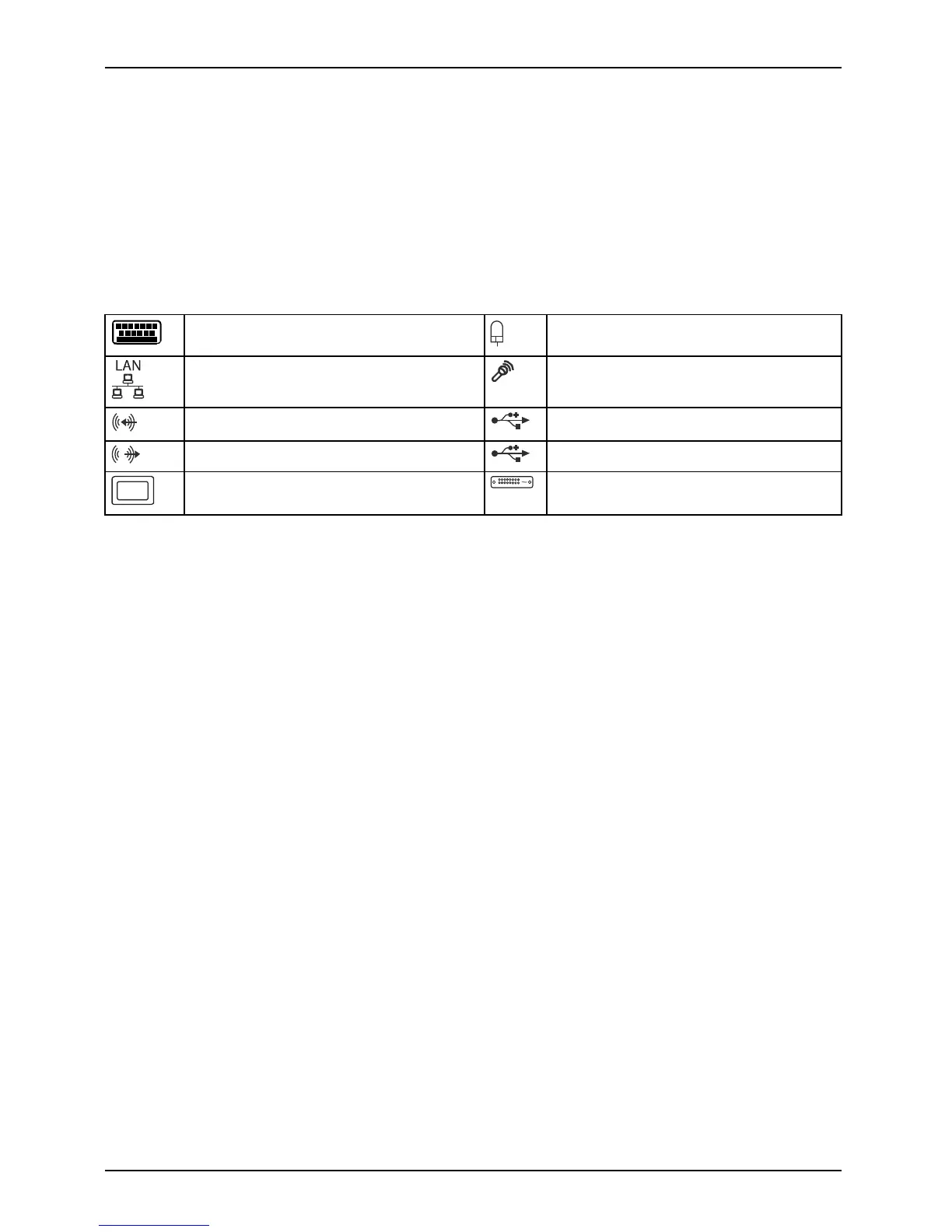

PS/2 keyboard port, pu rple PS/2 mouse port, green
LAN port (RJ-45) Microphone jack (mono), pink
Audio input (Line in), light blue USB 2.0 – Universal Serial Bus, black
Audio output (Line out), light green USB 3.0 – Universal Serial Bus, blue
VGA, blue
DVI – D
