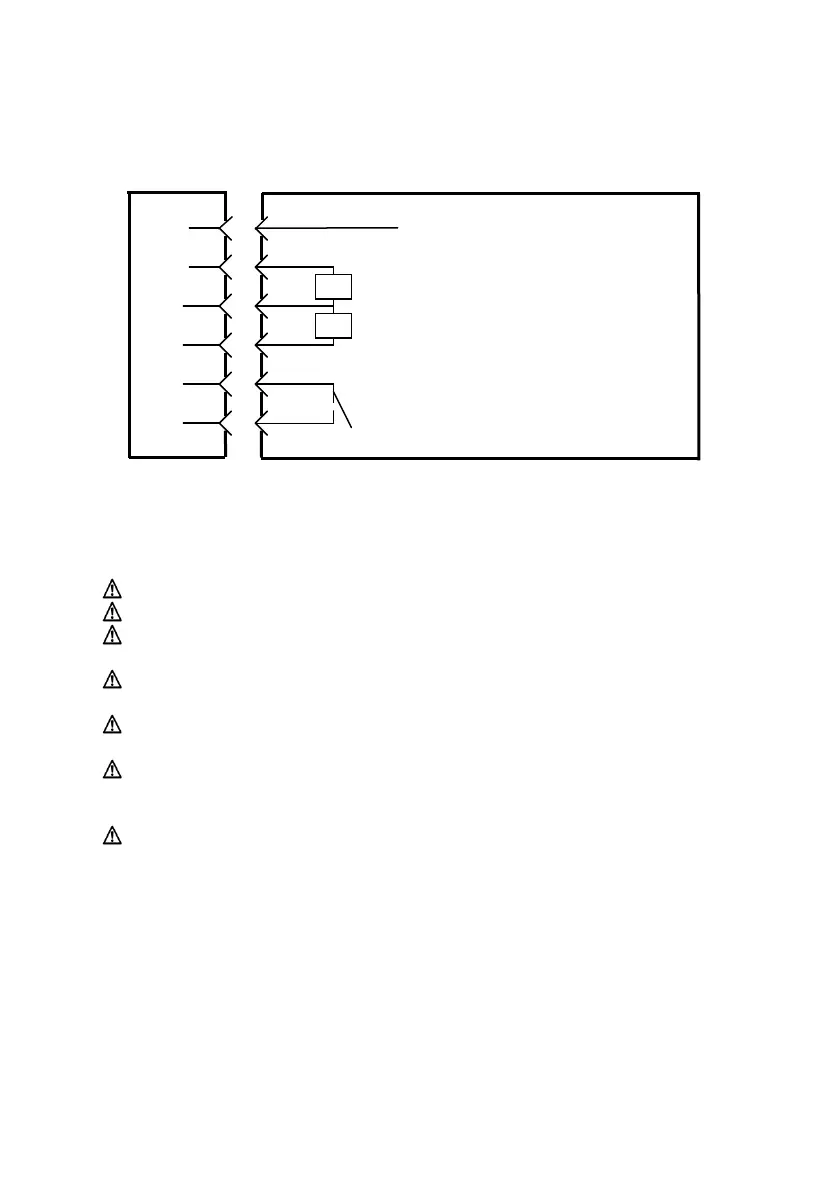

Caution: Use a shielded drawer cable.
Caution: Two drives cannot be driven simultaneously.
Caution: The drawer on/off time must be specified using t1 and t2 in the
pulse generation command (ESC p m t1 t2).
Caution: The drawer drive duty must be as follows:
ON-time/(ON-time + OFF-time) ≤ 0.2
Caution: The drawer power must always be supplied from the printer
power supply unit via connector pin 4.
Caution: The resistance of the drawer kick solenoid must be at least 24Ω.
If a solenoid with a lower resistance is used, the solenoid might
be destroyed by over current.
Caution: This product uses a modular connector as a dedicated connector
for the cash drawer. The connector must not be connected with a
connector that leads to a public switched line or other such
destination.
