B-9.Specifications of Power Supply
(1)Operating voltage : 24V ±10%
(2)Operating current : 1.5A
(3)Power consumption : During standby: 4.5W or less/0.2A
During operation: Average 44W/1.5A
(at 25°C, print density setting 100%, paper width
80mm, print duty 9%)
Note:
Maximum drawer kick drive current: 1A
Two drawer kicks must not be driven simultaneously.

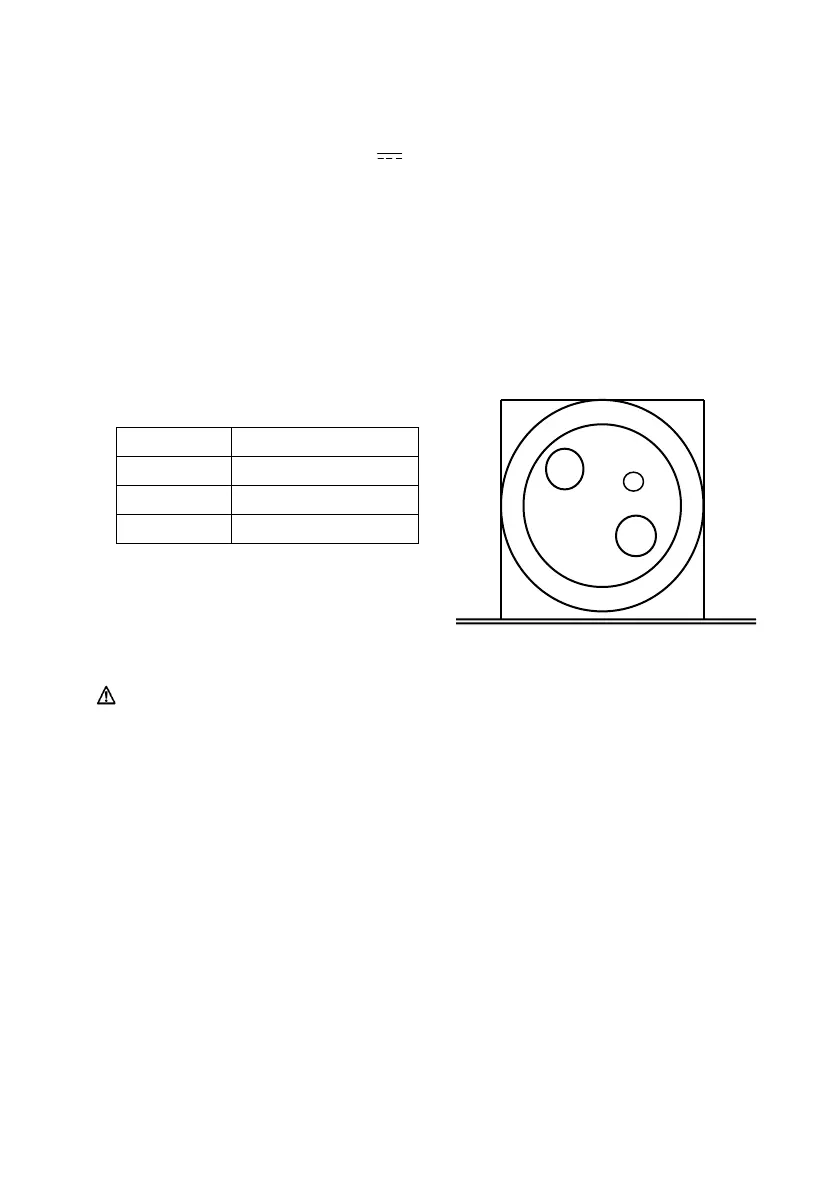

Arrangement of power connector pins
Pin No.
Signal name
1
+24 V
2
SG
3
N.C
Warning: Use the specified AC adapter for the power supply.
(When not using our AC adapter, there is a risk of fire damage or
electric shock. There may also be defects in regard to print
quality, radio waves or noise etc., so do not use such adapters.)
