2 Overall view of the installation
Your heat pump has been configured by your
installer. It is composed of the following main
elements:
-
The outside unit is positioned, as its name
indicates, outside your dwelling and extracts
energy from the outside air.
-
The hydraulic unit positioned in your boiler room,
cellar, garage or even your kitchen, transfers the
energy to the heating circuit (and the domestic hot
water).
-
T h e o u td o or s en so r d e te ct s t h e o u ts i d e
temperature.
Optional equipment:
-
Room thermostat
-
Remote control
Heat pumps are systems that can be connected to
any form of low temperature heat distribution
systems: the heat captured by the heat pump can
therefore be used in different ways:
-
Floor-heating systems
-
Radiators or warm fan coil heaters
-
Domestic hot water (DHW)
Instruction manual “1353-EN” 5
Heat pump, split, single service
or
Theoutsideunit
Thehydraulicunit
Heatingcircuit
Radiatorsor
fanconvectors
Heatingcircuit
Floorheatingsystem
or/and
Room
thermostat
Remote
control
Controloptions
Options
depending
onthesystem
configurations
2ndcircuitkit
Outdoor
sensor
DHWtank
(withelectrical
back-upheating)
DHWkit
Boiler
connexionkit

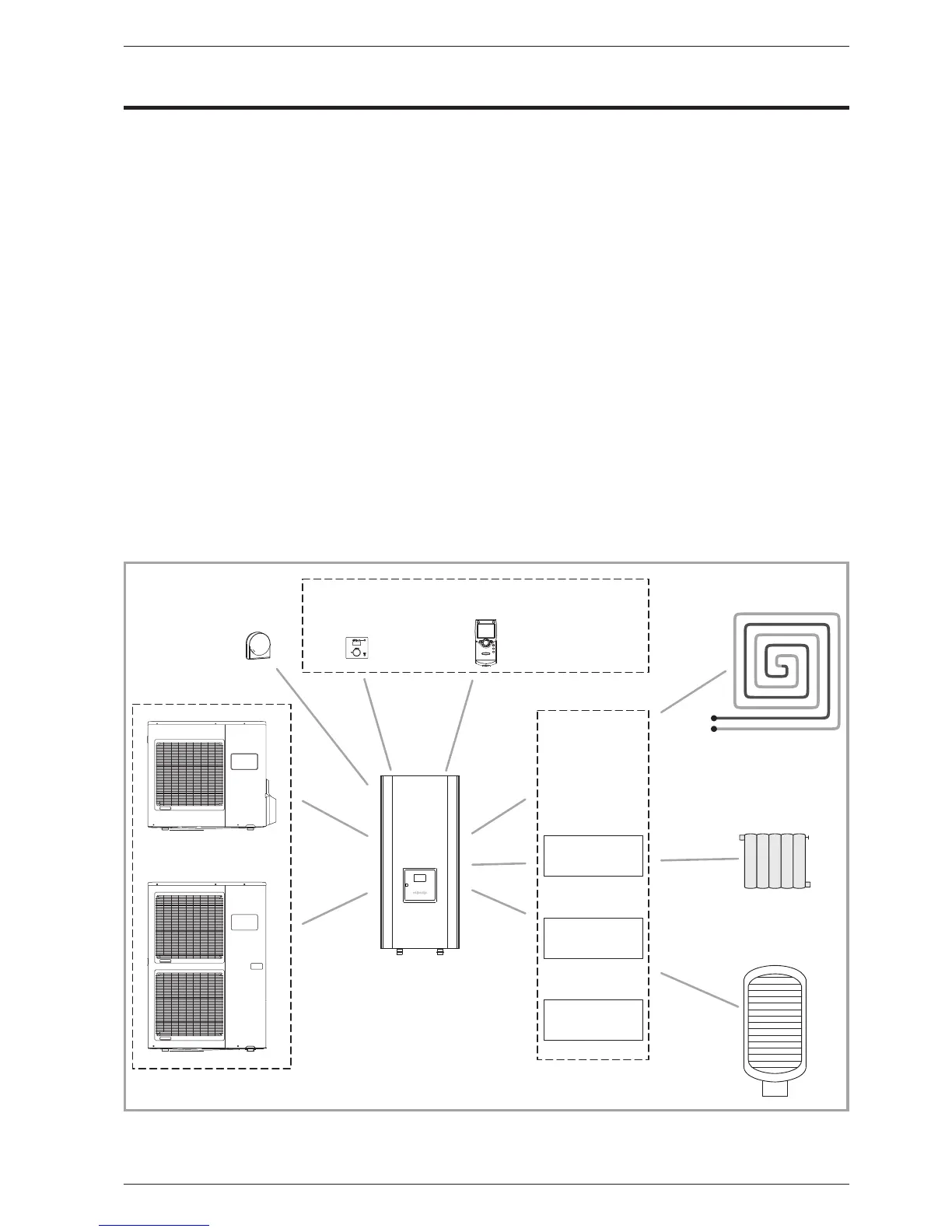

Figure 1 - Overall view of the configuration of a complete installation
