1BEFOREUSES
DIGITAL TELEPHONE CONTROLS AND INDICATORS
＜FC782PAandFC782PB ＞
■ Face
Please see ＜FC782D ＞ .
FC782PA
FC782PA : DP/PB switch
FC782PB : P/MP switch
DP/PB Please set up the following switch
switch pursuant to analog network's contract
for the power outage.
(default：DP )

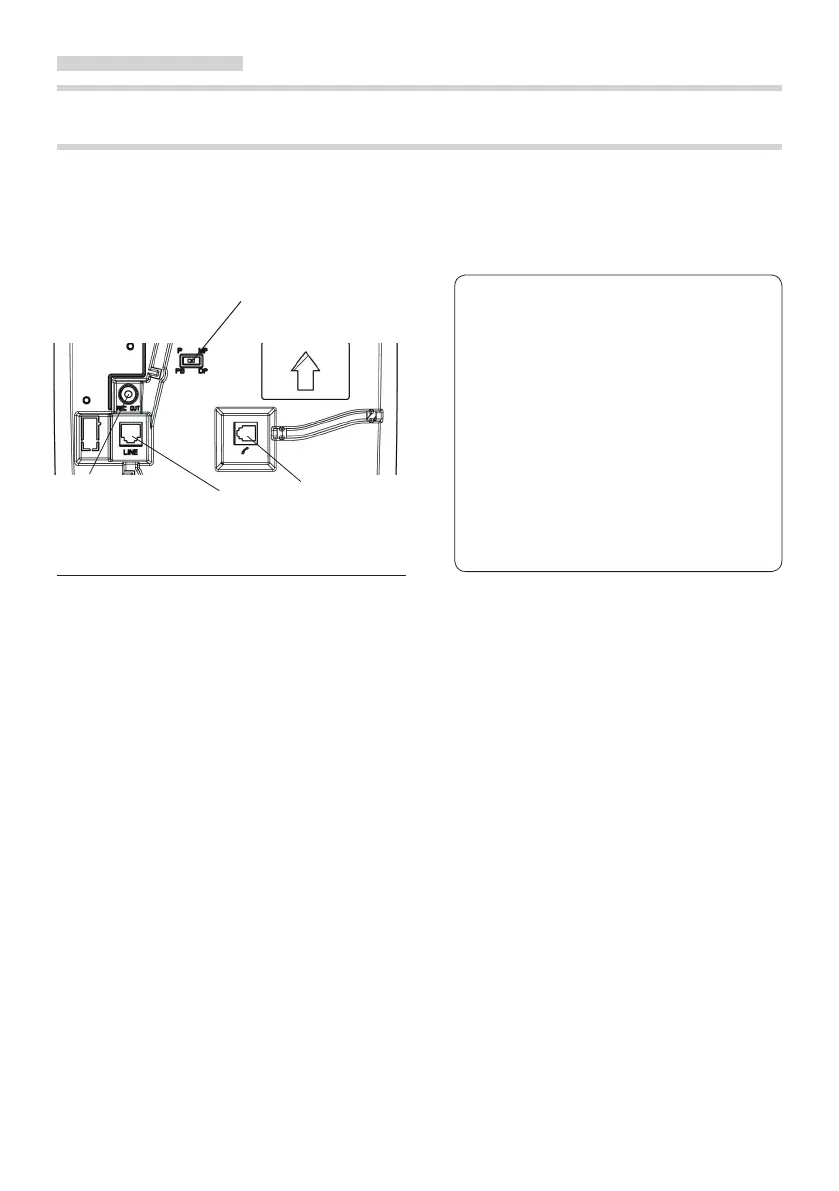

■ Bottom
◆ DP：Analog sending signal 20pps
◆ PB：Analog sending signal PB
FC782PB
P/MP Please set up the following switch
switch pursuant to INS network's contract
R
ecording jack
for the power outage.
Line code
Handset code
(default：MP )
◆ MP: Point to Multi Point
a
lways-on / call-by-call
◆ P: Point to Point
FC782PA/PB'sbehaveinpoweroutage
■ FC782PA and FC782PB
・During the power outage, functions (display, extension to extension calls, etc.) other than making calls
a
nd answering calls cannot be used.
・About FC782PA/PB's behave in the power outage during the call.
【When the power is lost】
If the power is lost during the call, the call will be broken. After a few seconds, you can hear the
dial tone of the analog / INS network.
【When the power is restored from the power outage】
If the power is restored during the call, the call will be disconnected.
A
fter several tens of seconds, you can hear the internal dial tone.
・The call waiting service etc. of the analog/INS network cannot be used during power outage.
■ Only FC782PB
・Please set up following switch pursuant to INS network's contract for the power outage.
◆ MP : Point to Multi Point always-on / call-by-call (default)
◆ P : Point to Point
P/MP swicth's con󲥬guration becomes effective if you reactivate the telephone after you change it during
power recovery.
P
/MP switch's con󲥬guration doesn't become effective if you change it during power outage, or after you
reactivate the telephone.
・The line length from DSU to FC782PB (via PBX) is 300 metre ( φ 0.5 cable). One INS network line can
c
onnect only one FC782PB.
