Removing and inst alling components
during servicing
Installing a memory module
2
a
1

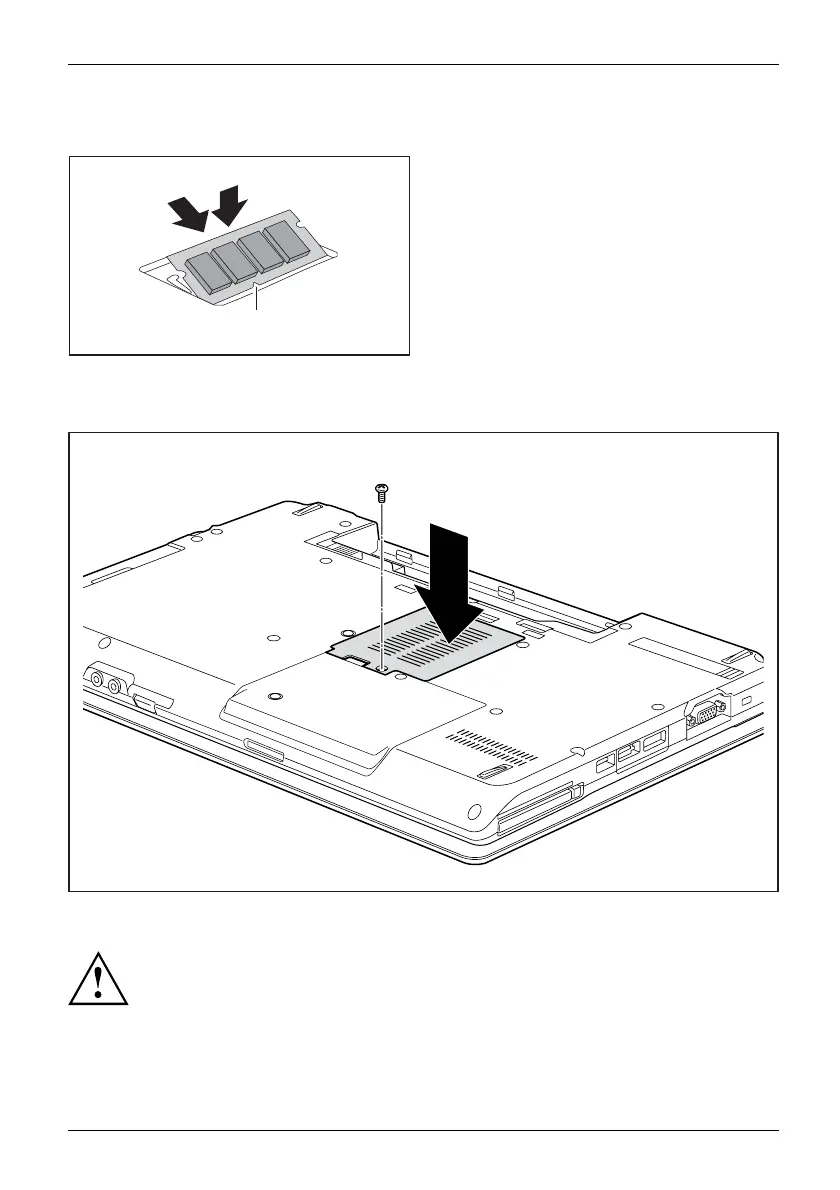

► Insert the memory module with the contacts
and the recess (a) facing the slot (1).
MemoryexpansionMemorymodule
► Carefully push the memory module
downwards until you feel it click
into place (2).
Attaching the cover
2
1
► Place the cover in the correct slot (1 ).
If you remove more than one component at the same time, keep the screws for the
individual components s eparate from each other and make sure tha t you use the correct
screws. If you install the wrong screws, components may be damaged.
► Tighten the screw (2).
Fujitsu Technology Solutions 71
