Getting to Know Your Tablet PC

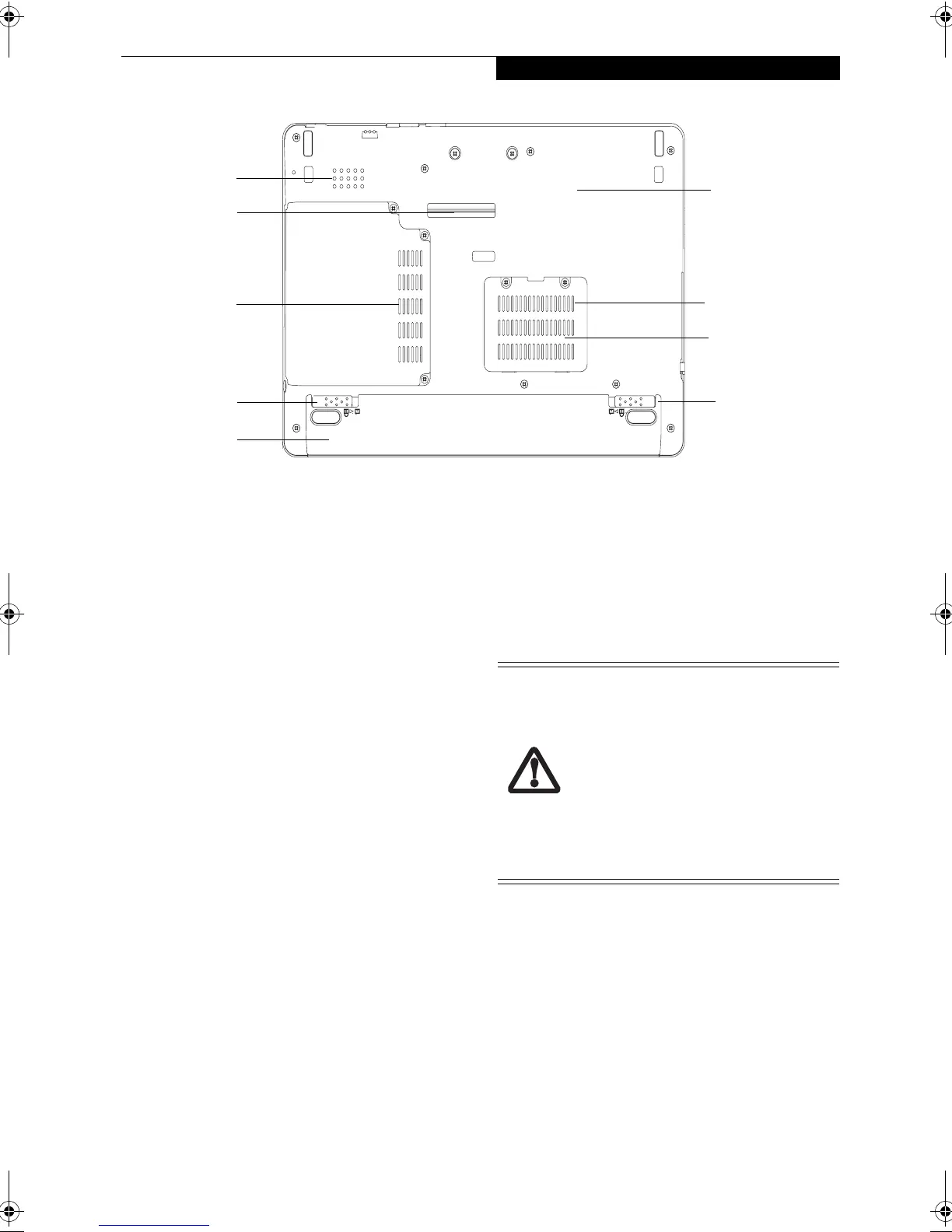

Figure 2-8. LifeBook P Series notebook bottom panel
BOTTOM COMPONENTS
Following is a brief description of your notebook’s
bottom panel components. (Figure 2-8)
Lithium ion Battery Compartment
The battery compartment contains the internal Lithium
ion battery. The battery should be removed when the
computer is stored over a long period of time or for
swapping a discharged battery with a charged Lithium
ion battery. See “Lithium ion Battery” on page 37.
Port Replicator Connector
This connector allows you to connect the optional port
replicator.
Speaker
The speaker allows you to listen to sound from your
system.
Main Unit and Configuration Label
The configuration label shows the model number and
other information about your LifeBook P Series note-
book. In addition, the configuration portion of the label
has the serial number and manufacturer information
that you will need to give your support representative. It
identifies the exact version of various components of
your notebook.
Memory Upgrade Compartment
Your notebook comes with high speed DDR2 Synchro-
nous Dynamic RAM (SDRAM). The memory upgrade
compartment allows you to expand the system memory
capacity of your notebook, hence improving overall
performance. See “Memory Upgrade Module” on
page 39.
Air Vents
The air vents allow proper air circulation to ensure that
the notebook does not overheat
.
Memory
Lithium ion
Battery
Main Unit and
Configuration
Label (approximate
Battery
Port Replicator
Connector
location)
Pack
Latch
Battery
Pack
Latch
Upgrade
Compartment
Speaker
Air Vents
Air Vents
To protect your notebook from damage
and to optimize system performance, be
sure to keep all air all vents unobstructed,
clean, and clear of debris. This may
require periodic cleaning, depending upon
the environment in which the system is
used.
Do not operate the notebook in areas
where the air vents can be obstructed,
such as in tight enclosures or on soft
surfaces like a bed or cushion.
