Port Replicator
The port replicator extends the functionality of your LIFEBOOK notebook by providing ports to connect
an external VGA monitor, a LAN (RJ-45) cable, four USB 2.0 devices, a DVI-D device, an eSATA device,
a parallel device, a serial device, headphones, and DC power.
The port replicator connects to the bottom of your LIFEBOOK notebook.

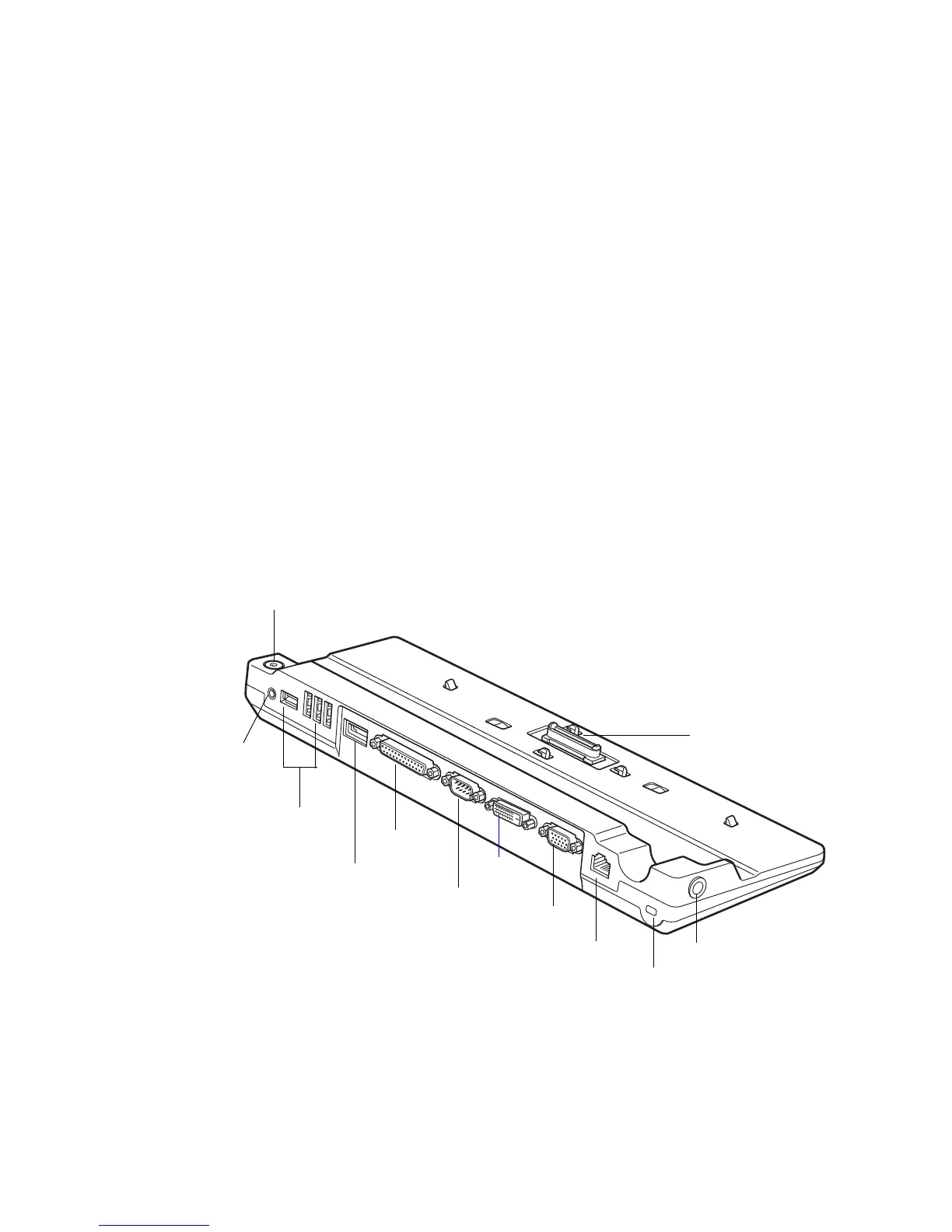

Figure 40. Port Replicator - Rear
Docking Connector
DC Power Jack
Security Lock Slot
Headphone
LAN (RJ-45)
Serial Port
USB 2.0 Ports
External VGA Port
Power Button
Audio Out
Jack
(Qty. 4)
eSATA Port
Parallel Port
DVI-D
Port
