Fujitsu P2410 TS CAM User Manual

Technical specification

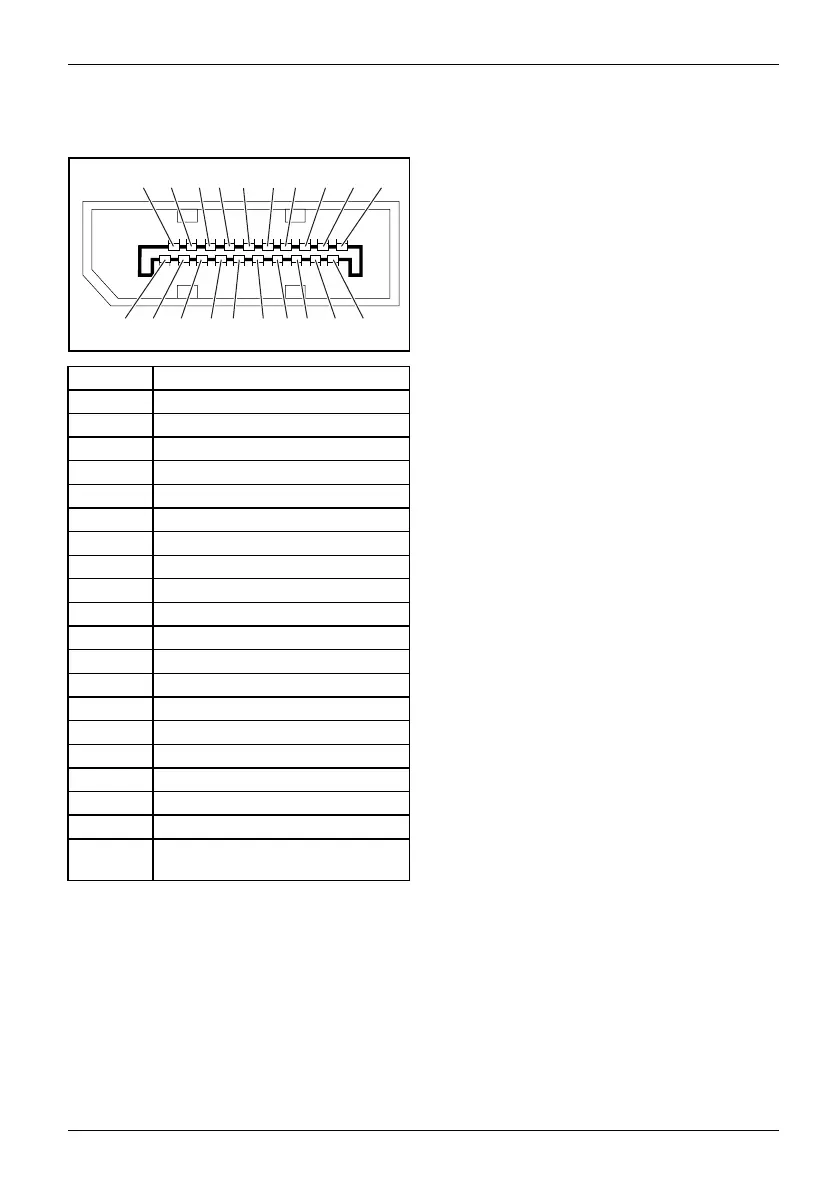

Displayport socket
1319 17 15 13 11 9 7 5
2420 19 16 14 12 10 8 6
Pin Meaning
1
Lane 3 (negative)
2Earth
3
Lane 3 (positive)
4
Lane 2 (negative)
5
Earth
6
Lane 2 (positive
)
7
Lane 1 (negative)
8Earth
9
Lane 1 (positive)
10
Lane 0 (nega
tive)
11 Earth
12
Lane 0 (positive)
13
Connected to earth
14
Connect
ed to earth
15
Auxiliary channel (positive)
16 Earth
17
Auxiliary channel (negative)
18 Hot Plug Detect
19
Ret
urn for Power
20
Power for connector
(3.3 V 500 mA)
Fujitsu 73

Fujitsu P2410 TS CAM Specifications

General

Brand	Fujitsu
Model	P2410 TS CAM
Category	Monitor
Language	English
