Brocade 5450 Embedded Switch Module QuickStart Guide 13 of 20
Publication Number: 53-1001265-02
1. Click Connection Blades Status in the middle pane to expand the list.

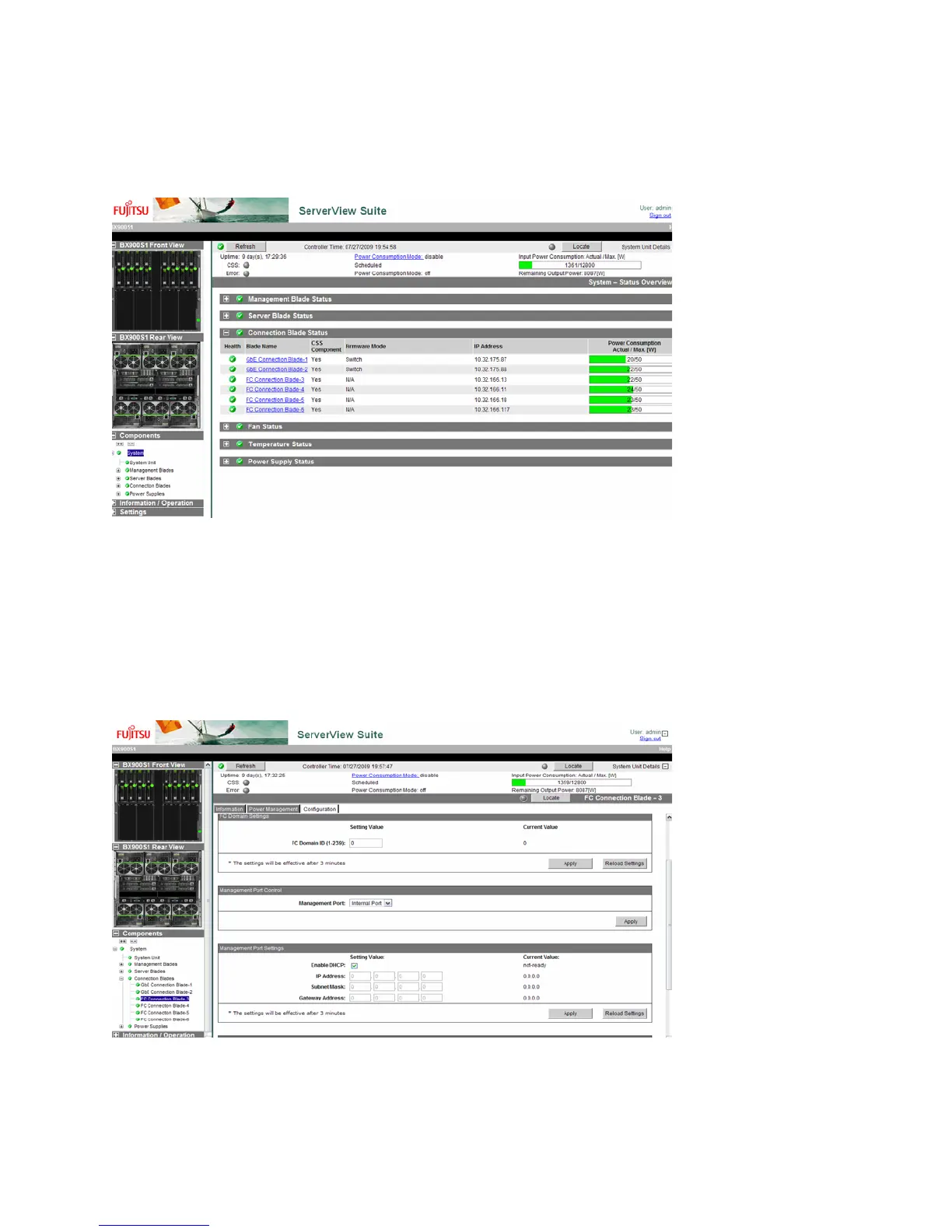

The current FC connection blade information, shown in Figure 6, displays.
FIGURE 6 PRIMERGY BX900 Management Blade application connection blade status
2. Select the FC connection blade from the Connection Blades Status list, shown in Figure 6.
Information for the selected FC connection blade displays in the middle pane.
3. Click the Configuration tab in the middle pane.
The Configuration dialog box displays.
4. Scroll down to the Management Port Settings section, shown in Figure 7.
FIGURE 7 PRIMERGY BX900 Management Blade application - Service Port Settings
