60 Operating Manual RX2520 M4
5.4.1 Using the cable clamp (AC PSU)
You can secure the power cords in a cable clamp to ensure that the insulated
connectors cannot be disconnected from the server accidentally. The cable
clamp is included in the accessories pack that is delivered together with the
server.

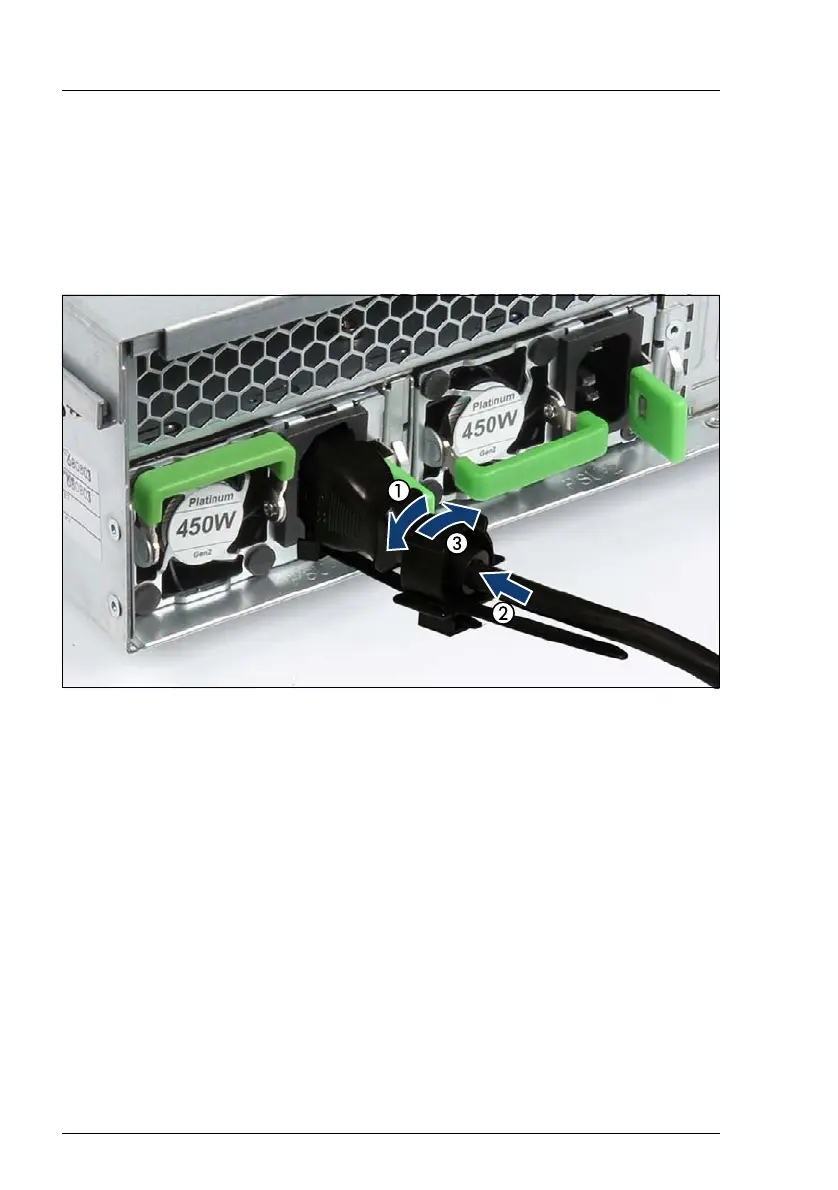

Figure 10: Cable clamp
Ê Pull the cable clamp up (1).
Ê Thread the power cord through the cable clamp (2).
Ê Press the cable clamp down until it engages to secure the cable (3).
