Hardware installation
5.3 Connecting devices to the server
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the "FUJITSU Server PRIMERGY
RX2520 M4 Server Upgrade and Maintenance Manual".
I Some of the devices that can be connected may require the installation
and setting up of special software (e.g. drivers) (see the documentation
for the connected device).

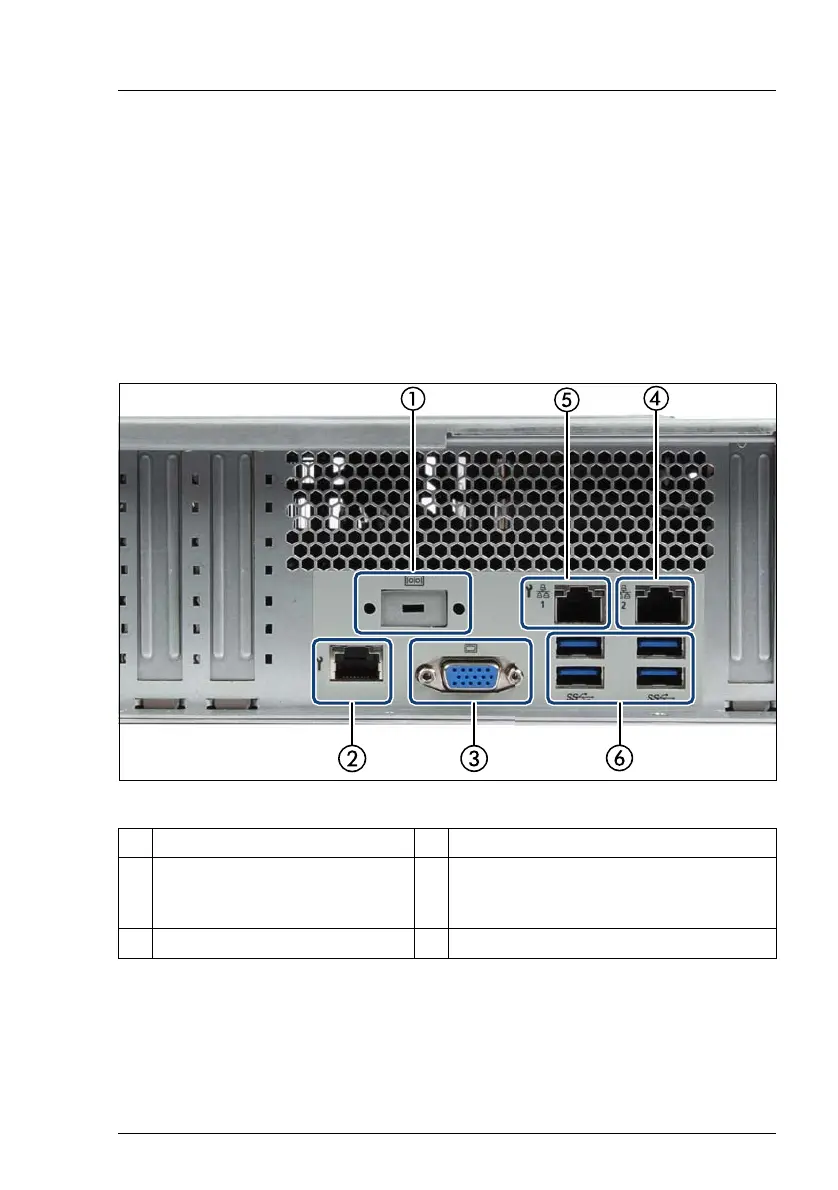

Figure 2: Connection panel on the rear
Ê Connect the desired devices to the server.
1 COM1 connector (optional)
1
1
The serial interface COM1 can be used as the standard interface or for communication with
iRMC.
4 LAN connector (LAN2)
2 Management LAN connector (for
iRMC S5 server management
function)
5 Shared LAN connector (LAN1)
3 Video connector (VGA) 6 4x USB 3.0 connector
